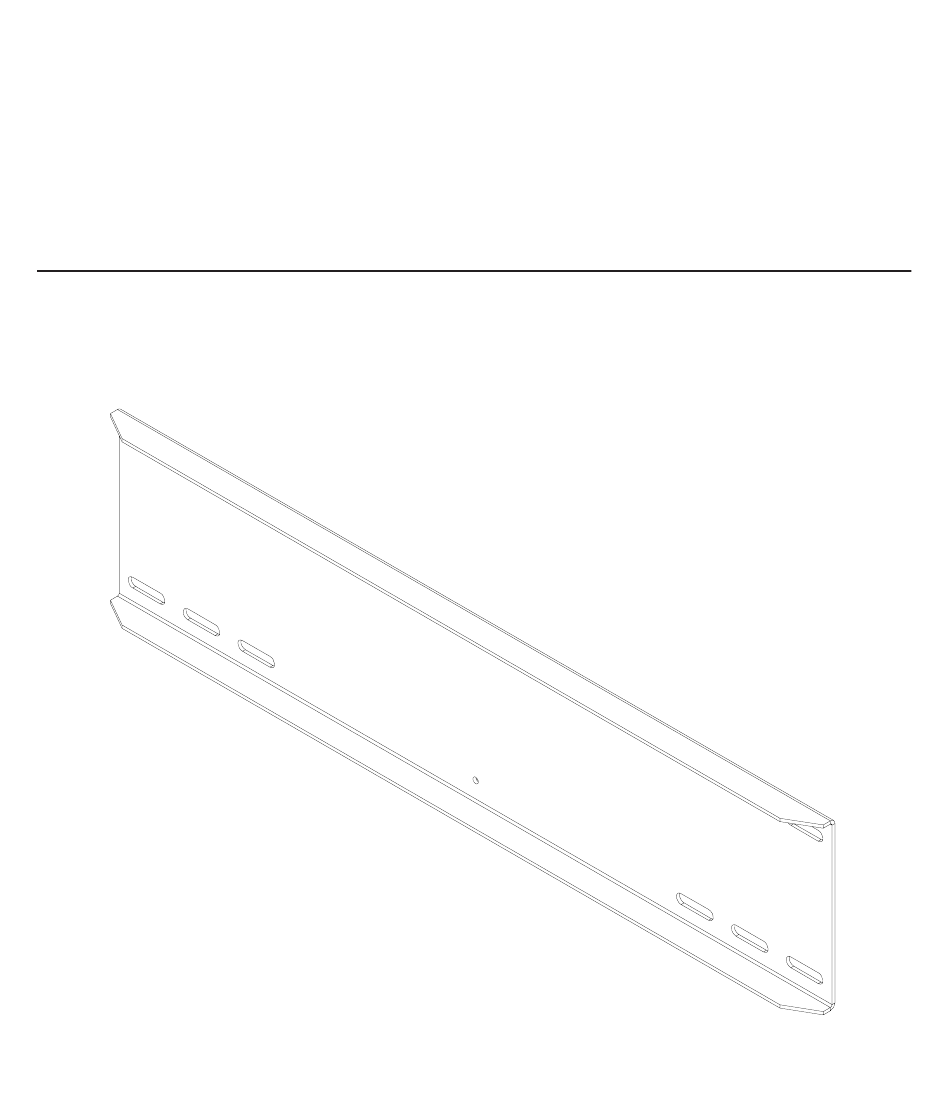

- Page 1 Installation and Assembly: External Wall Plate Model: WSP 490, WSP 490-S Max Load Capacity: 80 lb (36.3 kg)
- Page 2 Note: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-729-0307.
- Page 3 Parts List WSP 490 WSP 490-S Description Qty. Part # Part # A wall plate 024-1041 024-2041 B 1/4-20 x .5" flat head phillips screw 520-1209 520-2178 C toggler 560-9708 560-9708 D 1/4-20 x 2.5" phillips screw 520-9521 520-9522 E washer...
- Page 4 WARNING • Make sure that mounting screws are anchored into the center of the studs. The use of an "edge to edge" stud finder is highly recommended. Note: Wall plate (A) can be mounted on 24", 20", or 16" centers. Using a stud finder, locate and mark the edges of the metal stud used in mounting this product.
- Page 5 WARNING • Make sure that the supporting surface will safely support the combined load of the equipment and all attached hardware and components. Attach wall plate (A) to togglers (C) with 1/4-20 x 2.5" flat head phillips screws (D), and washers (E).
