Assembly Instructions - External Wall Plate
IMPORTANT!
Read entire instruction sheet
before you start installation and assembly.
WARNING
• Wall or mounting structure must be capable of sup-
porting a minimum static load of 600 lb (272 kg).

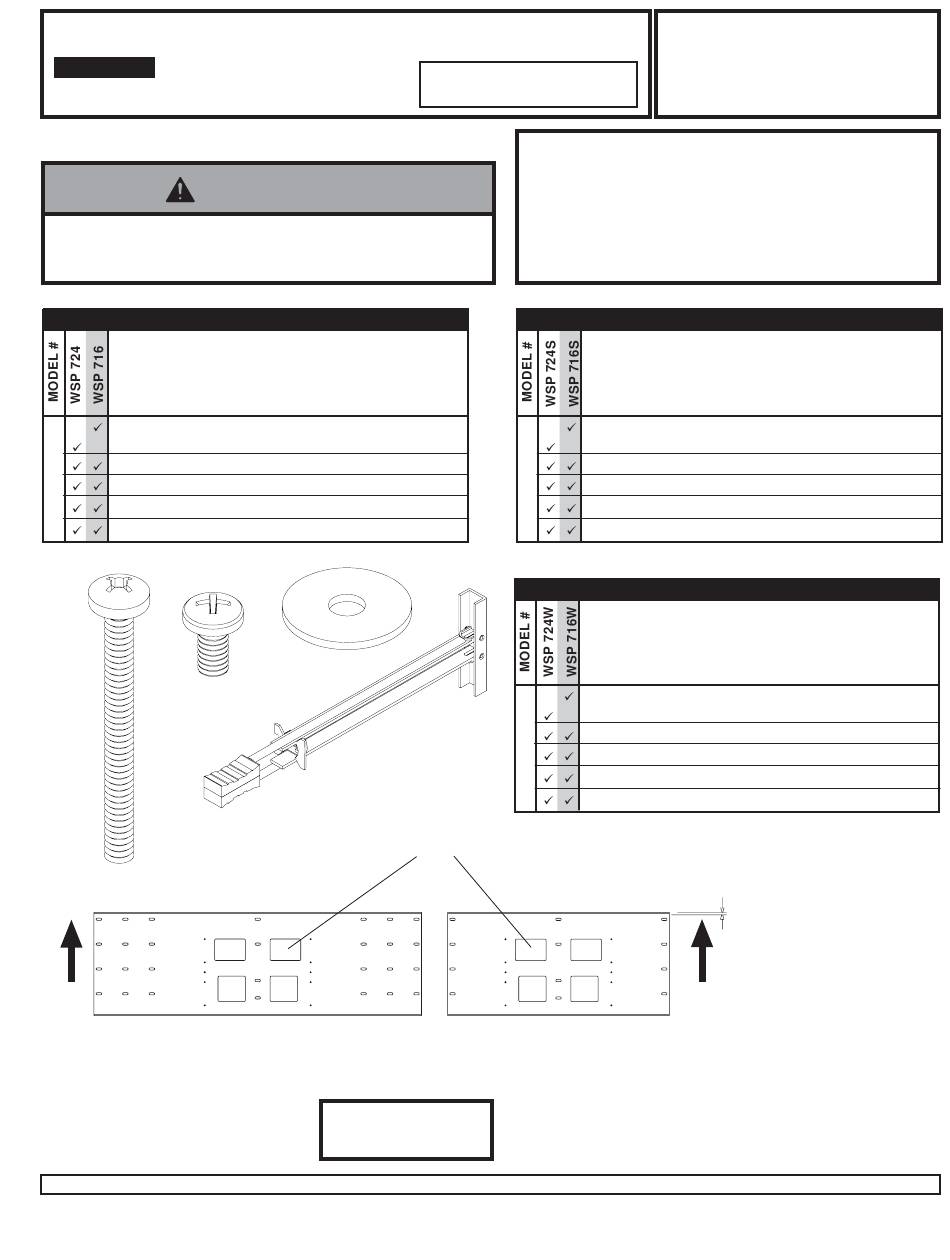

PARTS LIST
PART #
QTY.
A 024-1043
024-1042
B 510-9108
C 520-9521
D 560-9708
E 540-1063
C
THIS
END UP
Visit the Peerless Web Site at www.peerlessmounts.com
DESCRIPTION
1
wall plate 16" centers
wall plate 24" centers
10
1/4-20 x 1/2" phillips screw
12
1/4-20 x 2 1/2" phillips screw
12
toggler
22
washer
E
B
Cable Management Ports
WSP 724
Note: Wall plate may
appear slightly different
than illustrated.
MAXIMUM LOAD CAPACITY:
200 lb (91 kg)
WSP 716, WSP 716S, and WSP 716W for studs on 16" (406
mm) centers, contains four cable management ports.
WSP 724, WSP 724S, and WSP 724W for studs on 16", 20"
and 24" (406 mm, 508 mm, 610 mm) centers, contains four
cable management ports.
A 024-4043
B 520-9511
C 520-9522
D 560-9708
E 540-2056
A 024-2043
D
B 520-9511
C 520-9522
D 560-9708
E 540-2056
A
WSP 716
1 of 4
For customer care call 1-800-729-0307 or 708-865-8870.
Models:
WSP 716, WSP 716-S,
WSP 716-W, WSP 724, WSP 724-S,
WSP 724-W
PARTS LIST
PART #
QTY.
DESCRIPTION
1
wall plate 16" centers
024-4042
wall plate 24" centers
10
1/4-20 x 1/2" phillips screw
12
1/4-20 x 2 1/2" phillips screw
12
toggler
22
washer
PARTS LIST
PART #
QTY.
DESCRIPTION
1
wall plate 16" centers
024-2042
wall plate 24" centers
10
1/4-20 x 1/2" phillips screw
12
1/4-20 x 2 1/2" phillips screw
12
toggler
22
washer
*Note: The mounting hole which
is closest to the lip of the plate
indicates the up position.
*
THIS
END UP
ISSUED: 11-14-06 SHEET #: 024-9010-1
