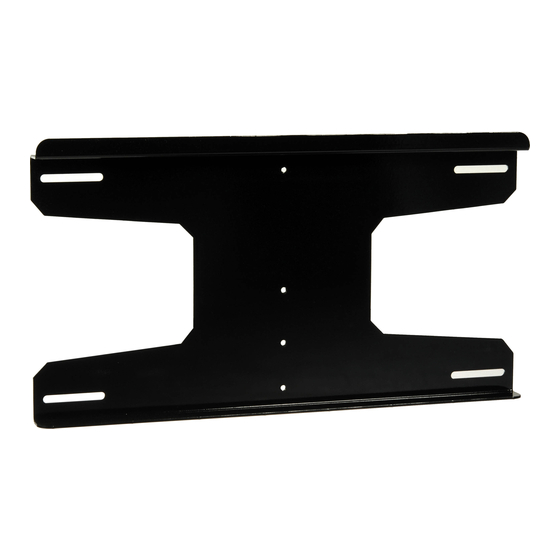

Installing Wall Plate to Metal Stud Walls for:
PA730, PP730, SA730P, SP730P, PA740, PP740, SA740P,
SP740P, SP735P, SA735P, PA735F, SP746P, SA746P, PA746F
WSP700
NOTE: Read entire instruction sheet before you start installation and assembly.
Before you begin, make sure all parts shown are included with your product.

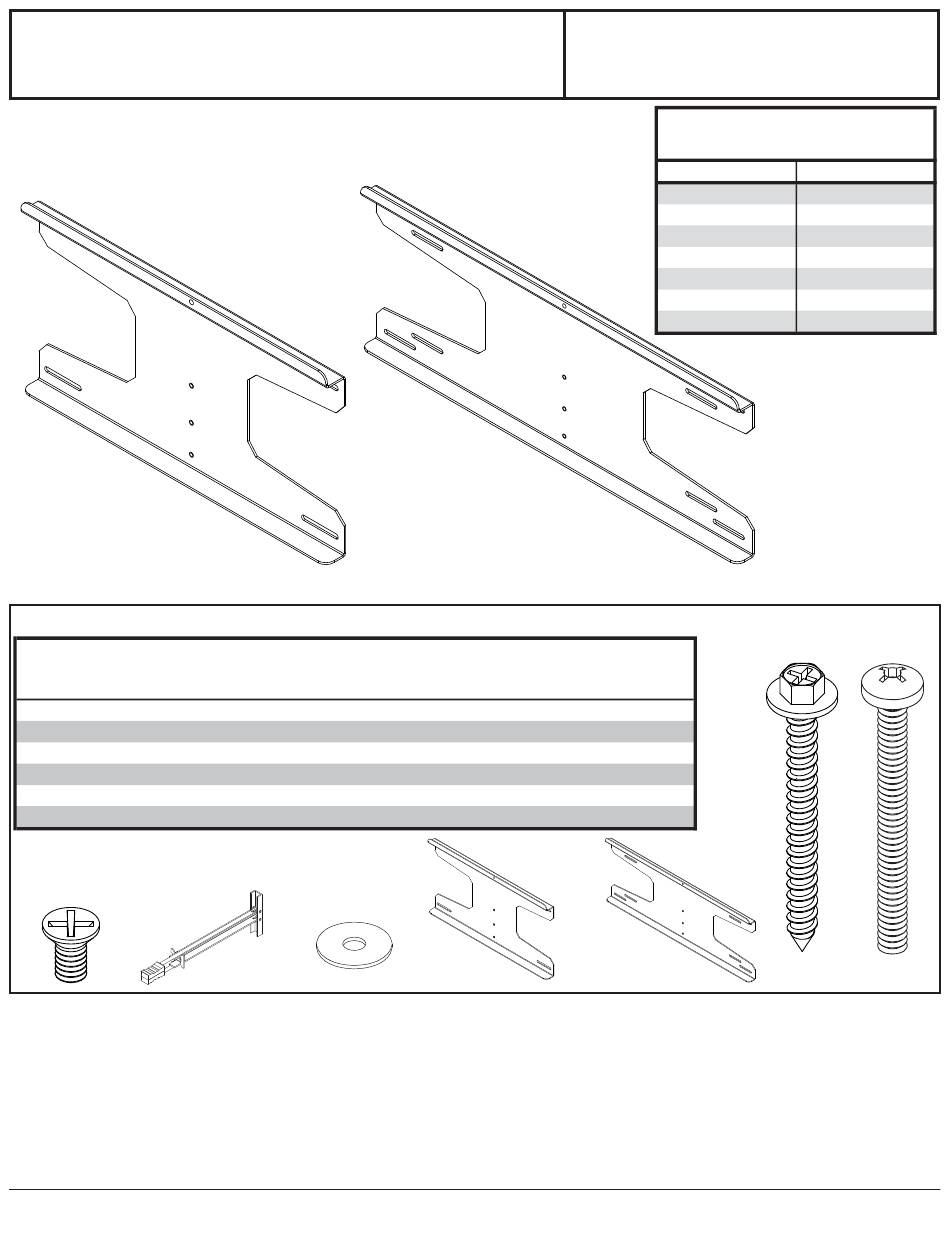

Parts List
Description
A wall plate
B wood screw #14 x 2.5 phillips hex head
C phillips screw, 1/4 - 20 x .5 black
D toggler 1/4 -20
E phillips screw 1/4 - 20 x 2.5 black
F washer
Parts may appear slightly different than illustrated.
C
D
Tools Needed for Assembly
• stud fi nder ("edge to edge" stud fi nder is recommended)
• phillips screwdriver
• drill
• 1/2" (13 mm) bit for metal stud wall
• 5/32" (4 mm)
• level
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
WSP701
WSP700
Qty. Part Number
1
024-P1050
4
5S1-015-C03
2
520-1209
4
560-9708
4
520-9521
4
540-9440
F
WSP700
Models: WSP700, WSP701
Max Load
80 lbs. (36 kg)
SA740P
SP740P
PA740
PP740
SA746P
SP746P
PA746F
WSP701
Part Number
024-P1051
5S1-015-C03
520-1209
560-9708
520-9521
540-9440
A
WSP701
ISSUED: 10-30-09 SHEET #: 095-9294-3 09-25-10
Capacity
25 lbs. (11 kg)
SA730P
SP730P
PA730
PP730
SA735P
SP735P
PA735F
B
E
