PEERLESS SR1G Installation And Assembly Manual

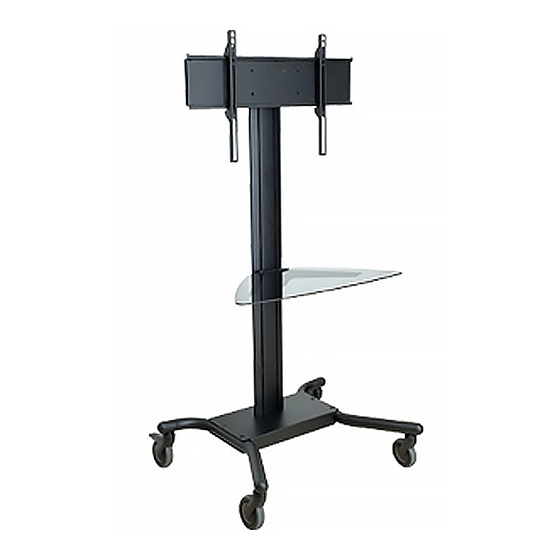

32" - 60" flat panel tv cart
Hide thumbs Also See for SR1G:

Advertisement

Quick Links

Download this manual See also: Installation and Assembly Manual

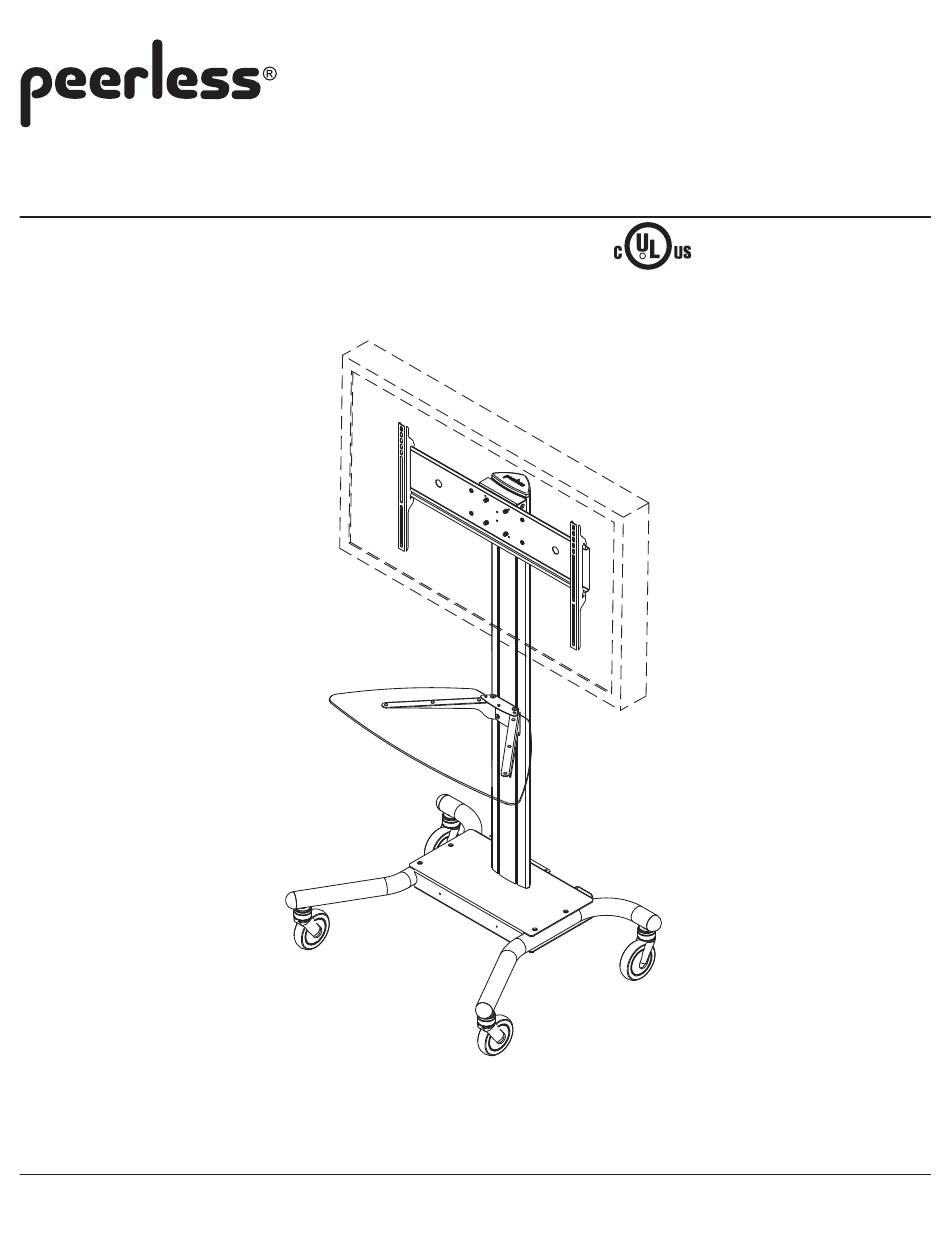

Installation and Assembly: 32" - 60" Flat Panel TV Cart
Models: SR1G, SR560G
3215 W. North Ave. • Melrose Park, IL 60160 • (800) 729-0307 or (708) 865-8870 • Fax: (708) 865-2941 • www.peerlessmounts.com
This product is UL Listed. It must be
installed by a qualified professional
R
installer.
Max UL Load Capacity:
150 lb (68 kg) screen
50 lb (22.7 kg) per shelf
ISSUED: 01-10-07 SHEET #: 009-9033-5 04-16-08

Advertisement

loading
Need help?

Need help?

Do you have a question about the SR1G and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for PEERLESS SR1G

Summary of Contents for PEERLESS SR1G

  • Page 1 Installation and Assembly: 32" - 60" Flat Panel TV Cart Models: SR1G, SR560G This product is UL Listed. It must be installed by a qualified professional installer. Max UL Load Capacity: 150 lb (68 kg) screen 50 lb (22.7 kg) per shelf 3215 W.

  • Page 2: Table Of Contents

    NOTE: Read entire instruction sheet before you start installation and assembly. WARNING • Do not begin to install your Peerless product until you have read and understood the instructions and warnings contained in this Installation Sheet. If you have any questions regarding any of the instructions or warnings, please call Peerless customer care at 1-800-729-0307.

  • Page 3: Parts List

    Before you begin, make sure all parts shown are included with your product. Parts may appear slightly different than illustrated. Parts List SR1G SR560G Black Black Description Qty. Part Number Part Number screen mount bracket 201-1156 201-1156 hook plate 201-1157...

  • Page 4: Parts List

    Parts List continued Universal Adapter Plate, Brackets and Hardware included with model SR560G only Some parts may appear slightly different than illustrated. 4 of 13 ISSUED: 01-10-07 SHEET #: 009-9033-5 04-16-08...

  • Page 5: Assembling Cart

    Insert four end caps (Z) into ends of left and right support legs (S & T) as shown. Guide right leg (T) towards base housing (E) as shown in fig.2.1. Then line up holes in base housing with holes i right leg.
  • Page 6 Insert and screw casters (V & U) into holes of support legs (S & T). Attach casters with brake (V) to the back of left and right support legs (S & T). Attach casters without brake (U) to front of support legs (S &...
  • Page 7 Loosely attach four 1/4-20 x 12 mm screws (L), washers (N), and 1/4-20 nuts (M) to shelf support (C). Slide shelf support onto upright (H) so that 1/4-20 nuts slide into slots of upright (H) as shown in figure 6 and detail 1. Slide shelf support to desired position, level, then tighten 1/4-20 x 12 mm screws (L) using 4 mm allen wrench (Q).
  • Page 8 Attaching Glass Shelf Insert six button bumpers (K) into shelf support (C). Place glass shelf (I) on shelf support. Insert three button bumpers (K) into bottom of shelf clamp bracket (D). Attach shelf clamp bracket (D) to shelf support (C) using two 1/4-20 x 20 mm screws (AA) and two 1/4-20 nuts (M).
  • Page 9 Loosely attach six 1/4-20 x 12 mm screws (L), Slide screen mount bracket (A) onto upright (H) so washers (N), and 1/4-20 nuts (M) to screen mount that 1/4-20 nuts (M) slide into slots of upright (H) as bracket (A). shown in figure 9 and detail 2.

  • Page 10: Attaching Universal Adapter Plate Or Dedicated Adapter Plate

    Attaching Universal Adapter Plate or Dedicated Adapter Plate NOTE:Refer to instructions included with Dedicated Adapter Plate for assembly to screen. Once attached, proceed to step 12. Attach Universal Plate (F) or Dedicated Adapter Attach hook plate (B) to screen mount bracket (A). Plate to hook plate (B) using four M10 x 15 mm socket screws (QQ).

  • Page 11: Installing Adapter Brackets

    Installing Adapter Brackets WARNING • Tighten screws so adapter brackets are firmly attached. Do not tighten with excessive force. Overtightening can cause stress damage to screws, greatly reducing their holding power and possibly causing screw heads to become detached. Tighten to 40 in. • lb (4.5 N.M.) maximum torque. •...
  • Page 12 SCREEN MULTI-WASHER SCREW ADAPTER BRACKET (G) If you have any questions, please call Peerless customer care at 1-800-865-2112. For Bump-out or Recessed Back Screen Refer to Screen Compatibility Chart to determine the proper fastener to use. Visit www.peerlessmounts.com/2 15-2 for a full screen compatibility chart for this mount.

  • Page 13: Cord Management

    13 of 13 ISSUED: 01-10-07 SHEET #: 009-9033-5 04-16-08 © 2007 Peerless Industries, Inc. All rights reserved. Peerless is a registered trademark of Peerless Industries, Inc. All other brand and product names are trademarks or registered trademarks of their respective owners.

This manual is also suitable for:

Sr560g
