Removing The Bottle - Profile Design HSF 800 HYDRATION Manual

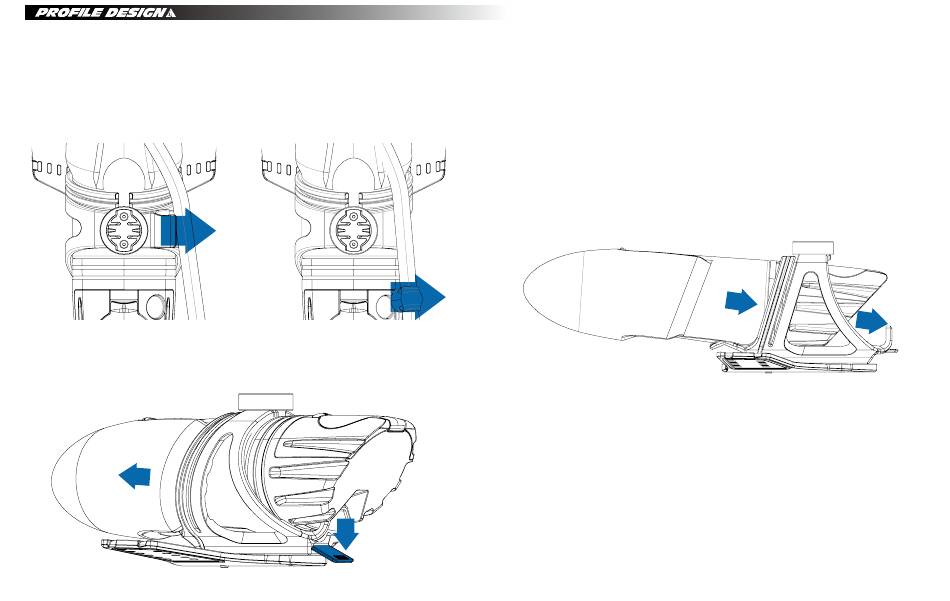

Removing the bottle:

1. To remove the bottle first ensure that the hose is not attached to the magnet or clip.
2. Then depress the lever on the clip that is located at the rear of the bottle. (Hear clip click)
3. While holding the lever down, carefully pull the bottle forwards out of the cage.
Installing the bottle:
1. Orient the bottle correctly with the guide channel on the base lined up with the front tab on the cage.
2. Slide the bottle into the cage until you hear a click from the retention clip.
3. Check to make sure that the cage and guide channel are correctly matched.
4. If the bottle has not seated correctly, depress the retention lever and re-align the guide channel.
PUSH
HSF/Aero HC 800
8
