Instruction Manual
TESA CLINOBEVEL 3
ELECTRONIC INCLINOMETER
05330210
05330211
05330212
05330213
05330214
This document is confidential and only to be used internally by the company that has purchased one of the inclinometers
mentioned above. Before duplicating or transmitting it to third parties without any connection to the use of these instruments,
an official request has to be sent to TESA.
V13 – 26.03.2019

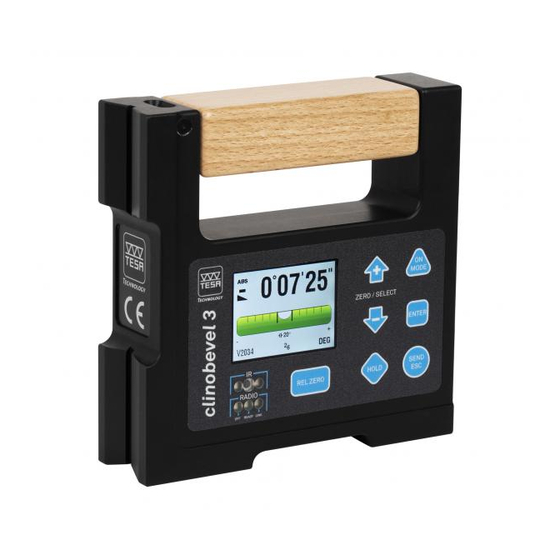

TESA CLINOBEVEL 3 ± 60°, Cast iron, rust protected
:
TESA CLINOBEVEL 3 ± 60°, Aluminium, black anodized
:
TESA CLINOBEVEL 3 ± 10°, Cast iron, rust protected
:
TESA CLINOBEVEL 3 ± 10°, Aluminium, black anodized
:
TESA CLINOBEVEL 3 High Precision ± 1°, Cast iron, rust protected
:
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CLINOBEVEL 3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for TESA CLINOBEVEL 3

  • Page 1 TESA CLINOBEVEL 3 ± 10°, Aluminium, black anodized 05330214 TESA CLINOBEVEL 3 High Precision ± 1°, Cast iron, rust protected This document is confidential and only to be used internally by the company that has purchased one of the inclinometers mentioned above.
  • Page 2: Table Of Contents

        Key functions ................................8     Batteries / Rechargeable batteries ......................... 9     Possible configurations of the TESA CLINOBEVEL 3 ..................10     DISPLAY ..................................11     Scaling of the display ............................11    ...
  • Page 3 Instruction Manual for TESA CLINOBEVEL 3 Options menu ................................ 30     Set PIN code ................................. 30     Display settings ..............................31     Logarithmic scaling ............................... 32     Function keys ................................ 32     Switching functions on or off ..........................33  ...
  • Page 4: Introduction

    The German version is the reference language. All other language versions are only translations. 1.4 Preamble The TESA CLINOBEVEL 3 is the result of more than 70 years of experience in the conception and production of high-precision measurement equipment. It has been designed to meet the needs of a production environment and to offer its users an affordable, quick and precise way for dimensional control of small or large workpieces in workshops or laboratories.
  • Page 5: Presentation

    TESA CLINOBEVEL 3 is available with 3 measurement zones: ±1°, ±10°, ±60°. TESA CLINOBEVEL 3 with the measuring ranges ±10° and ±60° is available in cast iron and aluminium. The version with the measuring range ±1° is only available in cast iron and its measuring bases on the left and bottom are precisely scraped.
  • Page 6: Operation/ Short Description

    Instruction Manual for TESA CLINOBEVEL 3 2.2 Operation/ Short description Description Wooden thermal protection handle Keys External connection Measuring units Battery display Function indicator and infrared indicator Sensor address Main display Cross vial Fig. Description of the constitutive elements of the TESA CLINOBEVEL 3...
  • Page 7: Overview Keyboard And Display

     The TESA CLINOBEVEL 3 features an automatic shut off mechanism. In normal mode the instrument is automatically switched off 60 minutes after the last key operation. This automatic shut OFF function can be deactivated with the ON sequence described below or by using an external power supply.
  • Page 8: Key Functions

    ON/MODE - Key Function - 1 - To switch the TESA CLINOBEVEL 3 on. When for starting the key is pressed, a grey picture will appear on the screen and all LEDs will be illuminated. After releasing the key, the TESA CLINOBEVEL 3 is switching to the measuring mode.
  • Page 9: Batteries / Rechargeable Batteries

    HOLD - key Function - 1 - The key serves for "freezing" a measuring value. The measured value is displayed until the TESA CLINOBEVEL 3 returns to measuring mode by pressing the key SEND. Function - 2 - In the functions "REL.ZERO" and "ABS.ZERO" the key is used for reading in the actual measuring value again during the manual entering.
  • Page 10: Possible Configurations Of The Tesa Clinobevel 3

    The lowest possible voltage is 1,7 Volt. After a further voltage drop a blinking battery symbol will appear. The batteries must then be exchanged immediately. The TESA CLINOBEVEL 3 needs 2 batteries or 2 rechargeable batteries 1,5V, LR14 "Type C".
  • Page 11: Display

    30', 12'. The range of 12' in the bar graph is the highest possible resolution of the instrument, i.e. 5" for each pixel. In the TESA CLINOBEVEL 3 High Precision the following ranges can be selected: 1°, 30', 12', 6', 3', 1'.
  • Page 12 Instruction Manual for TESA CLINOBEVEL 3 Numeric display plus bar graph Display ranges: 60°, 45°, 20°, 10°, 5°, 2°, 1°, 30', 12', for TESA CLINOBEVEL 3 High Precision 1°, 30', 12', 6', 3', 1'. Numeric display plus 3 bars, each...
  • Page 13: Background Colour

    Select now [Display Settings] and confirm with With the keys select the background colour and confirm the selection with the key The measuring instrument returns to the measuring mode. The following background colours are available in the TESA CLINOBEVEL3: Background colour beige Background colour black...
  • Page 14: Display Brightness

    Instruction Manual for TESA CLINOBEVEL 3 Background colour blue Background colour orange 3.4 Display In the adjustments of the instrument the brightness of the display can be adjusted in order to brightness adapt it to the environmental conditions and to optimise the battery life time. Thus, two different...
  • Page 15: Mirroring The Display

    Instruction Manual for TESA CLINOBEVEL 3 The absolute measurement is activated. Relative measurement is activated, i.e. the measuring value is the difference between the current and the reference plane, i.e. the relative base. Shows the selected displaying range. The displaying range...
  • Page 16: Technical Specifications

    Instruction Manual for TESA CLINOBEVEL 3 TECHNICAL SPECIFICATIONS Measuring range ± 1° ± 10° ± 60° (± 20 mm/m) Part number 05330214 05330212 05330210 Cast iron, rust protected 05330213 05330211 Aluminium, black anodized 0,005 mm/m 0,010 mm/m 0,025 mm/m Resolution (1″)
  • Page 17: Delivery Contents

    Instruction Manual 5.2 Packaging The elements that constitute the packaging of the TESA CLINOBEVEL 3 are very important, therefore you should keep them. It is absolutely necessary to use the original packaging when transporting the instrument in order to avoid any unfortunate deterioration which could cause...
  • Page 18: Installation, Security & Maintenance

    Instruction Manual for TESA CLINOBEVEL 3 INSTALLATION, SECURITY & MAINTENANCE 6.1 Location The instrument has to be installed in a location satisfying the general required conditions, but also the specific and very precise conditions regarding the environment, power supply, etc. It is essential to be able to identify important factors and to correctly prepare the zone the instrument is installed and used in.
  • Page 19: Functions

    Mark the precise position and particularly the direction of the TESA CLINOBEVEL 3 in order to be able to turn the instrument by 180 degrees and to put it in opposite direction at the very same spot.
  • Page 20 Value displayed = Value of the TESA CLINOBEVEL 3 - “Zero-Offset” The reversal measurement described above should be repeated periodically in order to achieve a high measuring precision, particularly when the TESA CLINOBEVEL 3 has not been in use for a longer period.
  • Page 21: Selection Of The Measuring Unit / Unit

    Instruction Manual for TESA CLINOBEVEL 3 7.3 Selection of the You can change the measuring unit of the inclination values displayed. If you start the function measuring unit / [UNIT] the list of the available measuring units will appear. With the keys UNIT you can now select the preferred measuring unit.
  • Page 22: Hold Function

    The key function (measuring value frozen) can be applied in all measuring modes. Put the TESA CLINOBEVEL 3 on a stable support. Press now the key . While the TESA CLINOBEVEL 3 is waiting for a valid measuring value the display will show graphically the measuring values read in the form of a shoal of points.
  • Page 23: Absolute Measurement

    REL ZERO "ZERO OFFSET", e.g. determined by a reversal measurement. The "REL ZERO OFFSET" will be stored in the TESA CLINOBEVEL 3 and can be re-called again and again. When starting the next relative measurement, the REL ZERO OFFSET entered or determined the last time will be displayed. The value can either be confirmed, newly entered or set to zero.
  • Page 24 Set the TESA CLINOBEVEL 3 to the correct position and press the key to read the value. Alternatively, the measuring can also be started using the remote control.
  • Page 25: Measurement With Limits / Limits

    With the key the procedure will be abandoned without change. After that the TESA CLINOBEVEL 3 will return to the measuring mode. Use this procedure if you have to set one of these registers to an exact value, e.g. 5°.
  • Page 26: Quick Calibration / Q.calib

    = limit defined 7.10 Quick calibration The TESA CLINOBEVEL 3 with the measuring range ±60° is equipped with an integrated / Q.CALIB calibration set-up for a quick calibration procedure which enables the calibration without complex means. On the backside of the TESA CLINOBEVEL 3 precisely manufactured and placed holes are available for installing the dowel pins as calibration aids.
  • Page 27 Instruction Manual for TESA CLINOBEVEL 3 Correction of the value at +45°. The dowel pins delivered are to be inserted in such a way that the instrument would display +45° when two pins are on a horizontal plane. Align the...
  • Page 28: Infrared Remote Control

    The infrared remote control is only supplied with the High Precision ±1° version. 7.12 Connection to an  ANDROID device Download the app TESA CLINOBEVEL 3 from the Google Play as remote display Store  Switch on the TESA CLINOBEVEL 3.
  • Page 29 Instruction Manual for TESA CLINOBEVEL 3  Select the “BT Discoverable” (BT visibility) function and change the status to ON  Start the app  The app searches for TESA CLINOBEVEL 3 in the area. After a short time, your...
  • Page 30: Options

    A function check of the instrument will be performed. 8.2 Set PIN code In order to protect the settings of the TESA CLINOBEVEL 3 against unauthorised changes you have the possibility to block the entering of options with a PIN code.
  • Page 31: Display Settings

    Instruction Manual for TESA CLINOBEVEL 3 Switch blocking options with keys to ON and confirm with the key You can now enter your PIN code. The value is adjusted with the keys . With the key the standard value 00000 will be 0 0 0 0 0 recalled for the PIN code.
  • Page 32: Logarithmic Scaling

    Instruction Manual for TESA CLINOBEVEL 3 In the colour adjustments you can select the preferred colour using the keys . Confirm your choice with the key The measuring instrument returns to the measuring mode. 8.4 Logarithmic With the option “Logscale” the logarithmic scaling can be switched on or off.
  • Page 33: Switching Functions On Or Off

    Instruction Manual for TESA CLINOBEVEL 3 Programmable Keys -> The list of the programmable keys will be shown again. - Rel.Zero { ON} For switching another key on or off, repeat the - Scale {ON} procedure as described above. In order to store the settings, select "Ok"...
  • Page 34: Switch Wireless Connection On/Off

    8.9 Gravitation The inclination displayed by the TESA CLINOBEVEL 3 is based on the gravitation. Around the globe the gravitation is, however, not constant but it varies with the latitude and with the height above sea level. Furthermore, variations of the density in the lithosphere cause additional local deviations.
  • Page 35: Firmware Version

    Instruction Manual for TESA CLINOBEVEL 3            arcsin   whereas Gravity at the location of calibration α Angle displayed at measuring site Gravity at the measurement location α Effective angle...
  • Page 36: Reset To Factory Settings

    A complete factory reset will reset the instrument to the state as it has been configured at the settings factory. All personal settings get lost. The TESA CLINOBEVEL 3 will be set to the following standard configuration: Standard values: Measuring mode:...
  • Page 37: Reading Out Measuriement Data With The Hyperterminal

    10 ERROR MESSAGE After the start of the instrument the TESA CLINOBEVEL 3 performs a function check. If any errors are detected, the instrument must be returned to the TESA reseller. A proper functioning cannot be guaranteed. The following error messages may appear: ...
  • Page 38: Pin-Definition

    Instruction Manual for TESA CLINOBEVEL 3 11 PIN-DEFINITION RS-232 / RS-485 BINDER Series 712 8 pol. (female) RS-485 Port Signal Pin type Pin function Power in Unregulated Power Ground Power out Power +5V Input/Output RS-485-Line A Input/Output RS-485-Line B Input...
  • Page 39: Warranty

    Instruction Manual for TESA CLINOBEVEL 3 14 WARRANTY TESA shall remediate any operating defects resulting from a manufacturing defect, within the limit of the following provisions. The regular warranty shall cover the first year from the date of sale. In justified warranty cases, TESA shall choose one of the following services: –...
