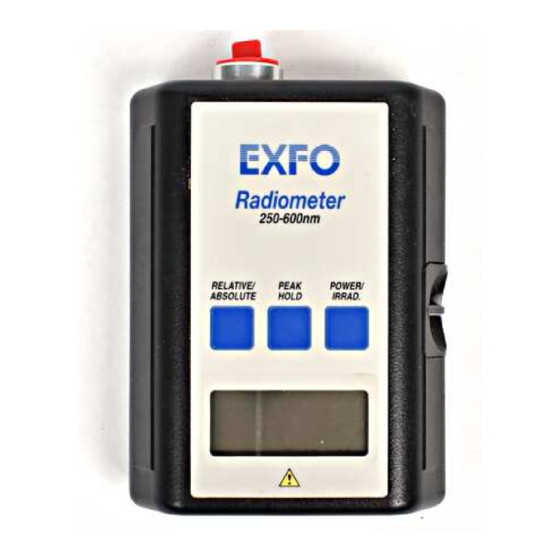

EXFO R5000 User Manual

Uv/visible radiometer 250 - 600 nm
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
sales@artisantg.com
artisantg.com
(217) 352-9330 |
|
Click HERE
Find the Exfo R5000 at our website:

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the R5000 and is the answer not in the manual?

Questions and answers

Related Manuals for EXFO R5000

Summary of Contents for EXFO R5000

  • Page 1 (217) 352-9330 | Click HERE Find the Exfo R5000 at our website:...
  • Page 2 UV/VISIBLE RADIOMETER 250 - 600 nm USER'S GUIDE Model R5000...

  • Page 3: Table Of Contents

    3 F a m i l i a r i z i n g Yourself with the EXFO Radiometer7 4 U s i n g the EXFO Radiometer1 4.1 Tu r n i n g on the EXFO Radiometer1 4.2 Irradiance Measurement1 4.3 P o w e r Measurement1 4.4 P e a k Measurement1...

  • Page 5: N T R O D U C T I O N

    Radiometer. This radiometer includes revolutionary technology that elevates the performance and accuracy of hand held radiometers to new heights. I t joins the EXFO family of spot cure and illumination systems, offering the same high level of innovation, quality and reliability that customers have come to expect from EXFO.
  • Page 6 Control Functions & Features Features Benefits Versatile measurement capability Provides accurate broadband suitable for many different light measurements between 250-600 nm sources Allows for industry specific Measures power or irradiance measures Optical interface collects light Eliminates beam intensity and over a large area radiance dependence Externally changeable bandpass Fast, simple filter changes...
  • Page 7 Familiarizing yourself with the EXFO Radiometer EMFO A d i n To m o 2 o a - aia-daffirrsaro R A L A N P E N ( L P p W E R !
  • Page 8 A) LCD Display: 3'/2 digit display with indicators for low battery, over range, Peak Hold, % (for Relative mode), Power mode and Irradiance mode. Automatic scaling function - Power: L o w range: 1 0 — 990 mW High range: 1.0 — 15.00 W Irradiance: Low range: 5 0 —...
  • Page 9 E) Peak Hold Keypad: Allows the display to indicate the peak value being measured. The display will indicate "P" when this feature is activated. F) Power/Irradiance Keypad: Provides the user with the ability to select between measuring power in "mW" or 'W" or irradiance in "mW/cm2"...

  • Page 10: S I N G The Exfo Radiometer1

    Using the EXFO Radiometer NOTE: The EXFO Radiometer defaults to the measurement mode it was in when it last automatically turned off. 4.1 Turning on the EXFO Radiometer The hand held Radiometer is not fitted with an ON / OFF switch.

  • Page 11: P O W E R Measurement1

    10 seconds after the light guide has been removed. The display will flash for 5 seconds before powering down. The EXFO Radiometer automatically detects 3, 5 or 8 mm diameter light guides and calculates the irradiance accordingly when the appropriate adapter is used.

  • Page 12: Relative Measurement1

    display the peak value. Any subsequent measurements that are lower than the Peak mode reading will not be displayed. 4.5 Relative Measurement: The Relative mode allows the user to display measure- ments as a percentage of a reference value. Begin by inserting the light guide into the optical port on the top of the Radiometer.

  • Page 13: U S I N G A Non-Standard Light Guide1

    4.6 Using Non-Standard Light Guides: NOTE: If a light guide with an active area diameter other than a 3, 5 or 8 mm is to be used in conjunction with this Radiometer: 1. S e l e c t the light guide adapter that is the closest match to the diameter of the light guide to be used.

  • Page 14: L O S S A R Y Of Symbols/ Safety Precautions1

    Glossary of Symbols/ Safety Precautions ATTENTION Consult accompanying documents WARNING Eye damage may result from directly viewing Ultraviolet light. Always wear UV protective eyewear/ face shield and protective clothing. Battery D.C. Current =MUM I M M O...
  • Page 15 Eye shielding must be used at all times as well as protective clothing to protect exposed skin. WARNING! Should the EXFO Radiometer be used in a manner not specified by EXFO, the protection provided by the equipment may be impaired.

  • Page 16: Optical

    Technical Specifications* 6.1 Optical: Wavelength Range: 2 5 0 - 6 0 0 nm Maximum Range: Power: mW — 15.0 W Irradiance: 5 0 mW/cm2 — 225.0 W/cm2 Resolution: P o w e r : Irradiance: 1 0 mW/cm2 Accuracy: 5% typical, +/- 10% maximum Auto-raging: P o w e r :...

  • Page 17: Mechanical1

    6.3 Mechanical: Dimensions: L x W x H 5.22 x 3.5 x 1.5 inches 13.2 x 8.9 x 3.8 cm Weight: lbs. / 400 g adapters for 3 and 5 mm light Includes: guides, carrying case, one Proximity Measurement Adapter ,manual Warranty: year 6.4 Environmental Conditions:...

  • Page 18: Regulatory Compliance

    Transport and Storage Conditions Temperature: -10 to 60 degrees Celsius Relative Humidity: 10% to 100% (non-condensing) Atmospheric Pressure: 500 to 1060 hPa • Specifications are subject to change without notice. 6.5 Regulatory Compliance: Complies to the following directives/standards Council Directive 73/23/EEC L o w Voltage Directive Council Directive 89/336/EEC E M C Directive CE Representative GENTEC Benelux...
  • Page 19 Warning Changes or Modifications not expressly approved by EXFO Photonic Solutions Division could void the user's authority to operate the equipment.

  • Page 20: Feature Summary2

    Over range indication Low battery indication Peak Hold measurement Absolute measurement Real-time measurement Auto turn on/off Replaceable filters NOTE: Calibration is recommended every 6 months and is available through EXFO Photonic Solutions Division. Please refer to section 9 of the manual.

  • Page 21: A R R A N T Y

    Radiometer to EXFO Photonic Solutions Division as per section 9. 2. T o return the EXFO Radiometer, please refer to the warranty and contact information in section 9. The display is dim and/or the battery symbol is active 1.
  • Page 22 3. E n s u r e that a filter (blank or otherwise) has been correctly installed into the Radiometer. 4. C h e c k that the Radiometer is within calibration. 5. R e t u r n the Radiometer to EXFO as per section 9.
  • Page 23 Accessories EXFO Photonic Solutions Division carries a full line of re- placement parts, supplies and accessories. Our team of light-based technology experts can recommend light deliv- ery solutions for a range of manufacturing, illumination and biomedical applications. We also welcome custom re- quests for unique light delivery requirements.
  • Page 24 Proximity Measurement Adapter and the optional Lamp Output Adapter. These adapters expand the range of measurement geometries that can be accommodated. Standard and Optional Adapters: Proximity Measurement Adapter (standard): EXFO Part # 019-01034 Lamp Output Adapter (optional): EXFO Part # 019-01033...
  • Page 25 In the event of a claim under this guarantee, the equipment is to be sent postage and carriage paid, including a short description of the fault to EXFO Photonic Solutions Division. Equipment returning to EXFO will not be received without an official Return Authorization, issued by EXFO Photonic Solutions Division.

  • Page 26: C O N T A C T Information2

    2. Te l e p h o n e EXFO to obtain a Return Authorization number so that repairs may be completed quickly and efficiently.

  • Page 27: Servicing2

    Photonic Solutions Division. Refer to address and contact information on page 25 of the manual. 9.3 Servicing: To clean the hand held EXFO Radiometer, use a damp cloth with a mild detergent to wipe down the unit. If you have any problems with your EXFO Radiometer, please contact EXFO directly for assistance and/or directions on how to return the unit to us for servicing.
  • Page 28 Notes...
