2.2

Modes of operations

The available keypad functions are structured in five modes of operation:
NORMAL mode
Continuous focuser movement
Goto saved position
JOG mode
Focuser jogging
SINGLE STEP mode
Single step movement
SET mode
Zeroing
Save limit
Save position
OVERRIDE LIMITS mode
Continuous focuser movement ignoring the limits
1. NORMAL mode: The normal mode is entered when the device is powered. The two status
LEDs are off.
2. JOG mode: The jogging mode is entered when the JOG
is lit.
3. SINGLE STEP mode: The single step mode is entered when the jogging mode is active and the
SET button is pressed. LED1 and LED2 is lit.
4. SET mode: The setting mode is entered when the SET
lit.

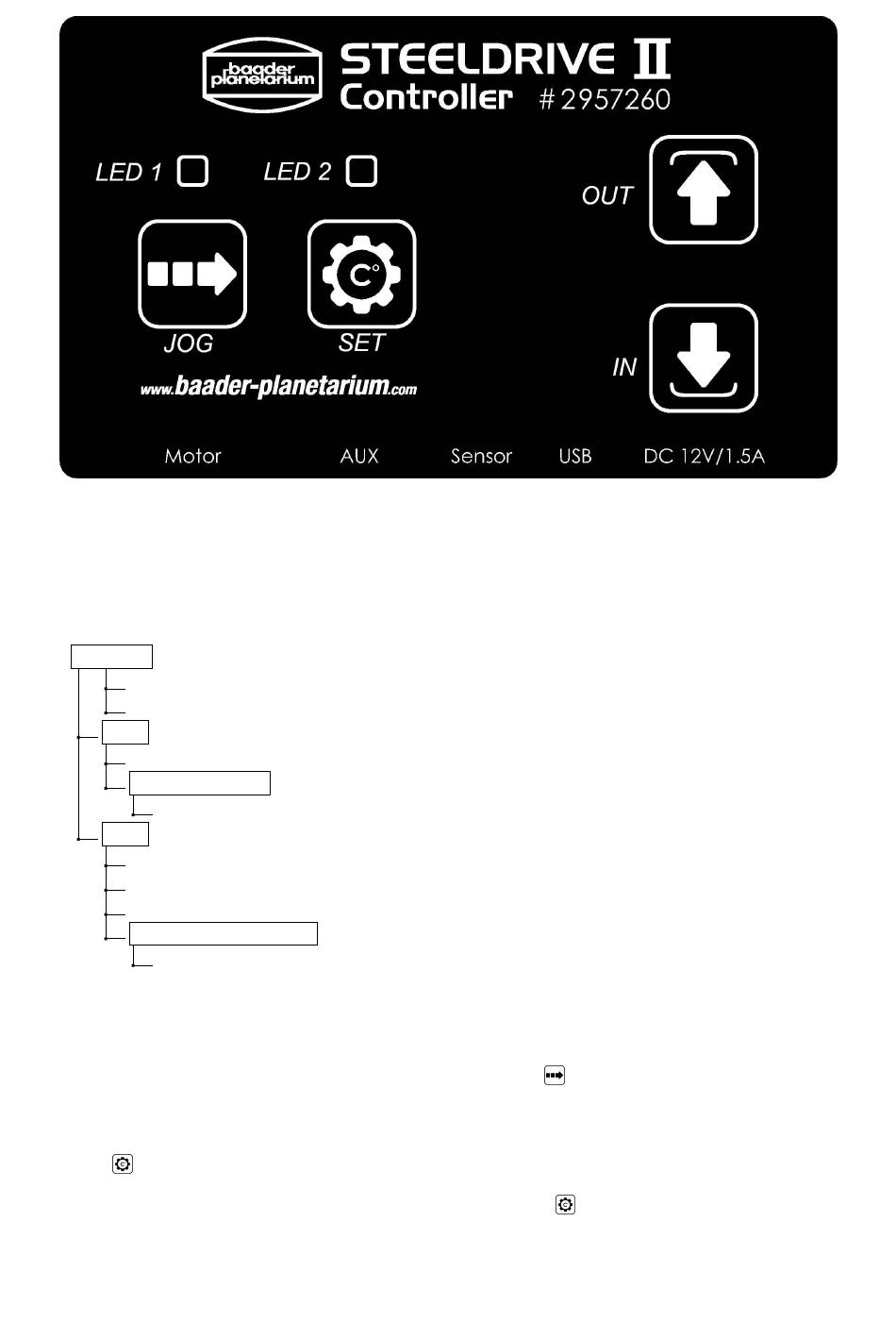

Figure 2.1: SteelDrive keypad
6
button is pressed once. Status LED1
button is pressed. Status LED2 is
