Baader Planetarium Steeldrive II Manual

High precision, temperature compensating focusing motor for heavy loads
Hide thumbs Also See for Steeldrive II:
Table of Contents

Advertisement

Quick Links

Download this manual
High precision, temperature compensating
focusing motor for heavy loads
MADE IN GERMANY
Baader
Steeldrive II
Controller
# 2957260
– EN ver. 03/2019 –
BAADER PLANETARIUM
G
M
B
H
Zur Sternwarte 4 • D-82291 Mammendorf • Tel. +49 (0) 8145 / 8089-0 • Fax +49 (0) 8145 / 8089-105
www.baader-planetarium.com • kontakt@baader-planetarium.de • www.celestron.de

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Steeldrive II and is the answer not in the manual?

Questions and answers

Related Manuals for Baader Planetarium Steeldrive II

Summary of Contents for Baader Planetarium Steeldrive II

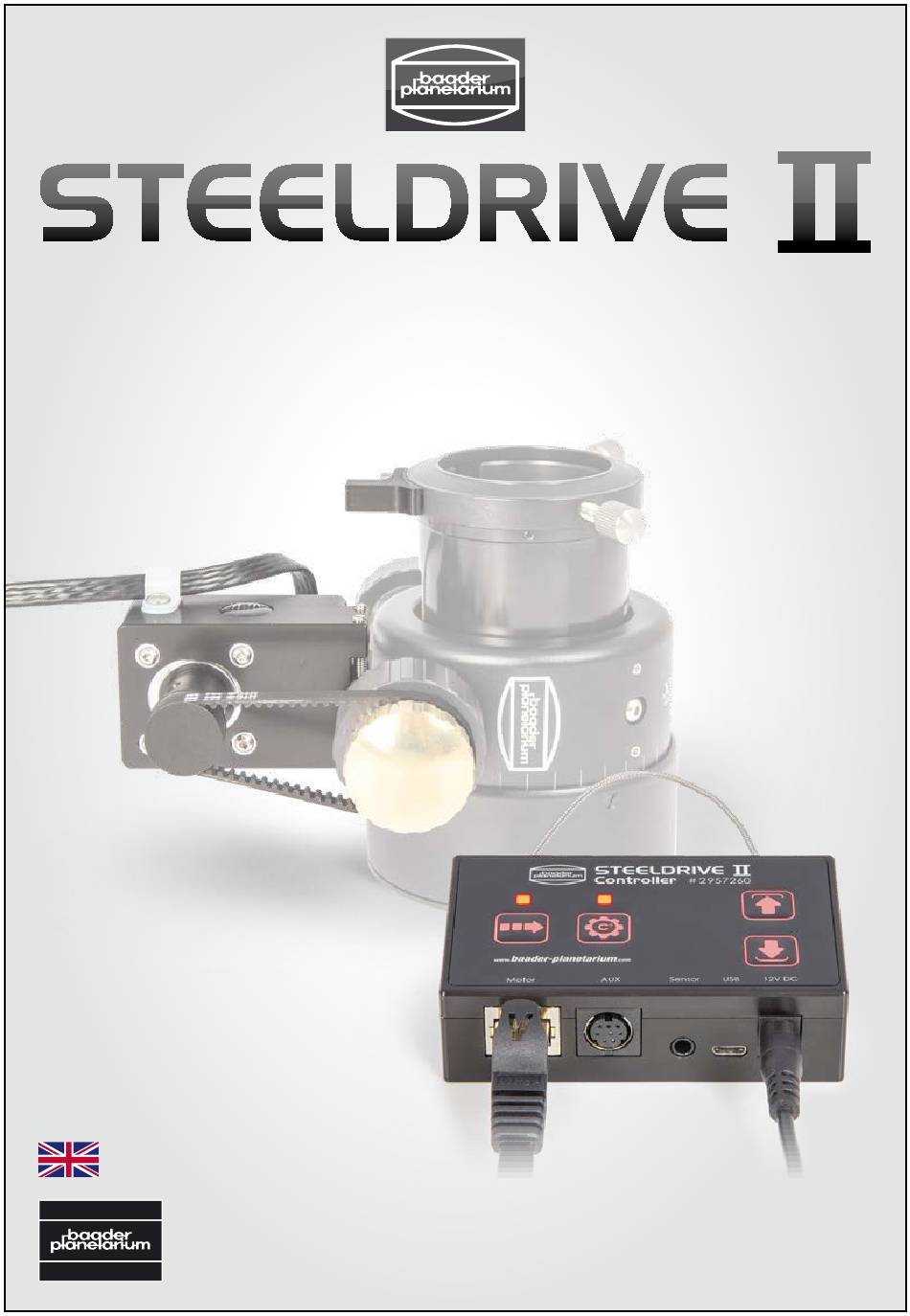

  • Page 1 High precision, temperature compensating focusing motor for heavy loads MADE IN GERMANY Baader Steeldrive II Controller # 2957260 – EN ver. 03/2019 – BAADER PLANETARIUM Zur Sternwarte 4 • D-82291 Mammendorf • Tel. +49 (0) 8145 / 8089-0 • Fax +49 (0) 8145 / 8089-105...

  • Page 2: Table Of Contents

    +/-0.1 degree 4. Steeldrive II: Three Operation Modes ......6 •...

  • Page 3: Dimensions And Ports

    See image below. pad as well as to connect it to a computer. The control electronics are built into this unit. 1. Steeldrive II (SD II) Controller 2. Micro-USB Cable (3 m) 3. 12V / 5A power supply with EU-plug 45 mm 4.

  • Page 4: Installation Of The Controller

    RJ45-cable can keep the strain away from the other cables. ° 4. Steeldrive II: Three Operation Modes 1. Manual: The Steeldrive II focuser is operated Motor Sensor 12V DC completely with the keys on the controller. To...

  • Page 5: Setting The Outer Limit

    2. Push and hold JOG for three seconds until LED 2 is off. Now, the current Now, the new value for the outer limit is saved, and the Steeldrive II returns to position is saved as favorite. the normal mode (all LEDs are off).

  • Page 6: Returning To A Saved Focus Position

    If you are in normal mode (LED 1 and 2 are off): If necessary, you can ignore the limits which are set in the Steeldrive II. This is e.g. useful if you want to set a new outer limit, which is farther outwards than 1.
  • Page 7 © 2019 Baader Planetarium GmbH | All rights reserved. Products or manual can be changed without further notice. We reserve the right for errors. Reproduction of this manual – even in part – is not permitted without the written consent of BaaderPlanetarium GmbH.
