Motor RJ45 connection pinout
The stepper motor unit is connected to the controller unit via a CAT7 LAN cable. This enables the
user to easily adapt the cable length to their needs without the need of any special proprietary cable.
NEVER connect either the stepper motor unit or the controller unit to a LAN network via the RJ45
port. It will cause damage to the switch and/or other attached devices!

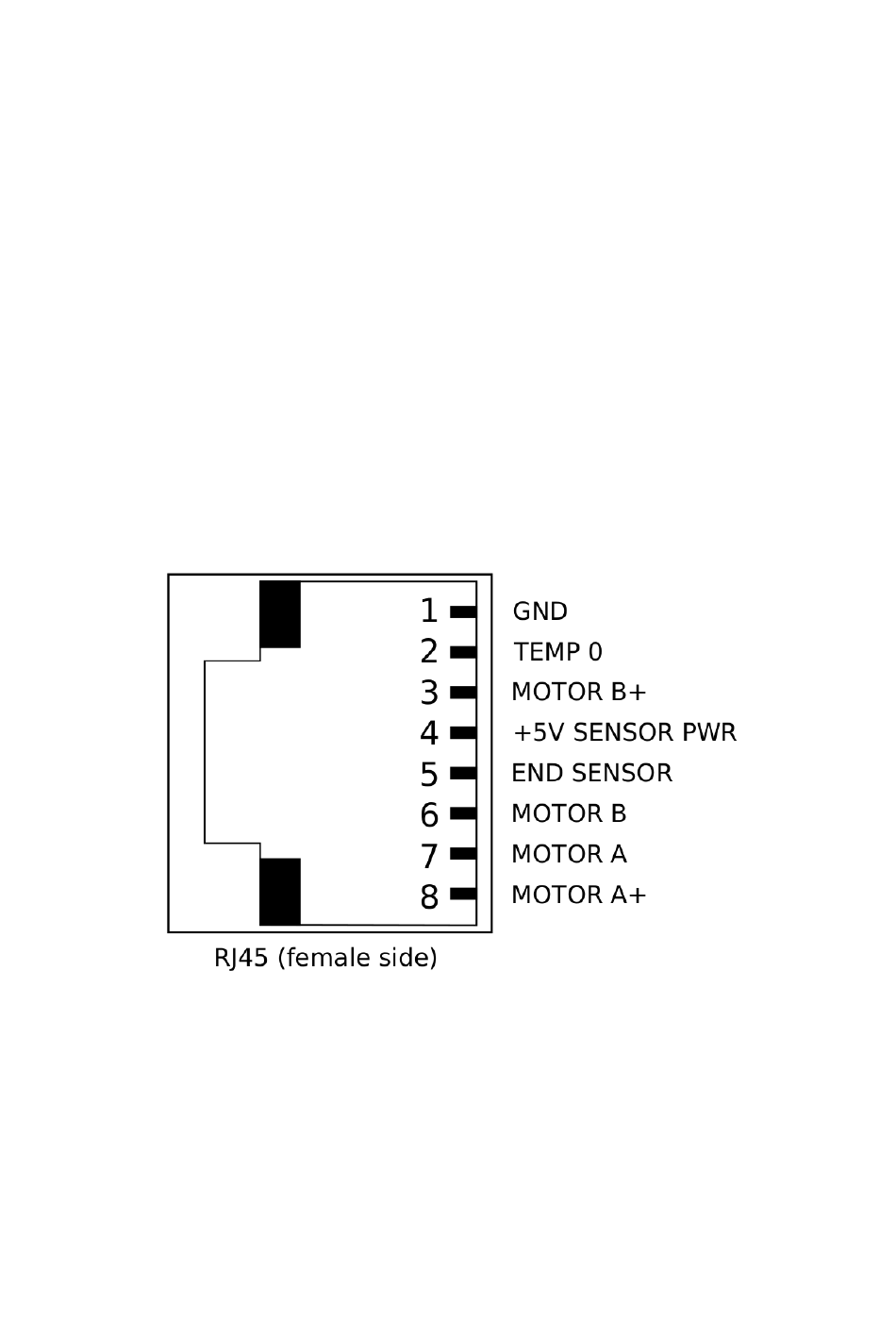

Figure 5.1: RJ45 pinout (female side).
29
