ORION TELESCOPES & BINOCULARS 10110 Instruction Manual

Orion Dob Pod for Orion 4.5-10"

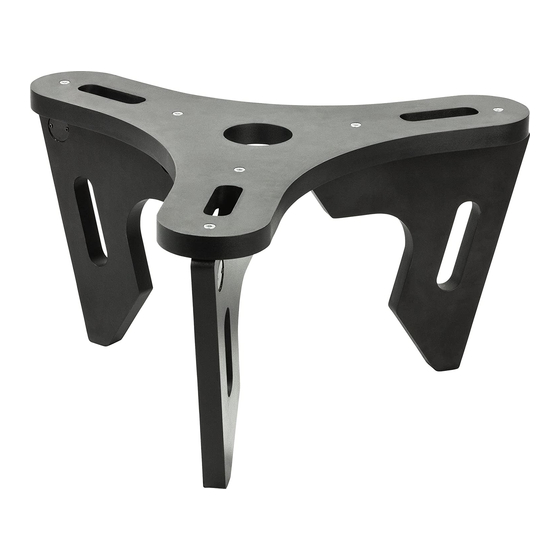

The Orion Dob Stand is an invaluable tool for observ-
ers who prefer using the huge light gathering capabil-
ity of a Dobsonian telescope. It adds 1 ft to the telescope
height, making it easier and more comfortable to use a
Dob while standing (for individuals of 'average' height).
It is compatible with the Orion's Classic, IntelliScope and GoTo
Dobsons from 6" to 10" of aperture.

Getting Started

Start by familiarizing yourself with the Dob Stand components.
Providing Exceptional Consumer Optical Products Since 1975
inSTrucTiOn MAnuAl
Dobsonian Telescopes
#10110

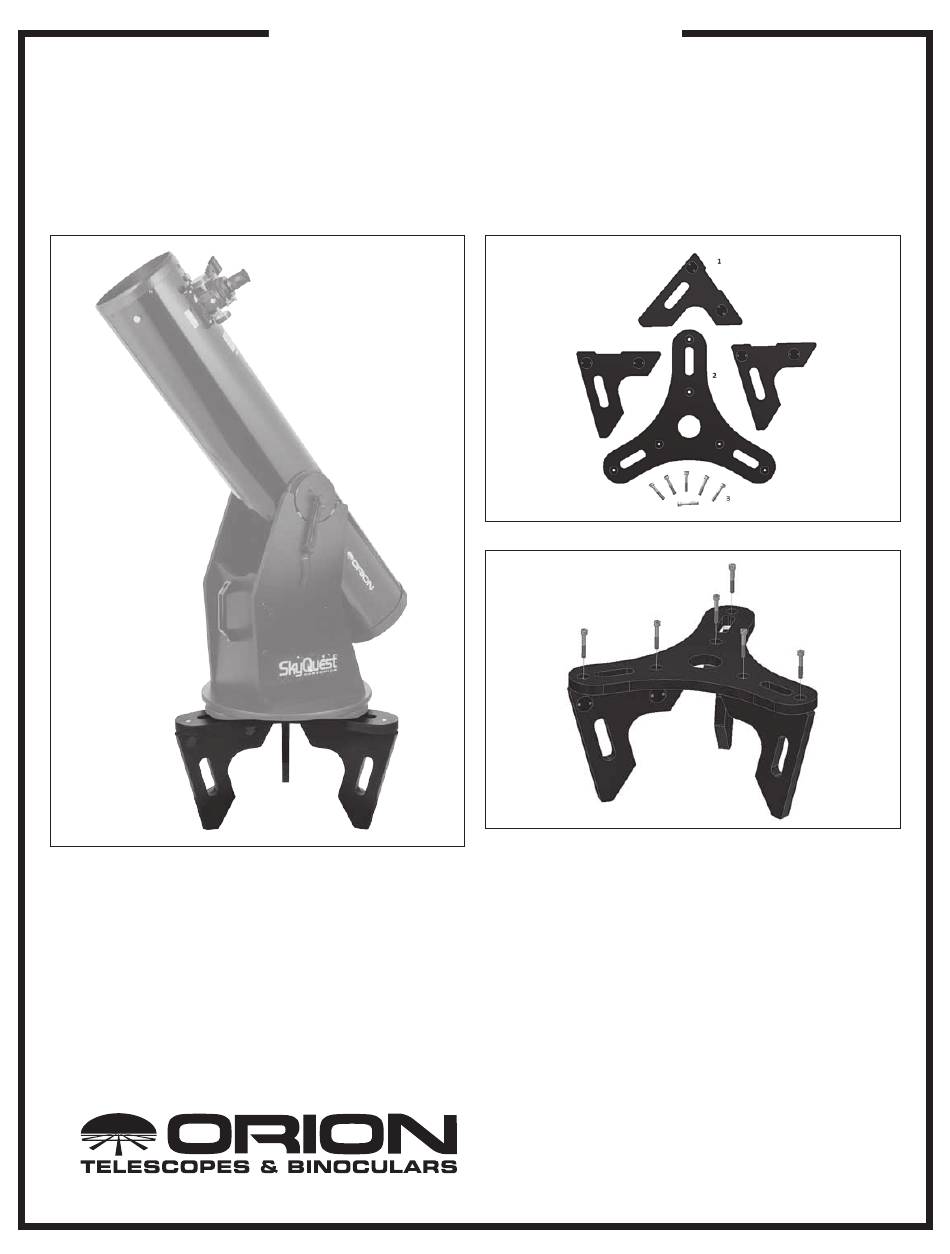

Figure 1. Parts list
Figure 2. Assembling the three Dob Stand Legs
1. Dob Stand Leg (three pcs)
2. Dob Stand flat surface
3. Assembly Hex Socket Screws (Allen key not shown)

Assembling the Dob Stand

It is very easy to assemble the Dob Stand. Start by locating
the three cut-outs on the Dob Stand flat Surface (#2). Each of
the three Dob Stand Legs (#1) will be fixed bellow as shown
in Figure 2.
OrionTelescopes.com
Customer Support (800) 676-1343
E-mail: support@telescope.com
Corporate Offices (831) 763-7000
89 Hangar Way, Watsonville, CA 95076
IN 499 Rev. A 05/13
