High performance 90mm fiberglass jet
Assembly manual
For intermediate and advanced fliers only!
Specs
Wingspan: 1255mm
Fuselage length: 1250mm
Flying weight: 2600-3000g
Wing area: 22.6 dm²
Wing loading: 125g/dm²

Advertisement

loading
Need help?

Need help?

Do you have a question about the ViperJet G500 and is the answer not in the manual?

Questions and answers

Summary of Contents for HobbyKing ViperJet G500

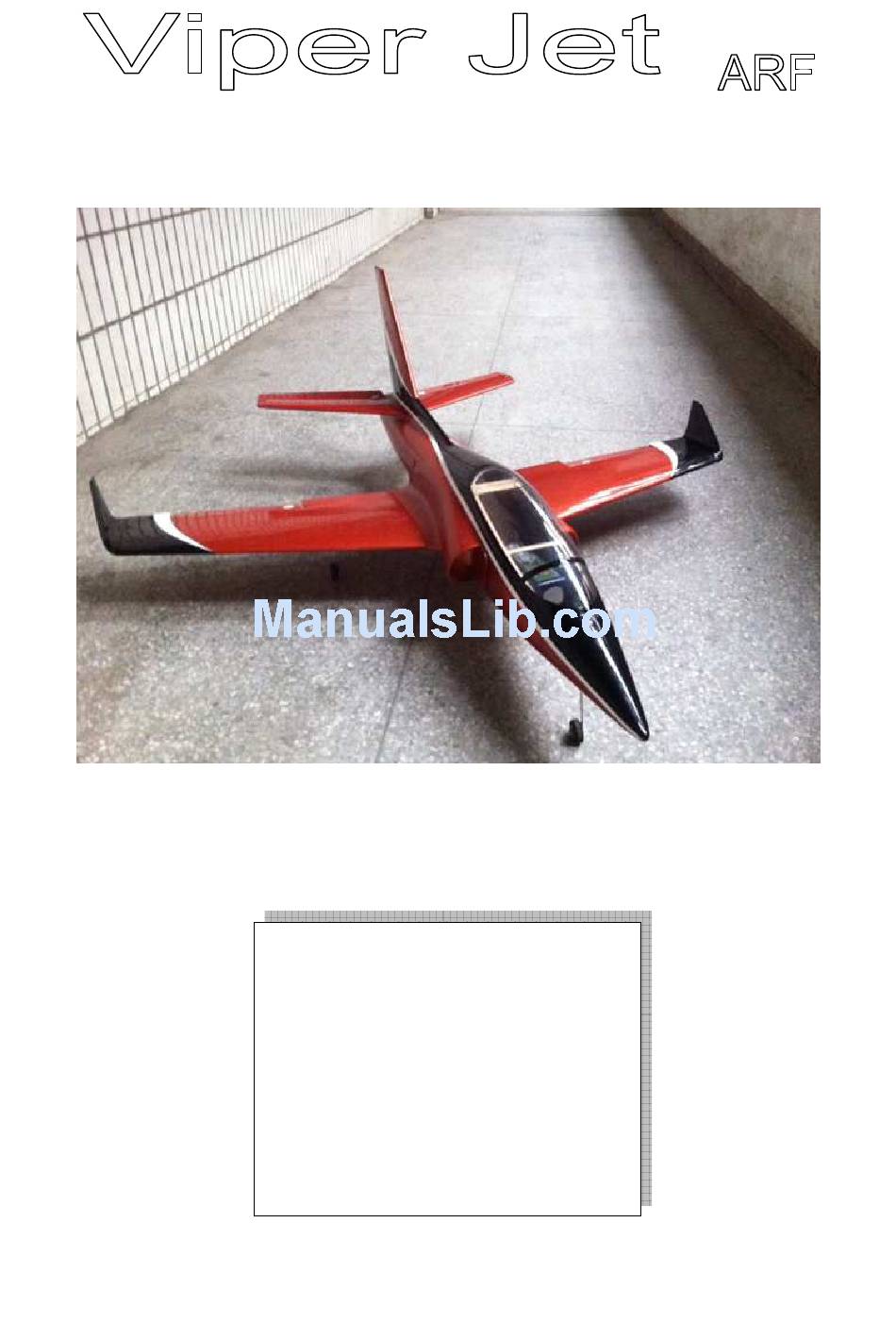

  • Page 1 High performance 90mm fiberglass jet Assembly manual For intermediate and advanced fliers only! Specs Wingspan: 1255mm Fuselage length: 1250mm Flying weight: 2600-3000g Wing area: 22.6 dm² Wing loading: 125g/dm²...
  • Page 2: Included In The Box

    Included in the box: Fuselage Tricycle landing gear with wheels Main wings x2 Servo bay covers Winglets x2 Pushrods (x8) and associated hardware Horizontal stab x2 CF rod x2 (main wing and horizontal Canopy stab attachment) 90mm EDF unit Additional hardware (screws, bolts, EDF fuselage door blocks etc.) Battery tray...
  • Page 3 Step 1: Main wing servo instillation Locate the two main wings and cut away the covering film as below. Remove the covering film from the four main wing servo bay covers to accommodate the servo horns.
  • Page 4 Take your four 17g servos and attach them to the underside of each of these. (Tip, centre your servos at this point to save unnecessary complications later on!) To do this, first screw two small wooden blocks to each servo. Position as shown below. Drill 1mm or 1.5mm pilot holes to prevent the screws from splitting the wood.
  • Page 5 Secure with a woodscrew in each corner. Again drill pilot holes to prevent the wood from splitting. Repeat for all four servos. Note the orientation of the servo door with respect to the wing. Keep the orientation of the flap servo the same, as below Step 2: Control surface attachment The aircraft is supplied with the control surfaces in position, however they are not glued in place.
  • Page 6 Step 3: Control horns and clevises Start with the ailerons. Arrange the control horns in position and drill 2mm holes to bolt these on. Drill fully through the surface and attach on the other side using the plastic pieces provided. Next take a main wing pushrod and install in the usual manner.
  • Page 7 Next do the flaps. Instead of bolting the flap horns in position, use two 2mm woodscrews (provided) to attach them. Don’t drill pilot holes and use a drop of CA on each of the screws to secure. Put a drop of CA here before tightening.
  • Page 8 25mm behind the hole for the CF re-enforcement spar Take a look at where the servo wires exit the main wings if still unsure where to drill. Next, roughen the surface you just drilled through using sandpaper to ensure a good bond between the main wings and the fuselage.
  • Page 9 Note the two CF locator pins to keep the incidence of the wing as designed. To install these, first test fit them in each of the holes in both the fuselage and wings. This is necessary as during painting and transport these holes can effectively shrink. If they are too small, drill out to the diameter required.
  • Page 10 Centre both servos and attach horns and clevises. Insert into the rear of the plane as shown below. Make sure that the servos fit as deep as possible in this slot, but still move freely without the clevises rubbing against the fiberglass. Try to visualize where the thrust tube will eventually reside and make sure that there will be enough clearance between the clevis and the tube.
  • Page 11 Step 8: Elevator pushrod and horn instillation Cut a slot in the fuselage as shown. (If you do not have access to a dremel, drill a series of 3mm holes and cut out with a craft knife). Connect the pushrods to the servos and through these slots. Finally, attach the horns to the elevator surfaces.
  • Page 12 Step 9: EDF instillation First assemble your EDF, motor and fan. Test for excessive vibrations. Also, make sure that your motor is orientated such that the motor wires are as shown below. ° Now, look back at the image above. Note that the fan protrudes from the EDF duct. Now examine the fuselage where the EDF will sit.
  • Page 13 The fiberglass in this location must be cut away to allow the fan to rotate freely.
  • Page 14 Keep test fitting the EDF and checking to see if the fan can rotate freely. Secure the two sides together with strong tape. Feed the ESC and wires through the body at this point also. Next, drill pilot holes and secure the EDF in position with large wood screws. Note that the correct position for the EDF is as shown below.
  • Page 15 Finally, attach motor wires to the ESC and test the direction of rotation. Step 9: EDF shroud (thrust tube) Cut out the following template from the sheet of fiberglass supplied. The notch for the motor wires is located appx. halfway along the 310mm side. Also note that the sheet you are provided with may look square, but have one side longer than 310mm and the other side shorter.
  • Page 16 tube to the EDF with strong tape. If the template was measured correctly, the shroud should reach almost to the rear of the fuselage as shown below. Secure with tape. Step 10: Fuselage cover Secure with clear tape as shown below.
  • Page 17 Step 11: Battery tray and nose gear servo instillation Take the battery tray and another micro servo and install as shown below. Make sure you glue the battery tray in place with good, 30minute (or longer) epoxy, as there will be surprisingly large forges on these joints in flight. It is also recommended that you trim the battery tray slightly as shown below to maximize the gluing area.
  • Page 18 Step 12: Nose gear Take the remaining block of wood provided in your kit and glue in place with epoxy as shown below. Here Next, flip the plane over and drill a 2.5mm hole as shown. Aim for the centre of the block you just glued.
  • Page 19 Keep the hole as vertical and as true as possible. Next, take the nose gear strut and slide on a collar. Slide the assembly into the hole you just drilled. If the hole is too small drill out slightly, but make sure that the strut is not loose in the hole.
  • Page 20 Flip the plane over and install the following parts as shown. Note the clevis. Install the pushrod and a servo horn at this stage. Arrange the pushrod so that it passes through the small gap between the battery tray and the wooden structure beneath and the Z bend attaches to the servo horn.
  • Page 21 Finish off this step by installing a wheel, followed by a collar to secure. Step 13: Main gear Arrange the following parts as shown. Apply glue as indicated. Epoxy here...
  • Page 22 Secure with the following plastic part and two large woodscrews. Finish off by installing a wheel and collar in the same manner as the nose gear. Step 14: Winglets Drill a hole in the tip of each wing corresponding to the location of the hole in the winglet. Insert a CF pin into these holes and glue in place with epoxy.
  • Page 23 Step 15: Finishing touches and CG Finish off electronics instillation. Position the battery on the tray using Velcro and Velcro straps as shown. CG: The ideal CG is 35mm in front of the main landing gear. For the first flights, make sure that the CG is in this location! Enjoy! Take pictures and videos of your scale looking, high performance ProDesign fighter!
  • Page 24 After the first flight, it is prudent to check the CG for all subsequent flights.
