ODYN LeetDesk 1.0 Series Assembly & Instruction Manual page 13

Electrically height-adjustable gaming desk
Table of Contents

Advertisement

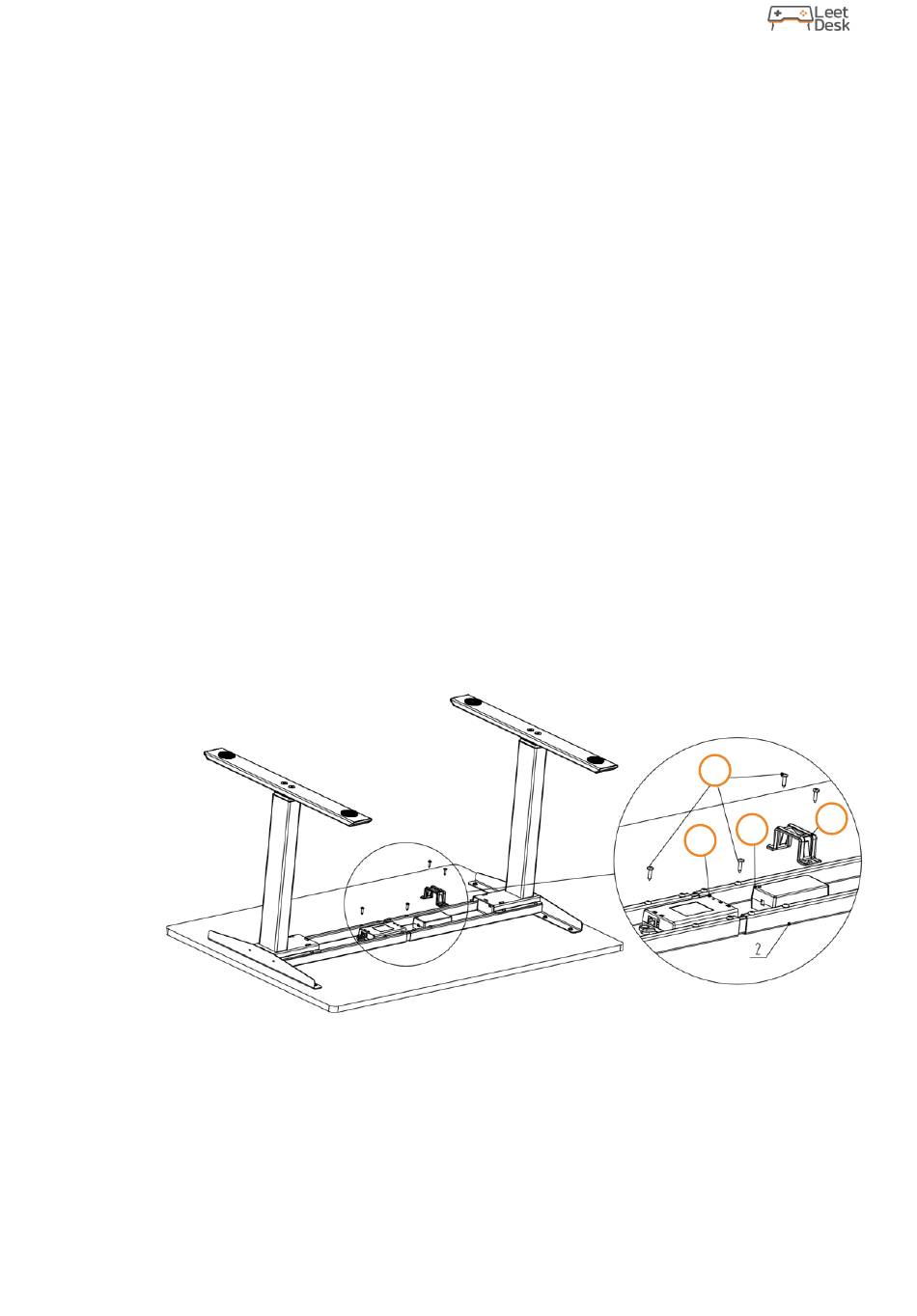

Step 5
Adjust the position of the control box (7) and the adapter (9)
with the pre-drilled holes in the tabletop.
Fix the ST5×20 wood screws (10) into the holes on both sides
of the control box (7).
Put the adapter buckle (8) on the adapter (9), and fix the ST5×20
wood screws (10) into the holes on both sides of the adapter
buckle (8). Plug the motor wire of the table leg into the control
box (7).
Plug the wire of the adapter into the control box.
10
8
9
7
12
