Summary of Contents for ODYN LeetDesk Dark

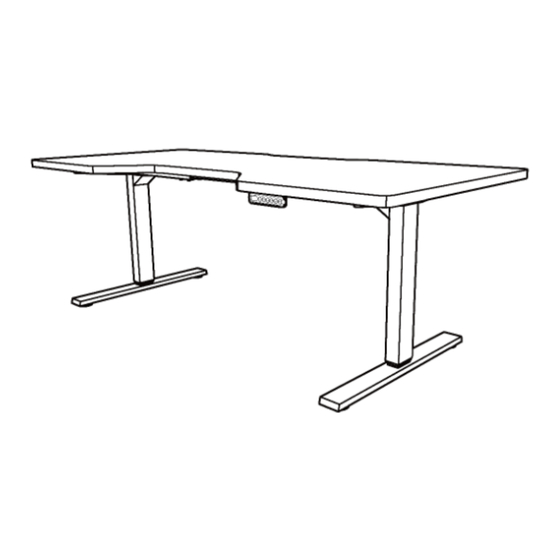

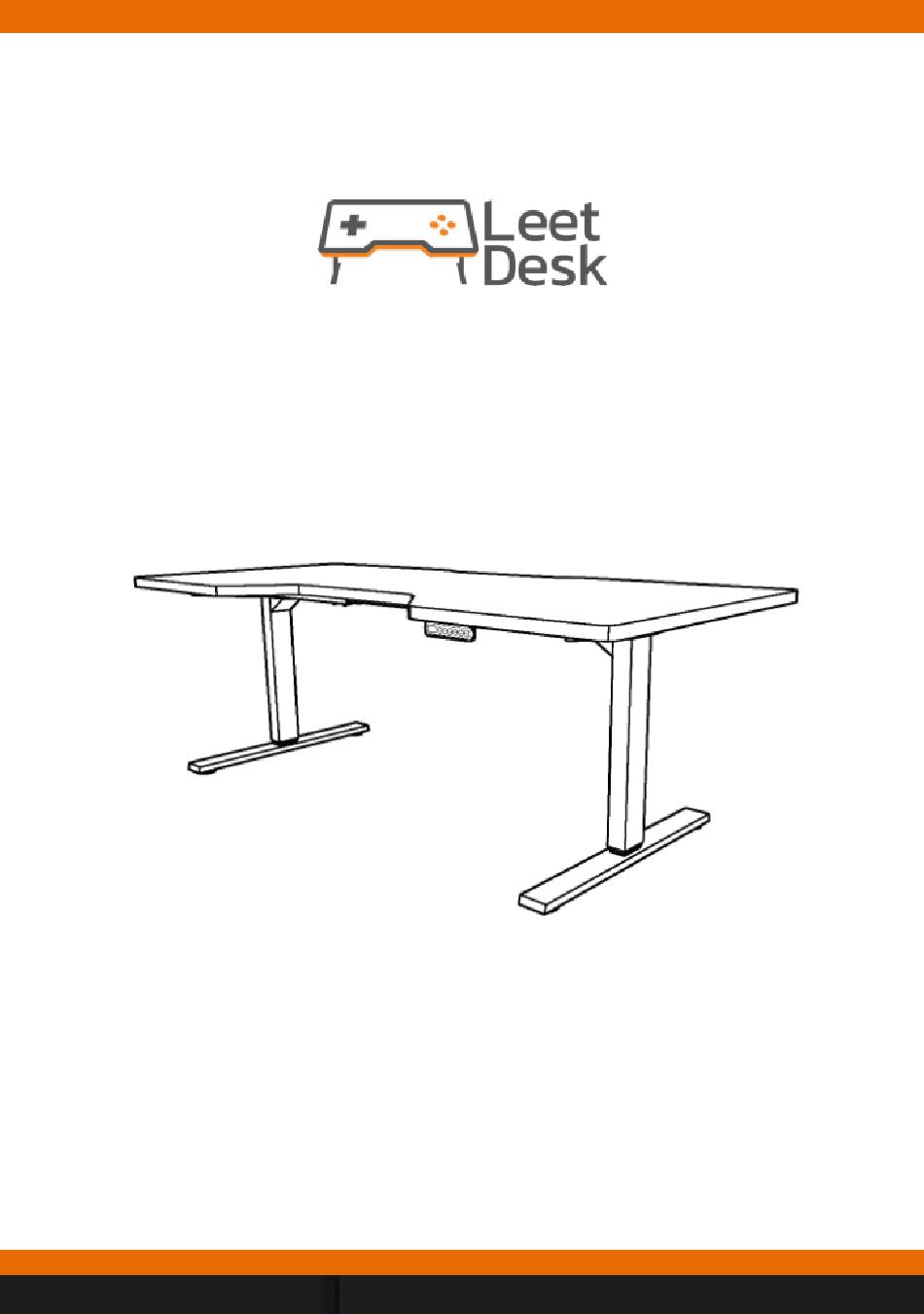

- Page 1 LeetDesk Dark / LeetDesk Light Gaming Desk Assembly & Operating Instructions...
-
Page 2: Table Of Contents
2/27 Table of Contents General Notes About this Manual Proper Usage of the Desk Liability of the Manufacturer Important Safety Instructions Electricity Warning Safety Precautions Assembly Preparation Tools Required Screws Desk Components Step by Step Instructions How to Use Your LeetDesk First Use Factory Reset General Usage... -
Page 3: General Notes
3/27 General Notes About this Manual Please read these instructions completely and carefully and keep them for future reference. These instructions contain important information for the safe and proper use of the desk. If you have any questions about the instructions for use or handling product, please contact... -
Page 4: Liability Of The Manufacturer
4/27 Liability of the Manufacturer The manufacturer is not liable for damage or injury to persons, animals, objects or other goods caused by caused by: ⚠ Improper use ⚠ Incorrect maintenance ⚠ Improper assembly of the product ⚠ Non-compliance with the instructions in this instructions for use ⚠... -
Page 5: Important Safety Instructions
5/27 Important Safety Instructions ⚠ Before each use, make sure that no persons, animals or animals or objects are blocking the LeetDesk. ⚠ Before using the LeetDesk for the first time, make sure that it is not touching any walls or objects and that all cables of your PC and your peripherals (e.g. -
Page 6: Electricity Warning
6/27 Electricity Warning ⚠ All electrical components of the desk must be kept away from water and other liquids. ⚠ Do not twist, bend, crush or strain the power cables of the desk, as this can damage the desk and lead to electric shocks! ⚠... -
Page 7: Safety Precautions
7/27 Safety Precautions ⚠ If your LeetDesk behaves abnormally, e.g. smoke or the emission of loud noises, stop using the desk immediately and disconnect it from the power supply. ⚠ If the desk moves in an unusual way, disconnect it from the power supply and have it inspected by an expert. -
Page 8: Assembly
8/27 Assembly Before starting the assembly, please make sure that all components are present and undamaged. In the rare case, if a component is missing or damaged, please contact us via support@leetdesk.com, and we will help you solve the problem as quickly as possible. Preparation Only assemble the desk with at least two people together. -
Page 9: Tools Required
9/27 Tools Required Allen Key Power Drill or Screwdriver Tape Measure Screws ST5 x 16 ST5 x 20 M6 x 10 M6 x 14 Wooden Screw Wooden Screw Machine Screw Machine Screw... -
Page 10: Desk Components
10/27 Desk Components 1. Tabletop 5. Desk Leg 2. Side Bracket 6. Foot 3. Frame 7. Control Box 4. Center Rail 8. Handset... -
Page 11: Step By Step Instructions
11/27 Step by Step Instructions Before starting assembly, please ensure that all components are present and undamaged. Step 1 Pull the frame (3) apart to expose the center rail (4). Remove the control box (7) and put it aside for the time being. - Page 12 12/27 Step 2 Place the desk legs (5) on the outside right and left between the frame (3) and align the holes in the desk legs and the frame. Note: Make sure that the mounting rail of the control box is pointing upwards.
- Page 13 13/27 Step 3 Now take the side covers (2) and slide them onto the frame (3) from the outside on the right and left. Fasten the side covers (2) with the enclosed M6x14 machine screws (12) (long screws). Note: If one of the rubber rings in the desk frame falls out during this process, simply reinsert it.
- Page 14 14/27 Step 4 Place the desk frame on the floor and make sure that the openings of the center rails (4) are aligned with each other. Insert the center rail (4) into the frame (3) on both sides.
- Page 15 15/27 Step 5 Place the feet (6) on the desk legs (5) and ensure that the holes in the two components are aligned. Now take the M6x14 machine screws (12) (longer screws) and insert them into the holes. Tighten the screws with a 4 mm Allen key.
- Page 16 16/27 Step 6 Lay the tabletop (1) flat on the floor or a protective mat so that the pre-drilled holes are facing upwards. Position the frame on the desktop and align the frame (3) so that the pre-drilled holes match the holes in the frame. Insert the M6x10 machine screws (11) (shorter screws) into the holes in the frame to fix the center rail and tighten them with a 4 mm Allen key.
- Page 17 17/27...
- Page 18 18/27 Step 7 Note: All our LeetDesk models already have pre-drilled holes on the underside of the tabletop, which you can use to align the desk frame. Now take the ST5x20 wood screws (10) and insert them into the corresponding holes on the side brackets and on the frame of the desk.
- Page 19 19/27 Cable management If you have ordered our cable management rail, align the holes in the rail with the 4 pre-drilled holes and use the wood screws supplied to secure it. PC holder If you have ordered our PC holder, please read the separate instructions by scanning the QR code or by going to our website at link.leetdesk.com/pc-holder Note:...
- Page 20 20/27 Step 8 Position the handset (8) on the right or left side of the pre-drilled holes, depending on which side you prefer. Attach the handset to the underside of the table top using the ST5x16 wood screws (9). Step 9 Plug the cables of the desk legs into the control box (a).
- Page 21 21/27 Step 10 Using at least two people, carefully turn the assembled desk with the desktop facing upwards (b). To do this, take hold of one foot of the desk (not the tabletop) and turn the desk with the tabletop upwards. If necessary, adjust the built-in glides on the legs (6).
-
Page 22: How To Use Your Leetdesk
22/27 Plug the power cable into a 230 volt socket (c). Use the supplied cable clamps to organize and secure your cables. How to Use Your LeetDesk First Use Before using your LeetDesk for the first time, make sure that there are no objects or items in the LeetDesk's range of movement. -
Page 23: Factory Reset
23/27 Factory Reset Before you use your LeetDesk for the first time, you must reset the LeetDesk control unit: Step 1 Move the desk to the lowest position by pressing and holding the minus button until the desk reaches the lowest position. Step 2 Then release the minus button, press and hold it again until the control unit display shows "RST". - Page 24 24/27 Step 3 Press and hold the minus button again until the desk moves down a little and then moves up a little again and then stops. Now release the button. The desk height should now be shown again on the handset display.
-
Page 25: General Usage
25/27 General Usage 1. Move your LeetDesk up and down using the up/+ and Down/- buttons. Simply hold down the corresponding button until the desk has reached the desired height. The current height of the desk is shown on the display of the Handset Display. 2. -
Page 26: Technical Specifications
26/27 Technical Specifications FIELD SPECIFICATIONS Maximum load capacity 100 kg Maximum lifting distance 650 mm Lowest position 63 cm Highest position 128 cm Voltage 220 V - 240 V, 50 Hz Operating Cycle Movement speed (no load) 38 mm/s Troubleshooting PROBLEM SOLUTION Desk is not working properly... - Page 27 Product numbers: 1337-1, 1337-2, 1337-3 Plenipotentiary for the collection of technical documents: ODYN GmbH, Oststraße 116, 40210 Düsseldorf We hereby declare that the products mentioned above meet all the requirements of the "Maschinenrichtlinie 2006/42/EG". The above mentioned products also meet the requirements for...
