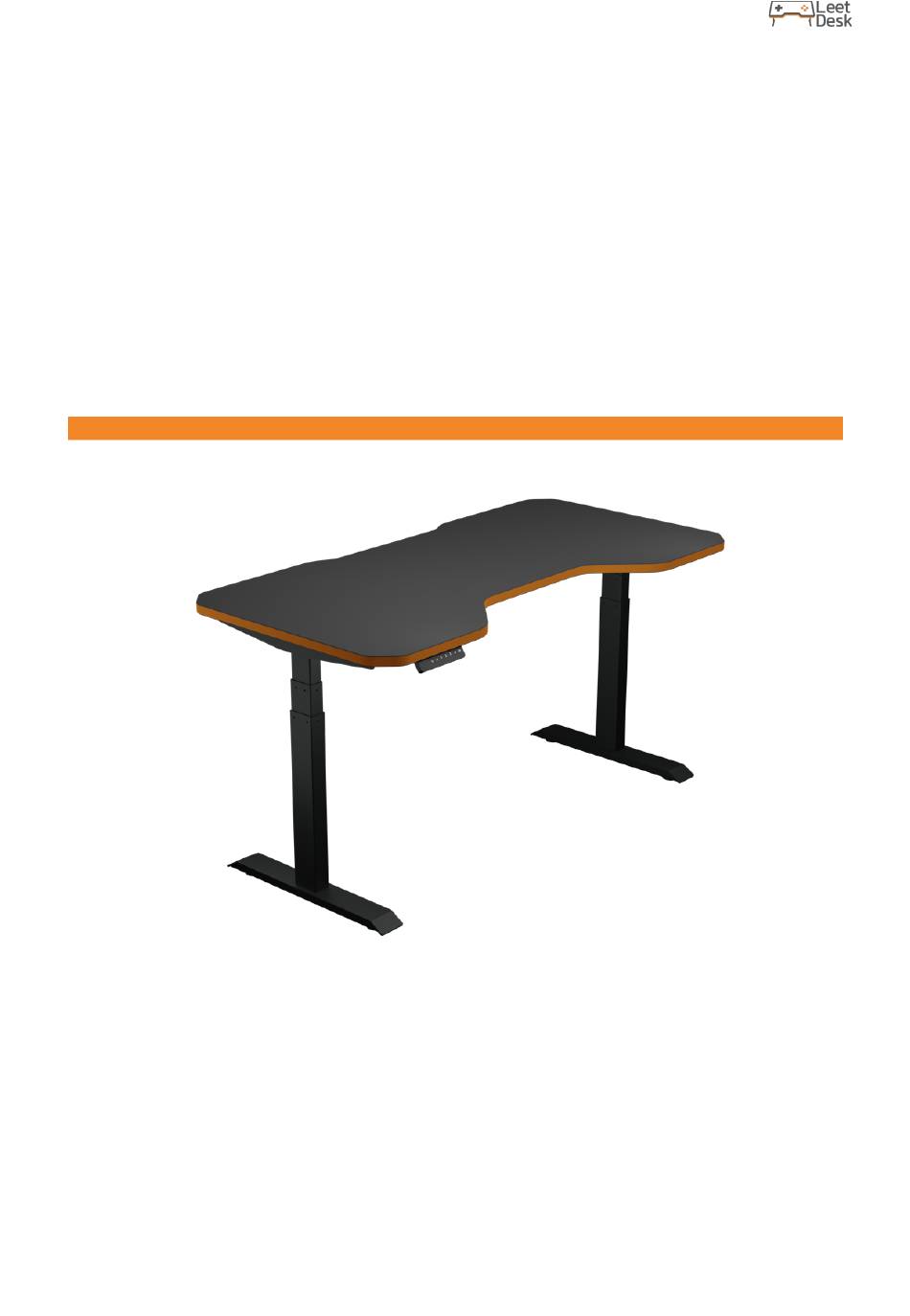

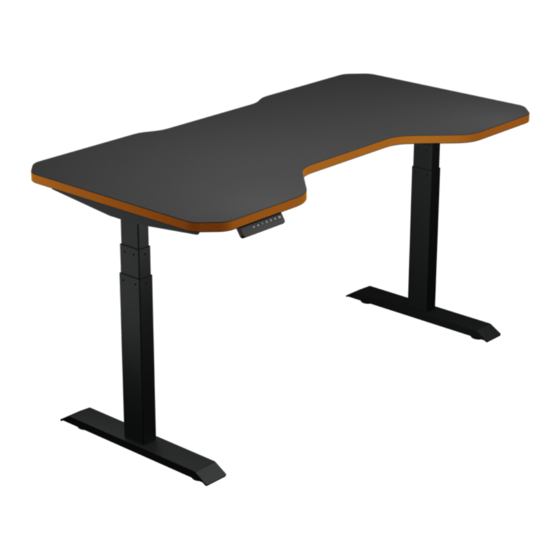

- Page 1 LeetDesk Electrically Height-adjustable Gaming Desk Assembly & Instruction manual...
-
Page 2: Table Of Contents
Table of Contents GENERAL NOTES AND LIABILITIES --------------------------------------- 2 ------------------------------------------------- 2 BOUT THIS MANUAL ------------------------------------------- 2 ROPER USAGE OF THE DESK --------------------------------------------- 2 ANUFACTURER LIABILITY IMPORTANT SAFETY NOTES --------------------------------------------- 3 ------------------------------------------------- 4 LECTRICITY WARNING ------------------------------------------------- 5 AFETY RECAUTIONS ASSEMBLY -------------------------------------------------------------- 6 -------------------------------------------------------- 6 REPARATION ----------------------------------------------------- 7... -
Page 3: General Notes And Liabilities
General notes and liabilities About this manual Please read this manual carefully and keep it for future reference. This manual contains information for a safe and proper usage of your LeetDesk. Should you have any questions, please contact us at info@leetdesk.com. Proper usage of the desk LeetDesk is only meant to be used as an electrically height- adjustable desk in closed rooms. -
Page 4: Important Safety Notes
Important safety notes Ensure at all times that the area surrounding the desk is clear of persons, animals and objects in order to avoid any damage to them or the desk. Before using the desk, make sure there are no objects or obstacles blocking your LeetDesk. -
Page 5: Electricity Warning
Electricity warning Any electrical components of the desk are not to be exposed to water or any other liquids. Do not twist, bend, squeeze or strain the cables of the desk as this will lead to damaging your desk or to an electric shock. Keep children away from the desk, especially the electrical components such as power cable, control box and handset. -
Page 6: Safety Precautions
Safety Precautions In case of unusual occurrences, such as smoke or loud noises, immediately cease operation of the desk and unplug it from the power outlet. Should the desk move in an unusual, non-intended way, unplug the desk from the power outlet and get it checked by a professional. -
Page 7: Assembly
Assembly Before starting to assemble the desk, please make sure that all your components in the box are present and undamaged. In the unlikely event that a part is missing or even damaged, please contact us at info@leetdesk.com. Preparation Only attempt to assemble the desk with at least two persons. All persons assembling the desk have to read this instruction manual. -
Page 8: Required Tools
Required Tools 4mm Allen Wrench (included) 6mm Allen Wrench (included) Head Screwdriver or Power Drill Tape Measure Desk Parts... -
Page 9: Step-By-Step Assembly
Step-by-step assembly Before assembling your desk, make sure that all the previously listed components are present. Step 1 Align the holes of the side bracket (1), the frame (2) and the table leg (4). Then put the M6×35 machine screw with round head (marked with the blue dot) (11) into the holes and tighten the screws with a 4mm hexagon wrench. - Page 10 Step 2 Insert the center rail (3) into the frame (2) on both sides, and adjust the appropriate position (note: the word "MAX" on the center rail must not be completely exposed). Then put the M6x30 machine screw with the round head (13) into the position as shown in the figure and tighten it with a 4mm hexagon wrench.
- Page 11 Step 3 Align the holes on the foot (5) with the holes on the table leg (4). Put the M10×30 countersunk head machine screws (14) into the foot, and tighten the screws with a 6mm hexagon wrench. If one of the rubber rings falls out during this process, simply put them back in.
- Page 12 Step 4 Information: All our LeetDesk models will already have pre- drilled holes in the tabletop for you to align your table frame with. Put the table frame on the tabletop and adjust the position of the table frame to match the position of the pre-drilled holes. Put the ST5×20 wood screws (10) into the corresponding holes on the side bracket (1) and fix them with a screwdriver.
- Page 13 Step 5 Adjust the position of the control box (7) and the adapter (9) with the pre-drilled holes in the tabletop. Fix the ST5×20 wood screws (10) into the holes on both sides of the control box (7). Put the adapter buckle (8) on the adapter (9), and fix the ST5×20 wood screws (10) into the holes on both sides of the adapter buckle (8).
- Page 14 Cable Management: If you have ordered our cable management rail, align the holes of the rail with the 4 pre-drilled holes and use the wood screws included in the package. PC Holder: If you have ordered our PC Holder, please refer to the separate PDF.
- Page 15 Step 6 Put the handset (6) on the edge of the tabletop wherever you like. Fix the handset on the tabletop with the ST5×16 wood screws (12). Plug the wire of the handset into the control box (7).
- Page 16 Step 7 Turn the assembled desk right side up. With at least two people, grab the foot of the desk (not the tabletop) and turn the desk on the right side up. Adjust the pre-installed glides on the feet (5) if needed. Step 8 Plug the power cord (15) into a 230V outlet.
-
Page 17: How To Use Your Leetdesk
How to use your LeetDesk First Use Before first use, please make sure that there are no obstacles in the way of the LeetDesk when moving it up or down. Make sure, that your desk is not directly touching the wall, as it could potentially damage your walls during movement. -
Page 18: General Usage
General usage Move your LeetDesk up and down with the Up/+ and Down/- buttons respectively. Simply press and hold the corresponding buttons until the desk has reached your preferred height. The current height will be displayed on the handset. You can save your preferred height settings with the memory setting. -
Page 19: Technical Specifications
Technical specifications Maximum lifting capacity 80 kg Maximum stroke 650 mm Lowest position 63 cm Highest position 128 cm Voltage 220 V - 240 V, 50 Hz Usage Cycle 10% (2 minutes constant movement, 18 minutes off) Movement speed (no load) 38 mm/s Troubleshooting Table is not working properly... - Page 20 Product numbers: 1337-1, 1337-2, 1337-3 Plenipotentiary for the collection of technical documents: ODYN GmbH, Oststraße 116, 40210 Düsseldorf We hereby declare, that the products mentioned above meet all the requirements of the "Maschinenrichtlinie 2006/42/EG". The above mentioned products also meet the requirements...
