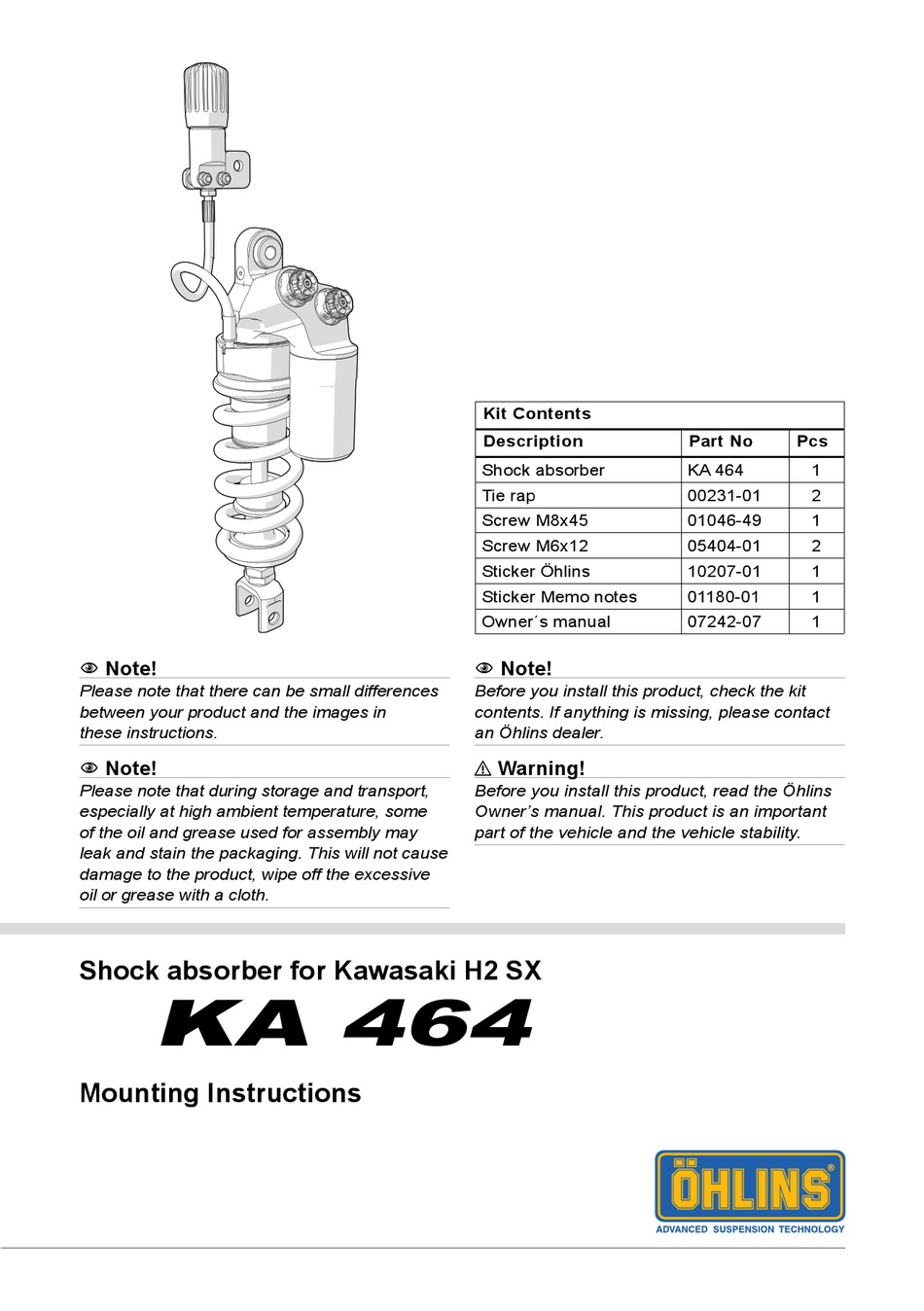

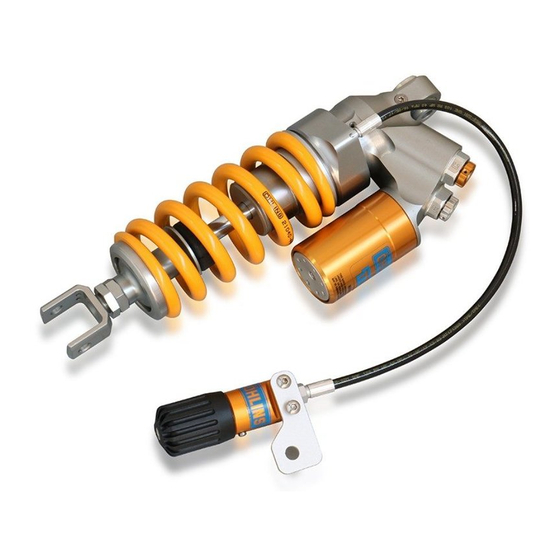

Shock absorber for Kawasaki H2 SX
KA 464
Mounting Instructions
Kit Contents
Description
Shock absorber
Tie rap
Screw M8x45
Screw M6x12
Sticker Öhlins
Sticker Memo notes
Owner´s manual
otee!
1
Before you install this product, check the kit
contents. If anything is missing, please contact
an Öhlins dealer.
⚠
arninge!
Before you install this product, read the Öhlins
Owner's manual. This product is an important
part of the vehicle and the vehicle stability.
Part
o
Pcs
KA 464
1
00231-01
2
01046-49
1
05404-01
2
10207-01
1
01180-01
1
07242-07
1
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Öhlins KA 464
Summary of Contents for Öhlins KA 464
- Page 1 Kit Contents Description Part Shock absorber KA 464 Tie rap 00231-01 Screw M8x45 01046-49 Screw M6x12 05404-01 Sticker Öhlins 10207-01 Sticker Memo notes 01180-01 Owner´s manual 07242-07 otee! otee! Please note that there can be small differences Before you install this product, check the kit between your product and the images in contents.
- Page 2 MOU TI G I STRUCTIO S ⚠ arninge! We strongly recommend to let an Öhlins dealer install this product. ⚠ arninge! If you work with a lifted vehicle, make sure that it is safely supported to prevent it from tipping over. otee! When you work with this product, see the vehicle service manual for vehicle specific...
- Page 3 MOU TI G I STRUCTIO S Mount the Öhlins preload adjuster at the silencer bracket. Use supplied screw M8x45. Tie the hose using supplied ty-raps. Fasten the brake fluid reservoir using supplied screws M6x12.
- Page 4 ADJUSTME TS Spring preload ⚠ arninge! adjuster Before you ride/drive, always make sure that the setup is according to the recommended setup data. Read about adjustments and setting up in the Öhlins Owner’s Manual before you make any adjustments. Contact an Öhlins dealer if you have any questions about setting up.
