Öhlins HO 201 Owner's Manual

F1
R1
R2
Bike on a stand. Bike on the ground.
14
Refit the side covers, the heat shield, the chain
cover and the seat.
NOTE!
Make sure that all bolts are tightened to the correct
torque and that nothing fouls or restricts movement
of the shock absorber when the suspension is
being fully compressed or extended.
15
Continue your work according to the Owner´s
Manual, section adjustments.
Setup data
Shock absorber length 283 mm
Shock absorber stroke 50 mm
Spring preload 10 mm
Rebound damping adjuster 15 clicks
Compression damping adj. 12 clicks
Öhlins Racing AB, Box 722, S-194 27 Upplands Väsby, Sweden.
Phone +46 8 590 025 00. Fax +46 8 590 025 80.
F2
R3
Bike with rider on.

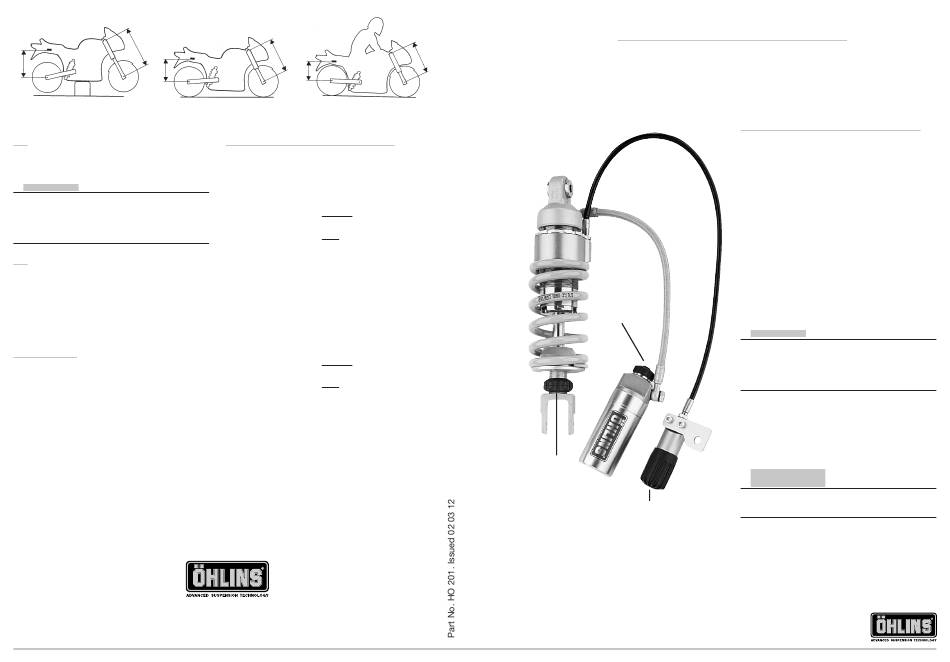

Checking sag and ride height
Front suspension
F1. Bike on a stand with the
suspension fully extended
F2. Bike on the ground without rider = ............
F3. Bike on the ground with rider
F1 - F2 = ............
Free sag
F1 - F3 = ............
Ride height
Rear suspension
R1. Bike on a stand with the
suspension fully extended
R2. Bike on the ground without rider = ........... .
R3. Bike on the ground with rider
R1 - R2 = ............
Free sag
R1 - R3 = ............
Ride height
www.ohlins.com
F3
= ............
= ............
= ............
= ............
Rebound
damping
adjuster
© Öhlins Racing AB. All rights reserved. Any reprinting or unauthorized use without the
Owners Manual
Mounting instructions Öhlins shock absorber kit
HO 201 for Honda CB 900 F Hornet

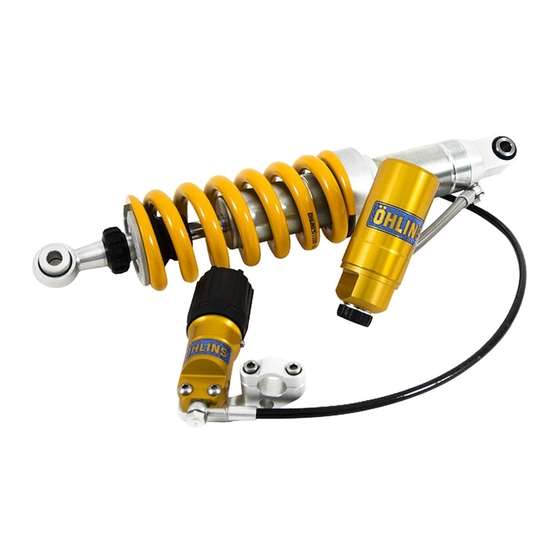

Öhlins shock absorber 46 HRCS
Your Öhlins shock absorber type 46 HRCS
features the following adjusters:
Compression damping adjuster
Adjustments are made on top of the reservoir.
Rebound damping adjuster
Adjuster wheel on the piston shaft above the end
bracket.
Spring preload adjuster
Adjustments are made by turning the knob on
the hydraulic adjuster. Clockwise for harder
adjustment, counter clockwise too release the
Compression
preload.
damping
adjuster
When delivered the Öhlins shock absorber is
dialed to recommended settings for the specific
brand and make of the motorcycle. If you have
changed the setting check like this:
The adjusters have a normal right hand thread. Turn
the damping adjusters clockwise to fully closed (pos.
zero [0]). Turn counter clockwise to open and count
the clicks until you reach the recommended number
of clicks. See Setup data at last page.
Do not use to much force, delicate sealing surfaces
Spring
can be damaged.
preload
adjuster
written permission of Öhlins Racing AB is prohibited. Printed in Sweden.
NOTE!
CAUTION!
