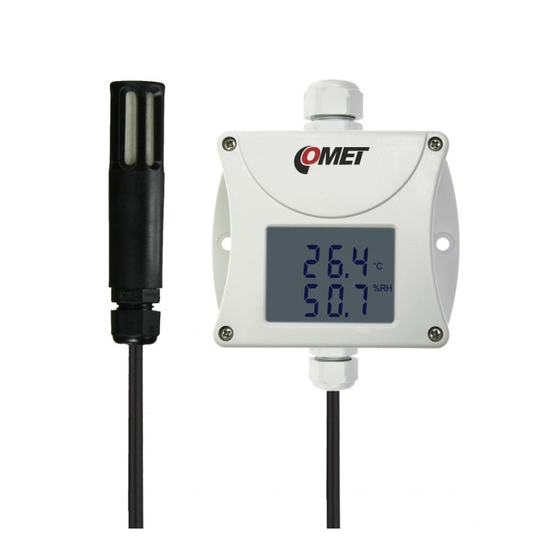

- Page 1 T0211 TRANSMITTER Programmable transmitter of temperature, relative humidity and other derived humidity values with 0 to 10 V outputs Instruction Manual...
- Page 2 Instruction manual for use of T0211 transmitter Transmitter is designed for measurement of air temperature and relative humidity of air without aggressive ingredients with computing one of the following values: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy. Instrument is equipped with an external humidity and temperature probe on a cable.
- Page 3 Range and type of value for output 1 (Uout 1 = symbol „1“on display). Type of value, assigned to output 1, is indicated by displayed unit (here %RH = relative humidity). Upper line displays voltage value corresponding to measured value (lower line). IE-SNC-T0211-01...
- Page 4 Accuracy: ± 0.4 °C Relative humidity (RH reading is compensated at the entire temperature range): Measuring range: 0 to 100 %RH (see Installation of the transmitter) Display resolution: 0.1 %RH Accuracy: ± 2.5 %RH from 5 to 95 %RH at 23 °C IE-SNC-T0211-01...
- Page 5 This value depends on the atmospheric pressure. For computing is used constant value stored inside device memory. Default value preset by manufacturer is 1013hPa and can be changed by user’s software. This maximum is reached under conditions about 70°C/100%RH or 80°C/70%RH IE-SNC-T0211-01...
- Page 6 30. • Click on button Save to store new setting to the transmitter. Click on button Disconnect to let transmitter setting without changes. • Disconnect the cable from the transmitter and place the lid back to the transmitter. IE-SNC-T0211-01...
- Page 7 A/D converter). No measurement and calculations of values are proceeded. It is a serious error, contact distributor of the instrument. End of operation Device itself (after its life) is necessary to liquidate ecologically! Technical support and service Technical support and service is provided by distributor. For contact see warranty certificate. IE-SNC-T0211-01...
- Page 8 Notes: IE-SNC-T0211-01...
