Summary of Contents for Comet T0213

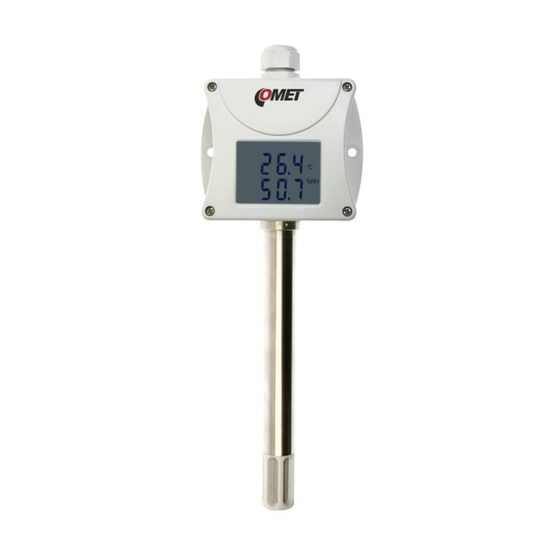

- Page 1 T0213 TRANSMITTER Programmable transmitter of temperature, relative humidity and other derived humidity values with 0 to 10 V outputs Instruction Manual...
- Page 2 Instruction manual for use of T0213 transmitter Transmitter is designed for measurement of temperature and relative humidity of air without aggressive ingredients with computing one of the following values: dew point temperature, absolute humidity, specific humidity, mixing ratio and specific enthalpy. Measuring temperature and relative humidity sensors are non-removable instrument parts.
- Page 3 Here 10 V corresponds to 100 %RH. Press button again to display range and type of value for output 2 (symbol „2“). Here it is ambient temperature („°C“), when 0 V corresponds to -30 °C. If dew IE-SNC-T0213-05...
- Page 4 Accuracy: ± 0.4 °C from –30 to 100 °C, otherwise 0.4 % from reading Relative humidity (RH reading is compensated at the entire temperature range): Measuring range: 0 to 100 %RH (see Installation of the transmitter) Display resolution: 0.1 %RH Accuracy: ± 2.5 %RH from 5 to 95 %RH at 23 °C IE-SNC-T0213-05...
- Page 5 This value depends on the atmospheric pressure. For computing is used constant value stored inside device memory. Default value preset by manufacturer is 1013hPa and can be changed by user’s software. This maximum is reached under conditions about 70°C/100%RH or 80°C/70%RH IE-SNC-T0213-05...
- Page 6 Storing conditions: temperature -30 to +80 °C, humidity 0 to 100 %RH without condensation Dimensions: the case with electronics 89 x 73 x 37 mm, stem length 150mm Weight: T0213 approximately 250 g Material of the case: ABS, stem from stainless steel Optional accessory...
- Page 7 There is a reading „Err3“ on LCD display upper line. Error of internal A/D converter appeared (converter doe not respond, probably damage of A/D converter). No measurement and calculations of values are proceeded. It is a serious error, contact distributor of the instrument. IE-SNC-T0213-05...
- Page 8 End of operation Device itself (after its life) is necessary to liquidate ecologically! Technical support and service Technical support and service is provided by distributor. For contact see warranty certificate. IE-SNC-T0213-05...
