FB1100/FB1200 Flow Computer
Termination Board
Field Replacement Guide
For Part Numbers (Kits):
Remote Automation Solutions
FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide
399185-01-1
400216010-KIT
395791014-KIT
395803000-KIT
D301820X012
November 2020

Advertisement

loading

  Summary of Contents for Emerson FB1100

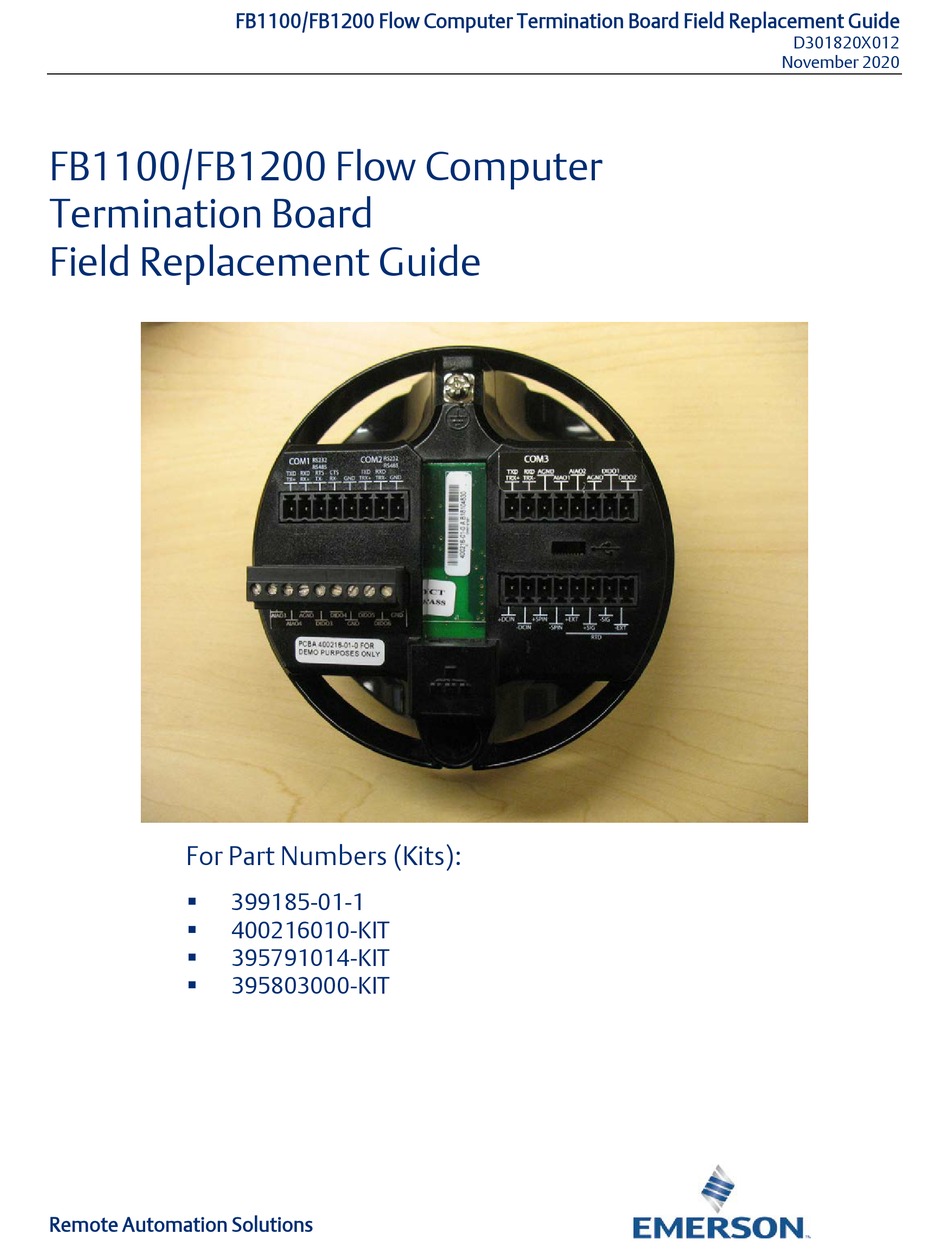

  • Page 1 FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide D301820X012 November 2020 FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide For Part Numbers (Kits): 399185-01-1  400216010-KIT  395791014-KIT  395803000-KIT  Remote Automation Solutions...
  • Page 2: System Training

    Our full-time professional instructors can conduct classroom training at several of our corporate offices, at your site, or even at your regional Emerson office. You can also receive the same quality training via our live, interactive Emerson Virtual Classroom and save on travel costs. For our complete schedule and further information, contact the Remote Automation Solutions Training Department at 800-338-8158 or email us at education@emerson.com.
  • Page 3 If not already done, be sure to label all wires before disconnecting so you can identify them later during the rewiring process. The FB1100 Flow Computer includes a single type of termination board that uses 6-connector pluggable terminal blocks. The FB1200 Flow Computer supports the same termination board and blocks. In addition, if the FB1200 Flow Computer is purchased with the 6-channel expansion I/O board, it uses a different termination board with 8 (or in one case 9) connector pluggable terminal blocks.
  • Page 4 FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide D301820X012 November 2020 The basic methods for replacing termination boards or for replacing termination blocks are the same. The only differences occur in the number of connectors on a terminal block used on a termination board.
  • Page 5 4 Digital Outputs: 0.5A, 24Vdc 2 Analog Outputs: 4-20 mA Important Only use accessories supplied with the flow computer or sold by Emerson as spare parts for this flow computer. Substituting a part you obtain elsewhere (such as a battery) voids your approval certification.
  • Page 6: Removing/Replacing The Hmi Module

    FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide D301820X012 November 2020 DANGER EXPLOSION HAZARD: Ensure the area in which you perform this operation is non-hazardous. Performing this operation in a hazardous area could result in an explosion. DANGER EXPLOSION HAZARD: Never remove end cap(s) in a hazardous location. Removing cover(s) in a hazardous location could result in an explosion.
  • Page 7 FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide D301820X012 November 2020 Front End Cap Rear End Caps Unscrew the end cap turning it counter-clockwise until the cover comes off. Set it aside in a safe location. Note If you need more leverage place a long screwdriver or other appropriate tool across the two notches in the cover to act as a pry bar.
  • Page 8 FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide D301820X012 November 2020 Captive Fastening Screws With a #1 Phillips-head screwdriver, loosen the two bottom captive fastening screws on the HMI module. Leave the two top screws on the HMI module connected to the battery pack enclosure.
  • Page 9 FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide D301820X012 November 2020 If the battery pack enclosure holds an internal battery, disconnect the battery connector. Set the battery pack enclosure/HMI module assembly. Look into the housing from the front. Two captive fastening screws on the inside of the...
  • Page 10 FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide D301820X012 November 2020 With a #2 Phillips-head screwdriver loosen the two captive fastening screws. Now grasp the termination board bezel from the back of the unit and pull out the termination board assembly.
  • Page 11 FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide D301820X012 November 2020 You should be able to see through the housing from back to front and see the opposite end of the captive fastening screws that you saw in Steps 11 and 12.
  • Page 12 Class I, Division 2, Groups A, B, C, D Flow Computer 6-connector pluggable terminal block Field Installed Accessory Kit Part  No. 395791014-KIT for use with UL Listed Model Series FB1100. Flow Computer 8-connector pluggable terminal block Field Installed Accessory Kit Part ...
  • Page 13 FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide D301820X012 November 2020 If you have more than one terminal block to replace, we recommend you replace one terminal block at a time to avoid confusion. Remove the rear end cap by first removing the retaining clamp on the end cap (if present) using a 3 mm hexagonal wrench.
  • Page 14 FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide D301820X012 November 2020 Note If you need more leverage place a long screwdriver or other appropriate tool across the two notches in the cover to act as a pry bar. Rear End Cap Removal Remove power at terminal block TB1.
  • Page 15 FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide D301820X012 November 2020 For the terminal block you want to replace, make sure you note which wire goes to which terminal. If they aren’t labeled, you should label them, or take a digital photo so you know which wire goes to which connector of the terminal block.
  • Page 16 FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide D301820X012 November 2020 You can now plug your new terminal blocks back into the termination board, leaving TB1 last for when you want to restore power. Carefully align the end cap threads with the threads of the enclosure and replace the rear end cap.
  • Page 17 FB1100/FB1200 Flow Computer Termination Board Field Replacement Guide D301820X012 November 2020...
  • Page 18 Emerson Automation Solutions Remote Automation Solutions Emerson FZE P.O. Box 17033 © 2018-2020 Remote Automation Solutions, a business unit of Emerson Automation Jebel Ali Free Zone – South 2 Solutions. All rights reserved. Dubai U.A.E. This publication is for informational purposes only. While every effort has been made to ensure...
