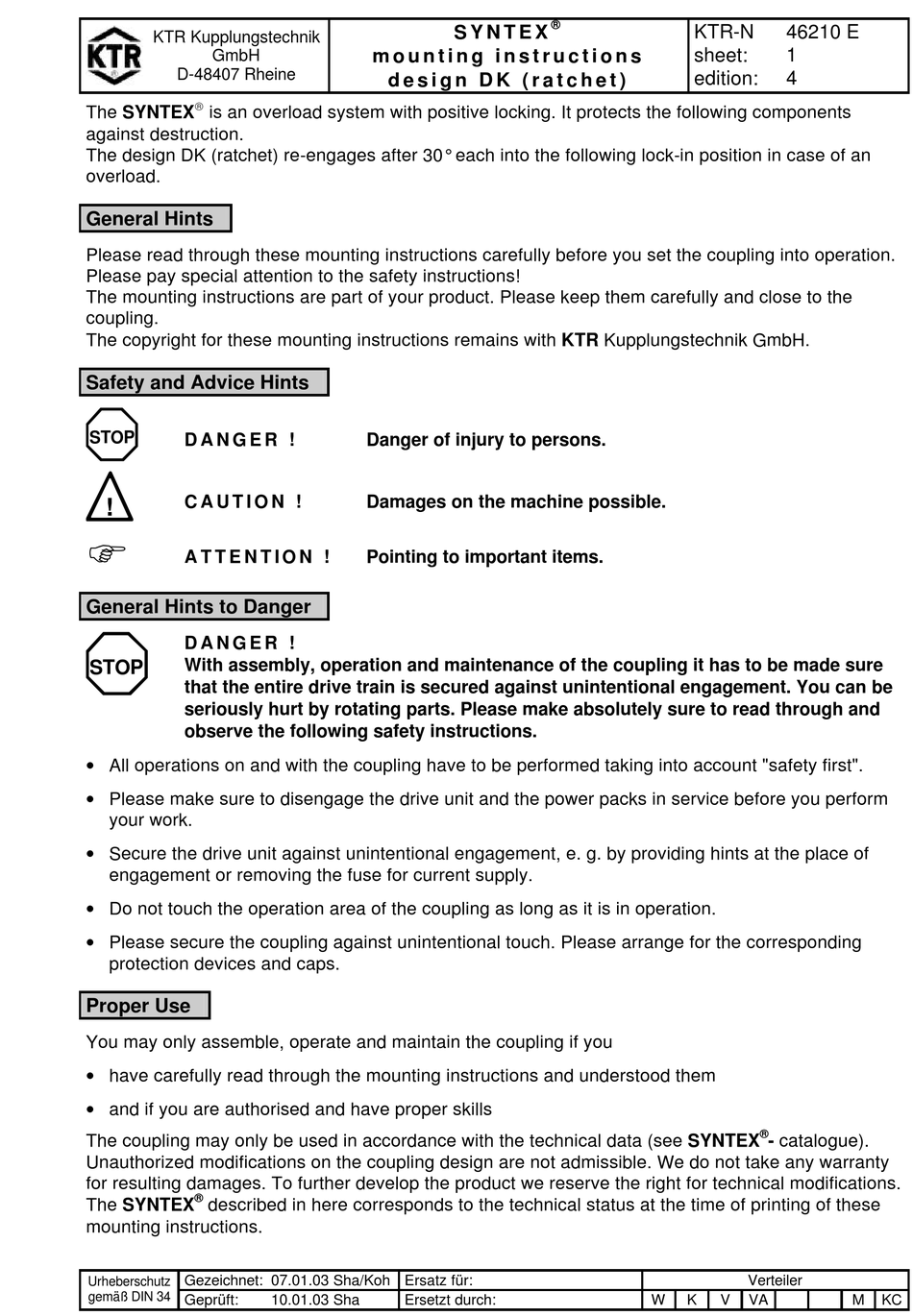

KTR SYNTEX Mounting Instructions

KTR Kupplungstechnik
GmbH
D-48407 Rheine
®
The SYNTEX is an overload system with positive locking. It protects the following components
against destruction.
The design DK (ratchet) re-engages after 30° each into the following lock-in position in case of an
overload.
General Hints
Please read through these mounting instructions carefully before you set the coupling into operation.
Please pay special attention to the safety instructions!
The mounting instructions are part of your product. Please keep them carefully and close to the
coupling.
The copyright for these mounting instructions remains with KTR Kupplungstechnik GmbH.
Safety and Advice Hints
STOP
D A N G E R !
C A U T I O N !
!
F
A T T E N T I O N !
General Hints to Danger
D A N G E R !
With assembly, operation and maintenance of the coupling it has to be made sure
STOP
that the entire drive train is secured against unintentional engagement. You can be
seriously hurt by rotating parts. Please make absolutely sure to read through and
observe the following safety instructions.
• All operations on and with the coupling have to be performed taking into account "safety first".
• Please make sure to disengage the drive unit and the power packs in service before you perform
your work.
• Secure the drive unit against unintentional engagement, e. g. by providing hints at the place of
engagement or removing the fuse for current supply.
• Do not touch the operation area of the coupling as long as it is in operation.
• Please secure the coupling against unintentional touch. Please arrange for the corresponding
protection devices and caps.
Proper Use
You may only assemble, operate and maintain the coupling if you
• have carefully read through the mounting instructions and understood them
• and if you are authorised and have proper skills
The coupling may only be used in accordance with the technical data (see SYNTEX
Unauthorized modifications on the coupling design are not admissible. We do not take any warranty
for resulting damages. To further develop the product we reserve the right for technical modifications.
®
The SYNTEX described in here corresponds to the technical status at the time of printing of these
mounting instructions.
Gezeichnet: 07.01.03 Sha/Koh Ersatz für:
Urheberschutz
gemäß DIN 34
Geprüft:
m o u n t i n g i n s t r u c t i o n s
d e s i g n D K ( r a t c h e t )
Danger of injury to persons.
Damages on the machine possible.
Pointing to important items.
10.01.03 Sha Ersetzt durch:
®
S Y N T E X
KTR-N 46210 E
sheet: 1
edition: 4
®
- catalogue).
