B o W e x - E L A S T I C
Operating-/Assembly Instructions
Design 065 (HEW1 and HEW2)
®

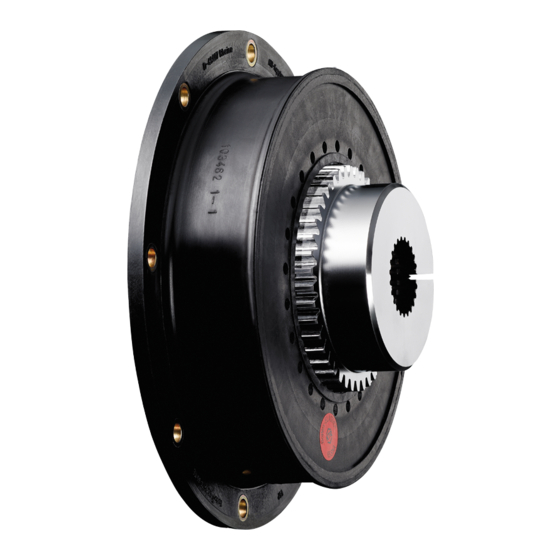

HEW is a high flexible plug-in shaft coupling. It damps torsional
®
HEW coupling compensates for relatively considerable shaft
08.04.04 Sha/Hk
08.04.04 Sha
®
hazardous areas
Ersatz für:
Ersetzt durch:
KTR-N
40114 E
sheet:
1
edition:
4
KTR-N vom 01.12.99
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KTR BoWex-Elastic
Summary of Contents for KTR BoWex-Elastic
-
Page 1: Table Of Contents
GmbH D-48407 Rheine edition: Design 065 (HEW1 and HEW2) ® The BoWex-ELASTIC HEW is a high flexible plug-in shaft coupling. It damps torsional oscillations, decreases shocks and is impact sound insulating. ® The BoWex-ELASTIC HEW coupling compensates for relatively considerable shaft displacements caused by e. -
Page 2: Technical Data
KTR Kupplungstechnik sheet: Operating-/Assembly Instructions GmbH D-48407 Rheine edition: Design 065 (HEW1 and HEW2) 1 Technical Data ® ® picture 1: BoWex-ELASTIC design HEW1 picture 2: BoWex-ELASTIC design HEW2 Table 1: dimensions BoWex- finish bore [mm] dimensions [mm] ® ELASTIC... -
Page 3: Hints
When using the coupling in hazardous areas please observe the special hints and instructions regarding safety in enclosure A. The mounting instructions are part of your product. Please keep them carefully and close to the coupling. The copyright for these mounting instructions remains with KTR Kupplungstechnik GmbH. 2.2 Safety and Advice Hints STOP D A N G E R ! Danger of injury to persons. -
Page 4: Proper Use
Quantity Designation elastomer part s. table 1 cap screw DIN 912 setscrew DIN 916 coupling flange ® ® picture 3: BoWex-ELASTIC design HEW1 picture 4: BoWex-ELASTIC design HEW2 Schutzvermerk Gezeichnet: 08.04.04 Sha/Hk Ersatz für: KTR-N vom 01.12.99 ISO 16016 beachten. -
Page 5: Hint Regarding The Finish Bore
• Use screws of the property class 8.8 or higher. • Tighten the screws with a suitable dynamometric key up to the tightening torques T indicated in table 4. Schutzvermerk Gezeichnet: 08.04.04 Sha/Hk Ersatz für: KTR-N vom 01.12.99 ISO 16016 beachten. Geprüft: 08.04.04 Sha Ersetzt durch:... -
Page 6: Displacements - Alignment Of The Couplings
In case of the alignment, the radial and angular displacement should be as slight as possible, because the lifetime is increased hereby under the same operating conditions. ® The alignment of the BoWex-ELASTIC HEW coupling has to be effected from the shaft-sided coupling hub to one of the processed surfaces of the flange hub. - Page 7 ∆Kw (°) max. perm. axial displacement 40 / 50 / 65 ±2 ±2 ±2 ±2 ±2 ±3 ∆Ka (mm) 1) for short-term start Schutzvermerk Gezeichnet: 08.04.04 Sha/Hk Ersatz für: KTR-N vom 01.12.99 ISO 16016 beachten. Geprüft: 08.04.04 Sha Ersetzt durch:...
-
Page 8: Enclosure A
® BoWex -coupling ® picture 8: BoWex-ELASTIC (design HEW1) Here the backlash between the hub and the nylon toothing by the elastomer part must be checked by a torsional backlash. The friction / wear may only be X of the original toothing strength before the nylon elastomer part must be max. -
Page 9: Checking Of Torsional Backlash
Please absolutely observe the displacement figures indicated (see table 5). If the figures are exceeded, the coupling is damaged. picture 10: elastomer part in new condition picture 11: wear of elastomer part Schutzvermerk Gezeichnet: 08.04.04 Sha/Hk Ersatz für: KTR-N vom 01.12.99 ISO 16016 beachten. Geprüft: 08.04.04 Sha Ersetzt durch:... -
Page 10: Permissible Coupling Materials In The Hazardous Area
There can be regular openings in the coverings which may not exceed the following dimensions: circular openings rectangular openings diameter in mm side length in mm top surface of the covering side parts of the covering Schutzvermerk Gezeichnet: 08.04.04 Sha/Hk Ersatz für: KTR-N vom 01.12.99 ISO 16016 beachten. Geprüft: 08.04.04 Sha Ersetzt durch:... -
Page 11: Breakdowns, Causes And Elimination
(consider correspond to the installation space) performance of the 3) assemble new coupling size coupling 4) check alignment Schutzvermerk Gezeichnet: 08.04.04 Sha/Hk Ersatz für: KTR-N vom 01.12.99 ISO 16016 beachten. Geprüft: 08.04.04 Sha Ersetzt durch:... - Page 12 A T T E N T I O N ! KTR does not assume any liabilities or guarantees regarding the use of spare parts and accessories which are not provided by KTR and for the damages resulting here from.
- Page 13 5.8 Certificate of Conformity Certificate of Conformity corresponding to EG Standard 94/9/EG dated 23 March 1994 and to the legal regulations The manufacturer - KTR Kupplungstechnik GmbH, D-48432 Rheine - states that the ® BoWex-ELASTIC - couplings described in these mounting instructions and explosion-proof designed correspond to Article 1 (3) b) of Standard 94/9/EG and comply with the general Safety and Health Requirements according to enclosure II of Standard 94/9/EG.
