Release date: 15.07.19
SMARTPARK is an electronic module, easy to install, that allows you to integrate professionally a ermarket parking sensors on the Volkswagen Group
vehicles equipped with the OEM radio.
The device allows to display on the OEM radio of Volkswagen group the signalling of the parking sensors as it happens for the OEM parking sensors.
FOR THE CORRECT OPERATION OF THE SYSTEM, THE VEHICLE MUST BE ENABLED AT THE DISPLAY, THROUGH THE OFFICIAL DIAGNOSTIC DEVICE
J3
J2
J1
A GND
FRONT SPEAKER
ATTENTION: PLEASE PLACE THE PARKING SENSOR CONTROL UNITS ON THE RIGHT SIDE OF THE VEHICLE
THE SYSTEM ACTIVATES BY INSERTING THE REVERSE AND DEACTIVATES AFTER 10 SECONDS BY REMOVING THE REVERSE
ON / OFF MANUAL OF THE PARKING SENSORS
If the vehicle is equipped with steering wheel controls, by pressing OK bu'on for 3 seconds on the steering
wheel controls, sensors will turn on / off. This opera*on is manageable if the vehicle is driving below 10 km / h

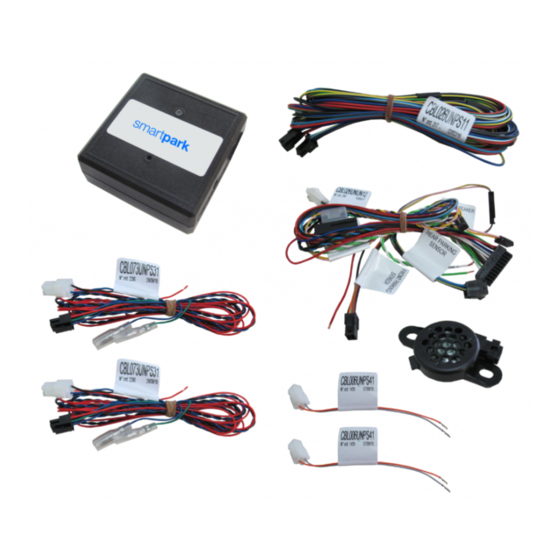

SMART PARK CF0026UNPS51
CANBUS MODULE TO DISPLAY FRONT / REAR PARKING SENSORS ON OEM RADIO SCREEN.
Vodafone R294 - R394 - AMR394/F
INSTALLATION MANUAL
Fakra 40 PINS
CAN L
12 VDC
CAN H
SMARTPARK
SYSTEM WORKS WITH IGNITION ON.
OR EXCEEDING 10 KM / H.
DESCRIPTION
VOLKSWAGEN
CAUTION
OF VOLKSWAGEN.

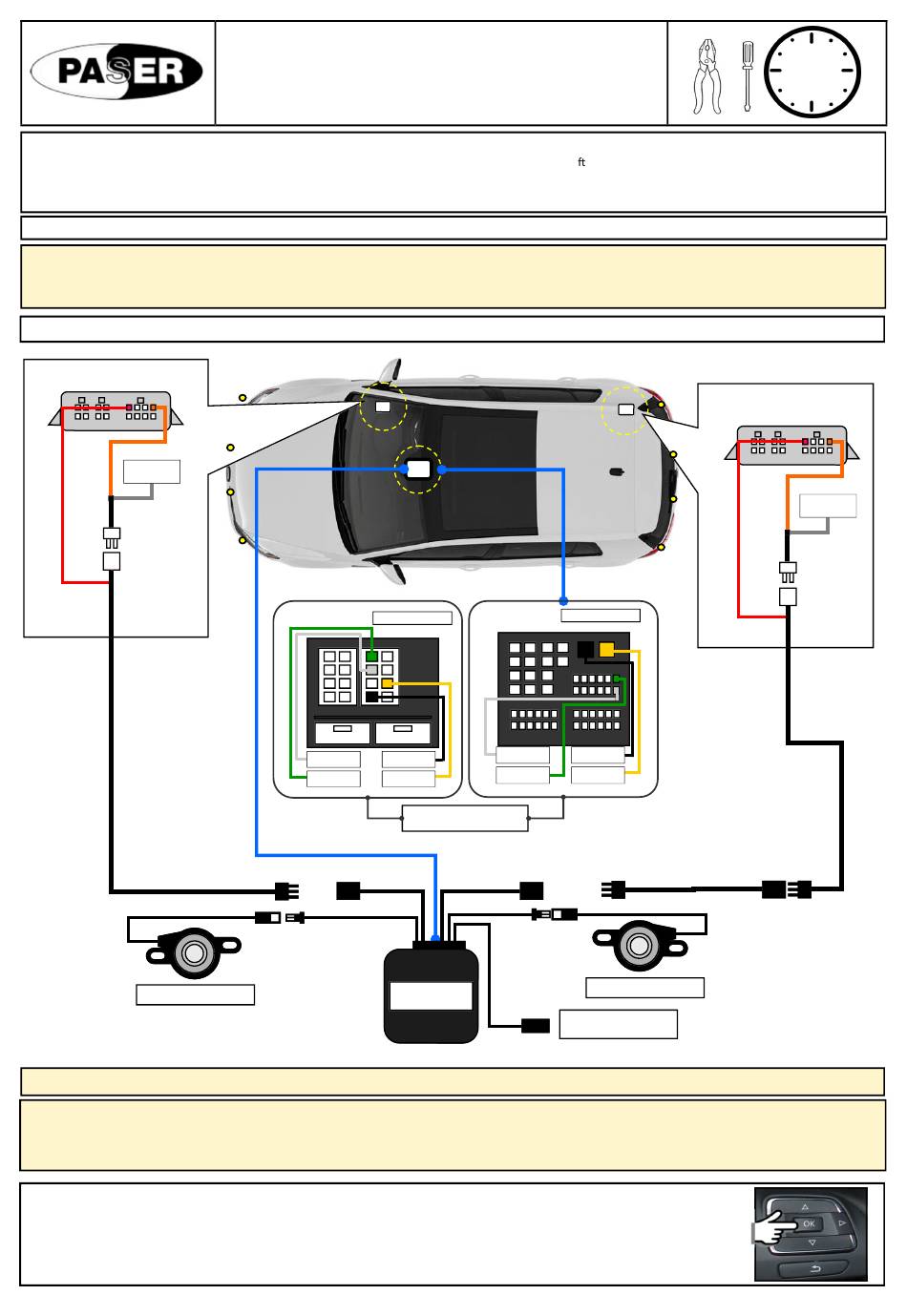

CONNECTIONS
Fakra 52 PINS
CAN L
GND
CAN H
Wires exit view
1 / 5
GND
12 VDC
REAR SPEAKER
REMOTE SWITCH
CONNECTOR
rev 1.0 19
45'
J3
J2
J1
A GND
Advertisement
Related Manuals for Paser CF0026UNPS51
Summary of Contents for Paser CF0026UNPS51
- Page 1 Release date: 15.07.19 rev 1.0 19 SMART PARK CF0026UNPS51 CANBUS MODULE TO DISPLAY FRONT / REAR PARKING SENSORS ON OEM RADIO SCREEN. 45’ Vodafone R294 - R394 - AMR394/F INSTALLATION MANUAL DESCRIPTION SMARTPARK is an electronic module, easy to install, that allows you to integrate professionally a ermarket parking sensors on the Volkswagen Group vehicles equipped with the OEM radio.
-
Page 2: Rear Speaker
Release date: 15.07.19 rev 1.0 19 SMART PARK CF0026UNPS51 CANBUS MODULE TO DISPLAY FRONT / REAR PARKING SENSORS ON OEM RADIO SCREEN. 45’ Vodafone R294 - R394 - AMR394/F INSTALLATION MANUAL ALTERNATIVE CONNECTION DRIVER SIDE LOCATION A GND A GND... - Page 3 Release date: 15.07.19 rev 1.0 19 SMART PARK CF0026UNPS51 CANBUS MODULE TO DISPLAY FRONT / REAR PARKING SENSORS ON OEM RADIO SCREEN. 45’ Vodafone R294 - R394 - AMR394/F INSTALLATION MANUAL AUDI A1 CONNECTIONS A GND A GND CAN L...
- Page 4 Release date: 15.07.19 rev 1.0 19 SMART PARK CF0026UNPS51 CANBUS MODULE TO DISPLAY FRONT / REAR PARKING SENSORS ON OEM RADIO SCREEN. 45’ Vodafone R294 - R394 - AMR394/F INSTALLATION MANUAL DESCRIPTION SMARTPARK is an electronic module, easy to install, that allows you to integrate professionally a ermarket parking sensors on the Peugeot Group vehicles equipped with the OEM radio.
-
Page 5: Troubleshooting
The informa*on in this guide are purely for informa*on purposes, therefore, are subject to change without no*ce. At the *me of publica*on the informa*on is correct and reliable. However Paser can not be held responsible for any consequences resul*ng from errors or omissions in this manual. Paser reserves the right to improve / change the product or manual without obliga*on to no*fy users.
