SUNSTONE Ruby Companion Pro Instructions Manual page 10

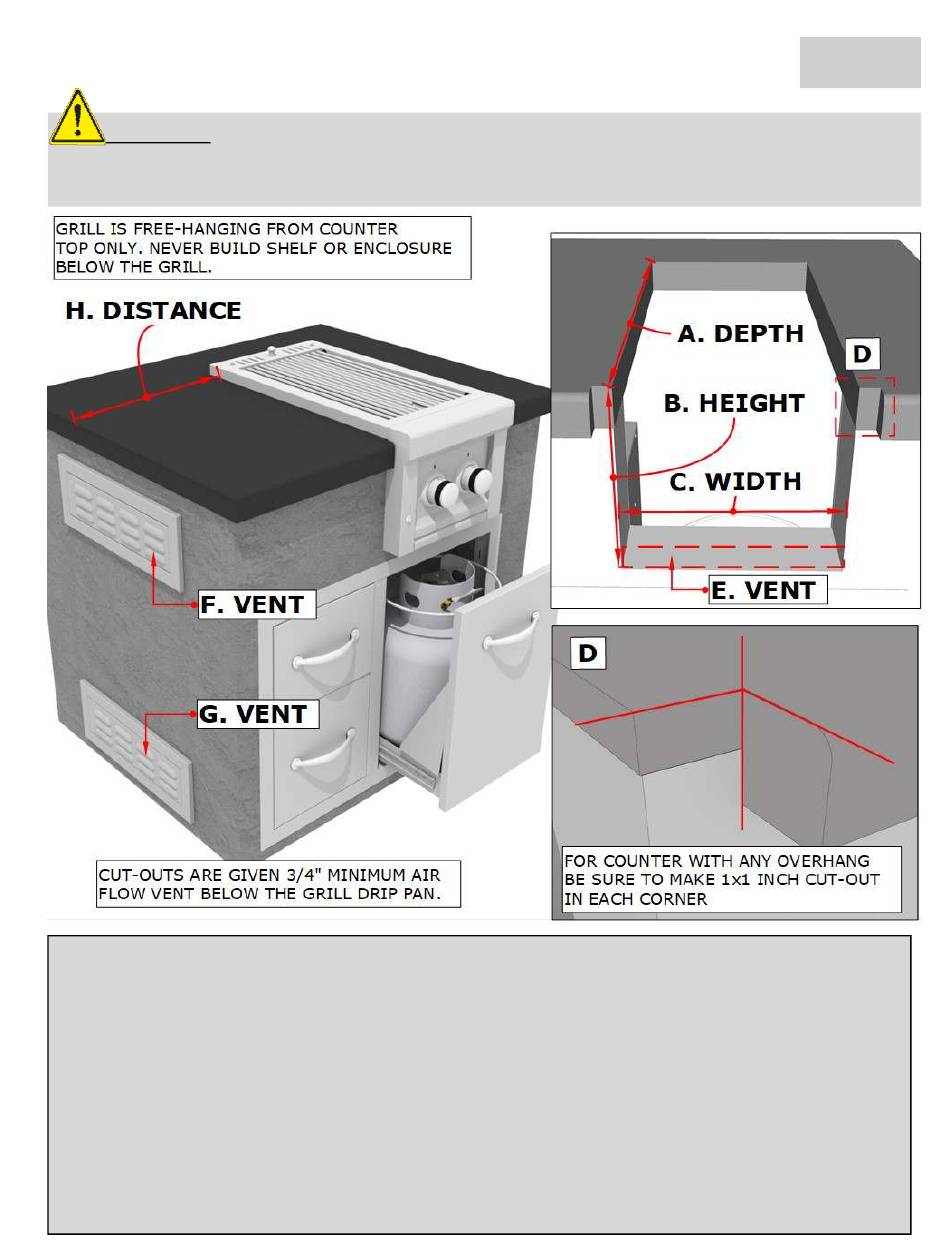

GRILL INSTALLATION – CUT-OUT DETAILS
: Never build an enclosure under the Grill or partition side walls, the Grill
ATTENTION
must be Free Hanging supported by the countertop only! Must have clear access to
underside of Grill within reach of at least Two Vents.
Countertop Slide-in Installation
(A) Grill Cut-out Depth ------------------------------------------------------------------
(B) Grill Cut-out Height (Allow ¾" Air-Flow Gap Below Drip Pan) ------------
(C) Grill Cut-out Width-------------------------------------------------------------------
(D) Make 1" x1"D Notch Cut-Out on both side of cut-out counter edge, to allow grill to slide flush
against the island finish wall.
(E) Leave Minimum ¾" Gap below Drip Pan for Air/Gas Ventilation
(F) Must have TWO Vents in HIGH position for Natural Gas
(G) Must have TWO Vents in LOW position for Liquid Propane
(H) MINIMUM 24" DISTANCE TO COMBUSTIBLE MATERIALS
PAGE 6
22" Depth
10-1/2" Height
11" Width
