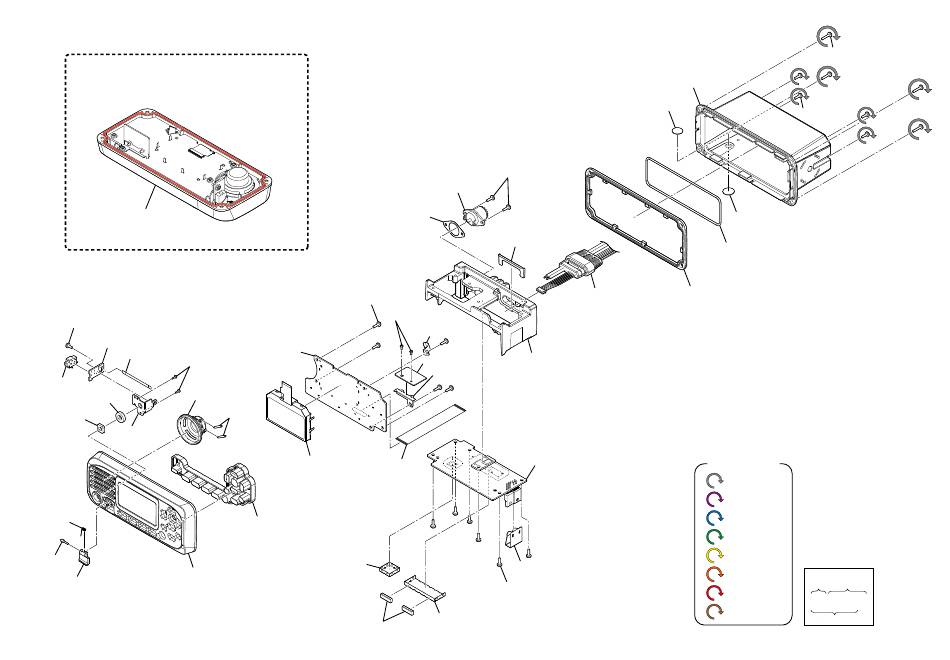

Icom IC-M220 Service Manual page 21

Apply the grease to the following area of the front panel
Used grease: G501 (80G) SHINETSU (8950002750)
MP1 (FRONT)
MP9 (FRONT)
(8930100090)
MIC-JACK UNIT
W1 (MIC-JACK)
(8910000070)
MP22 (FRONT)
(8810011840)
J2 (MIC-JACK)
(6450002460)
SP1 (FRONT)
(2510002160)
MP11 (FRONT)
(8830003640)
MP10 (FRONT)
(8930100260)
MP23 (FRONT)
(8810008631)
MP5 (FRONT)
(8930098320)
MP4 (FRONT)
(8930098310)
MP1 (FRONT)
(8210033830)
MP3 (FRONT)
(8110011420)
MP3 (CHASSIS)
(8930034301)
MP21 (FRONT)×5
(8810008661)
MP2 (GPS-ANT)
(8810000101)
LOGIC UNIT
W1 (FRONT)
(9035700010)
DS1 (LOGIC)
W1 (LOGIC)
(5030004390)
(8900019100)
MP7 (FRONT)
(8930100130)
MP3 (MAIN)
(8510016461)
MP8 (MAIN)
(8930097540)
MP22 (CHASSIS)
(8810010610)
J1 (CHASSIS)
(6510004882)
MP2 (CHASSIS)
(8930098330)
W1 (CHASSIS)
(8920002900)
MP8 (FRONT)
(8930055842)
MP1 (CHASSIS)
GPS-ANT UNIT
(8010024570)
MP1 (GPS-ANT)
(8930100540)
MAIN UNIT
MP4 (CHASSIS)
(8930100330)
MP21 (CHASSIS)×6
(8810008661)
MP7 (MAIN)
(8510022650)
6-2
MP11 (CHASSIS)
(8010024420)
MP13 (CHASSIS)
MP23 (CHASSIS)×4
(8930055070)
MP14 (CHASSIS)
(8930049040)
MP16 (CHASSIS)
(8930060440)
MP15 (CHASSIS)
(8930098300)
Tightening torque
: <0.8 (N•m)>
: <0.7 (N•m)>
: <0.6 (N•m)>
: <0.5 (N•m)>
: <0.4 (N•m)>
: <0.3 (N•m)>
: <0.2 (N•m)>
: <0.1 (N•m)>
MP24 (CHASSIS)×4
(8810010620)
(8810010610)
Legend:
Ref.No. Unit Name
MP1 (CHASSIS)
(1234567890)
Parts No.
