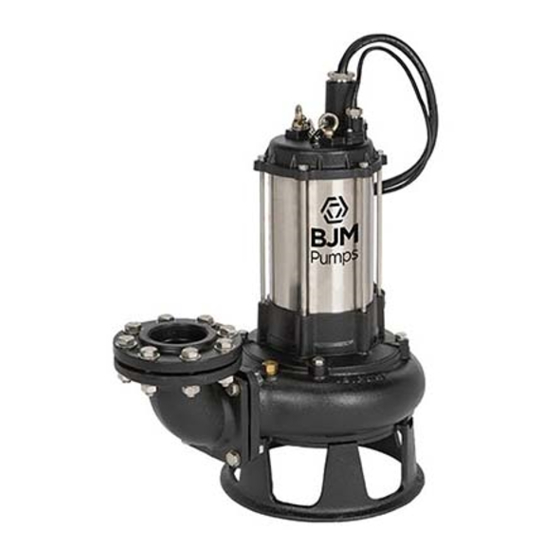

INSTALLATION, OPERATION & MAINTENANCE MANUAL
Read this manual carefully before installing, operating or servicing these pump models.
Observe all safety information. Failure to comply with instructions may result in personal
injury and/or property damage. Please retain these instructions.
SKG FAHRENHEIT
SHREDDER PUMPS
Electric Submersible Pumps
Three Phase
208V, 230V, 460V & 575V
CAST IRON
THREE PHASE
SKG15CF
SKG22CF
SKG37CF
SERIES
®
Version 1-24-16
Advertisement
Table of Contents
Related Manuals for BJM Pumps SKG FAHRENHEIT Series
Summary of Contents for BJM Pumps SKG FAHRENHEIT Series
- Page 1 INSTALLATION, OPERATION & MAINTENANCE MANUAL SKG FAHRENHEIT SERIES ® SHREDDER PUMPS Electric Submersible Pumps Three Phase 208V, 230V, 460V & 575V CAST IRON THREE PHASE SKG15CF SKG22CF SKG37CF Read this manual carefully before installing, operating or servicing these pump models. Observe all safety information.
-
Page 2: Table Of Contents
TABLE OF CONTENTS SAFETY ..................................4 INSPECTION ................................. 5 PRE-INSTALLATION INSPECTION ......................... 5 OIL FILL QUANTITY/TYPE ............................6 PUMP INSTALLATION ............................. 6 POSITIONING THE PUMP ............................7 PUMP ROTATION ..............................7 PUMP OPERATION ............................... 8 TYPICAL MUNICIPAL AND INDUSTRIAL WASTEWATER INTALLATION ..............8 MANUAL OPERATION .............................. - Page 3 INTRODUCTION This Installation, Operation and Maintenance manual provides important information on safety and the proper inspection, disassembly, assembly and testing of the BJM Pumps® SKGF Series submersible pump. This manual also contains information optimize performance and longevity of your BJM Pumps® submersible pump. The F Series pumps are engineered to pump water based liquids up to 200°...
-
Page 4: Safety
SAFETY Pump installations are seldom identical. Each installation and application can vary due to many different factors. It is the owner/service mechanics responsibility to repair, service, and test to ensure that the pump integrity is not compromised according to this manual. -
Page 5: Inspection
Give it to the owner or affix it to the control panel when finished with the installation. If anything appears to be abnormal, contact your BJM Pumps® distributor or Industrial Flow Solutions Operating, LLC. If damaged, the pump may need to be repaired before use. -
Page 6: Oil Fill Quantity/Type
• Check the oil in seal chambers prior to startup to ensure oil is moisture free and has not broken down. • Megger the motor prior to startup. The reading should be above 100 MΩ. • Remove the air check screw on the motor housing. Using an air compressor, pressurize the motor chamber to 13 psi and check for leaks using a spray bottle. -
Page 7: Positioning The Pump
Do not lift the pump by the power cable or discharge hose/piping. Proper lifting equipment (rope/chain) must be used. POSITIONING THE PUMP BJM Pumps® SKGF Series pumps are designed to operate fully or partially submerged. Avoid running the pump dry. Refer to data sheet for minimum submersion depth for your particular model. -
Page 8: Pump Operation
2. Since the impeller cannot be seen, the best way to check the rotation is to check the kick back motion of the pump when the pump just starts. The kick back motions should be viewed from the top. The kick back motion of the pump should be counter clockwise as shown in the picture above. -
Page 9: Stopping
For manual operation: 208, 230, 460 & 575 volt: Attach the proper plug, connect directly to the power source or control box. Check the direction of the rotation. Tilt the pump and start it. It should twist in the opposite direction of the arrow (on pump). It is recommended that a Ground Fault Interrupter (GFI) type receptacle (or equivalent) be used. -
Page 10: Typical Municipal Or Industrial Wastewater Installation
TYPICAL MUNICIPAL OR INDUSTRIAL WASTEWATER INSTALLATION NOTE: Maximum recommended starts should not exceed 10 times per hour. AUTOMATIC OPERATION Three phase pumps need a separate control box with float(s) for automatic operation. STOPPING To stop the pump (manual and automatic mode), unplug it from the power source, turn off the breaker, or turn the power source off (generator). -
Page 11: Intended Methods Of Connection
Use with approved motor control that matches motor input in full load amperes. “UTILLISER UN DÉMARREAR APPROUVÉ CONVENANT AU COURANT Á PLEINE CHARGE DU MOTEUR.” BJM Pumps has been evaluated for use with water or water based solutions. Please contact the manufacturer for additional information. -
Page 12: Three Phase Wiring Instructions
THREE PHASE WIRING INSTRUCTIONS FOR YOUR PROTECTION, ALWAYS DISCONNECT PUMP FROM ITS POWER SOURCE BEFORE HANDLING. “Risk of electrical shock” Do not remove power supply cord and strain relief or connect conduit directly to the pump. Installation and checking of electrical circuits and hardware should be performed by a qualified licensed electrician. -
Page 13: Pump Will Not Run
PUMP WILL NOT RUN 1. Check power supply (fuses, breaker). Reset power. 2. Blocked impeller. Check and clean. 3. Defective cable or incorrect wiring. 4. Float switch tangled/obstructed. Clean and free float switch from obstruction. 5. Float switch defective. Replace float switch. 6. - Page 14 S/SX/J/JX/R/RX/KZN/KB/KZE model pumps, BJM Pumps offers an impeller shim kit. The shims are designed to go on the shaft behind the impeller to adjust the clearance between the impeller vane and the suction cover to the target specification of the 0.010 inch to 0.020 inch.
- Page 15 9. Install the suction cover applying the proper torque to the remaining fasteners. 10. Using the angled set of feeler gauges, recheck the impeller clearance in various locations. The measurement should fall between the 0.010 inch and 0.020 inch specification. Caution, to not allow the clearance to be less than 0.010 inch since this may cause undesirable rubbing of the impeller on the suction cover.
- Page 16 Radial shredder ring installed. M3 hex socket fastener with 242 (blue) Loctite.
- Page 17 The shredder rings installed in the housing and retained with the four M3 screws. 2. Impeller Shimming – With the volute installed on the motor, the impeller is added to the shaft. The suction cover is then added without the shredder housing in place.
- Page 18 Feeler gauge shown between impeller vane and top of suction cover. 3. Installing the Shredder Housing – First apply a light coating of the Jet Lube Marine Grade Anti-Seize to the shredder housing threads. Next thread the housing into the suction cover until the housing has hit the bottom of the threads. Add a light coating of the Jet Lube Marine Grade Anti-Seize to the inside threads on the shredding cutting bar.
- Page 19 The shredder cutting bar should be tightened to the proper torque using the special socket tool on an impact driver. Once the shredder cutting bar has been tightened to the shaft, verify that it can spin freely. The cutter elements are sharp, so care should be taken not to cut fingers.
- Page 20 4. Shredder Cutting Element Adjustment – With all of the elements installed, the housing should be rotated counter clockwise until the stationary axial cutting ring is tight against the shredding cutter bar (and the housing will not turn any more). Align the center of one of the stand mounting bosses with one of the 5 degree markers cast into the shredding housing.
- Page 21 Rotate the shredder housing clockwise 6 markers. Thread the locking screws down until contact is made with the suction cover. Tighten ¼ turn.
- Page 22 The BJM Pumps® “F” Series designed pumps utilize unique construction methods and materials. The interconnection of all wiring requires the use of a BJM Pumps® wire connection kit. Included in this kit are specific instructions on how a qualified factory trained and certified repair technician can perform this work properly.
- Page 23 EXPLODED VIEW OF SKGF 15CF, 22CF, 37CF...
- Page 24 IMPELLER & SHREDDER ELEMENTS OF SKGF 15CF, 22CF, 37CF...
-
Page 25: Skg Series Parts List
SKGF SERIES PARTS LIST Pump Model SKG15CF SKG22CF SKG37CF Item No. Part Description Item # Item # Item # Stand/Base 204574 204574 204574 Suction Cover 203928 203930 203932 Impeller 203895 203897 203899 Impeller Key 202141 202141 204575 Pump Housing 204576 204576 204577 Seal Housing Cover... - Page 26 Shredder Housing 203922 203924 203926 Axial Shredder Ring 203913 203914 203915 Radial Shredder Ring 203916 203917 203918 Shredder Bar 203910 203911 203912 50-01-1 Cap Screw, Stand, M10x1.5x30 203262 203262 203262 50-01-2 Split Lock Washer M10 202909 202909 202909 50-01-3 Flat Washer M10 202910 202910 202910...
-
Page 27: Three Phase Wiring Diagrams
THREE PHASE WIRING DIAGRAMS 208V MODELS SKG15CF, SKG22CF, SKG37CF... -
Page 28: 230V
230V MODELS SKG15CF, SKG22CF, SKG37CF... -
Page 29: 460V
460V MODELS SKG15CF, SKG22CF, SKG37CF... -
Page 30: 575V
575V MODELS SKG15CF, SKG22CF, SKG37CF... -
Page 31: Seal Minder
Fahrenheit® Series high temperature pumps. The cable is designed for a high temperature environment. The proper replacement part can be found parts list found in this manual. BJM Pumps, can supply a control with the Seal Minder and Thermal sensor switch option. Separate stand alone Seal Minder alarm panels are also available. -
Page 33: Warranty And Limitation Of Liability
BJM Pumps,LLC’s liability for any breach of this warranty shall be limited solely to replacement or repair, at the sole option of BJM Pumps,LLC, of any part or parts of the Product found to be defective during the warranty period, provided the Product is properly installed and is being used as originally intended. Any breach of this warranty must be reported to BJM Pumps,LLC or BJM Pumps,LLC’s authorized service representative within... -
Page 34: Start-Up Report Form
START-UP REPORT FORM This form is designed to record the initial installation, and to serve as a guide for troubleshooting at a later date (if needed). Industrial Flow Solutions Operating, LLC 104 John W Murphy Drive New Haven, CT 06513, USA Pump Owner’s Name Location of Installation Date of Installation:... - Page 35 START-UP REPORT FORM Are guide rails vertical? Is base elbow installed level? Liquid level controls: Model Is control installed away from turbulence? Float Operation Check Tip lowest float (stop float), all pumps should remain off. Tip second float (and stop float), one pump comes on. Tip third float (and stop float), both pumps on (alarm on simplex).
- Page 36 START-UP REPORT FORM L1-L2 L2-L3 L3-L1 Amperage load connection, pump on FINAL CHECK Is pump secured properly? Was pump checked for leaks? Do check valves operate properly? Flow: Do pumps appear to operate at proper rate? Noise level: Acceptable Unacceptable Comments: Installed by: Company:...
-
Page 37: Notes
NOTES:... - Page 38 Industrial Flow Solutions Operating, LLC 104 John W Murphy Drive, New Haven, CT 06513, USA Phone: (860) 399-5937 • Fax: (860) 399-7784 Email: sales@flowsolutions.com • Web Site: www.flowsolutions.com Seal Minder® and Fahrenheit® are registered trademarks of Industrial Flow Solutions Operating, LLC. All rights reserved. ©...
