Texsport 02836 Assembly Instructions

Thank you for buying a Texsport Authentic Adventure Gear Product. We hope you enjoy your new arbor and that it will serve you with
many years of camping pleasure. We encourage you to read and understand each step of the set-up instructions prior to working with
the arbor.

PARTS LIST:

Center Hub - 1 Piece
Wide Y Joints - 6 Pieces
Small Y Joints - 6 Pieces
48-1/4" Number 1 Poles - 6 Pieces
48-1/4" Number 3 Poles - 12 Pieces
64-1/4" Number 5 Leg Poles - 6 Pieces
16 Stakes
Guy Ropes
Clews
Arbor Skin
ASSEMBLY INSTRUCTIONS
Step 1 . .Put the two section chain corded number 1 pole sections into center hub 1 and the number 2 pole
sections of wide Y joint.
Step 2 . .Put two section chain-corded number 3 pole sections into each of the number 3 sections of the
wide Y joint and then each of the number 4 pole sections of the small Y joint.
Step 3 . .Put the top section of the three section chain-corded number 5 leg poles into the number 5 section
of the small Y joint.
Step 4 . .Place the arbor skin over the frame. Stretch the arbor skin over the corner joints.
Step 5 . .Now raise the other two sections of the three section chain-corded leg poles to full height.
Step 6 . .Pull each leg section of the arbor skin completely down the length of the leg poles and connect T-
clips into leg poles.
Step 7 . .Enter arbor and connect skin to leg poles with attached velcro strips.
Step 8 . .Guy rope and stake down the arbor.

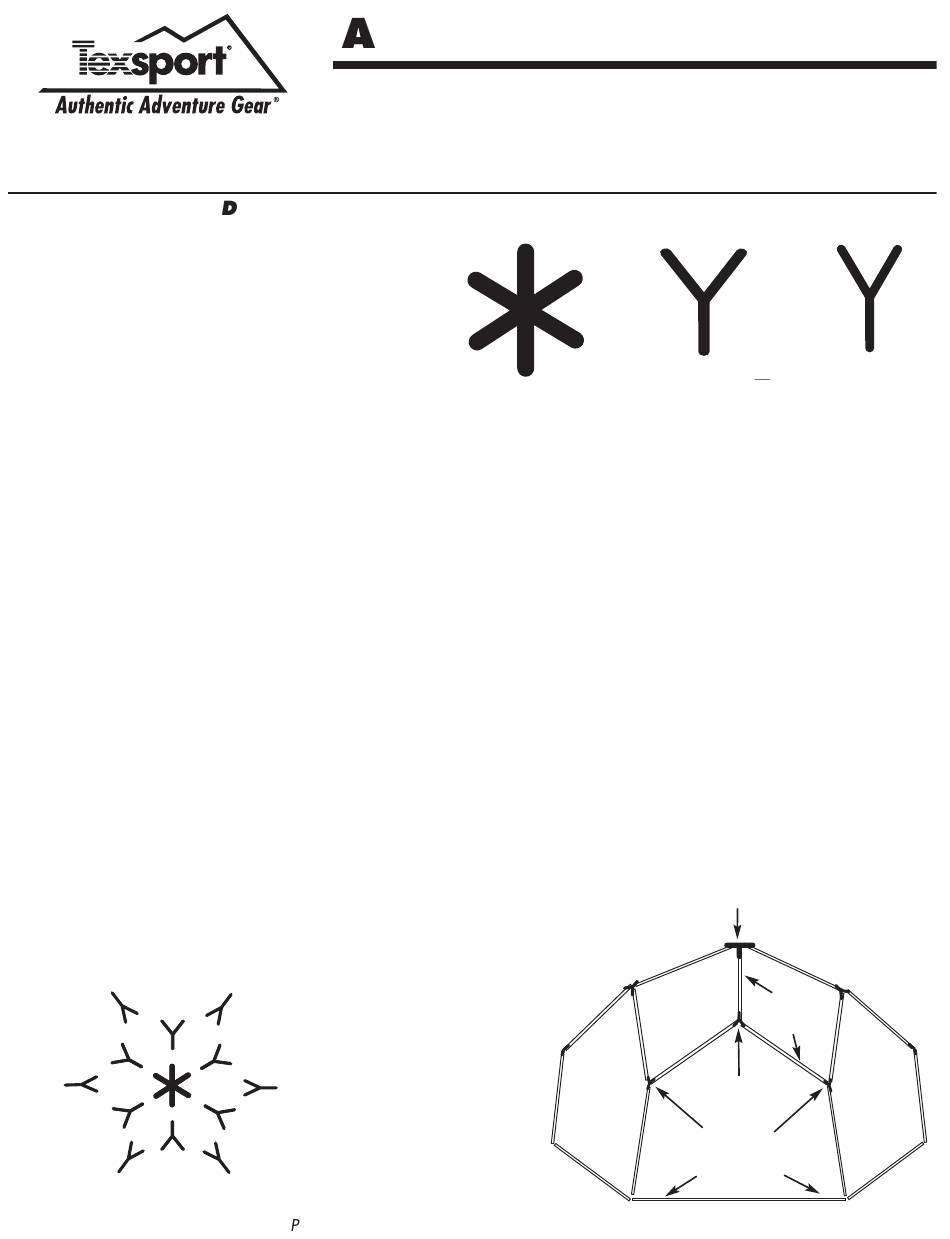

(Fig. 1)
SSEMBLY INSTRUCTIONS
Version 4 — Item 02836 - Party Hut
o not apply excessive force to this product.
Placement of
Joints
Place 48-1/4"
poles between
each joint. Place
leg poles at end
of small Y
joints. (Fig. 1)
lease see reverse side for more valuable information
1
1
1
1
1
1
Center Hub
2
3
4
5
4
5
3
3
2
Wide Y Joints
Hub
1
1
1
3
48-1/4"
2
Poles
4
4
Wide Y
Small Y
Leg Poles
4 4
5
Small Y Joints
2
3
3
4
5
4
5
