Texsport 02820 Assembly Instruction

Assembly Instructions
Authentic Adventure Gear·
ITEM02820
Screen
House

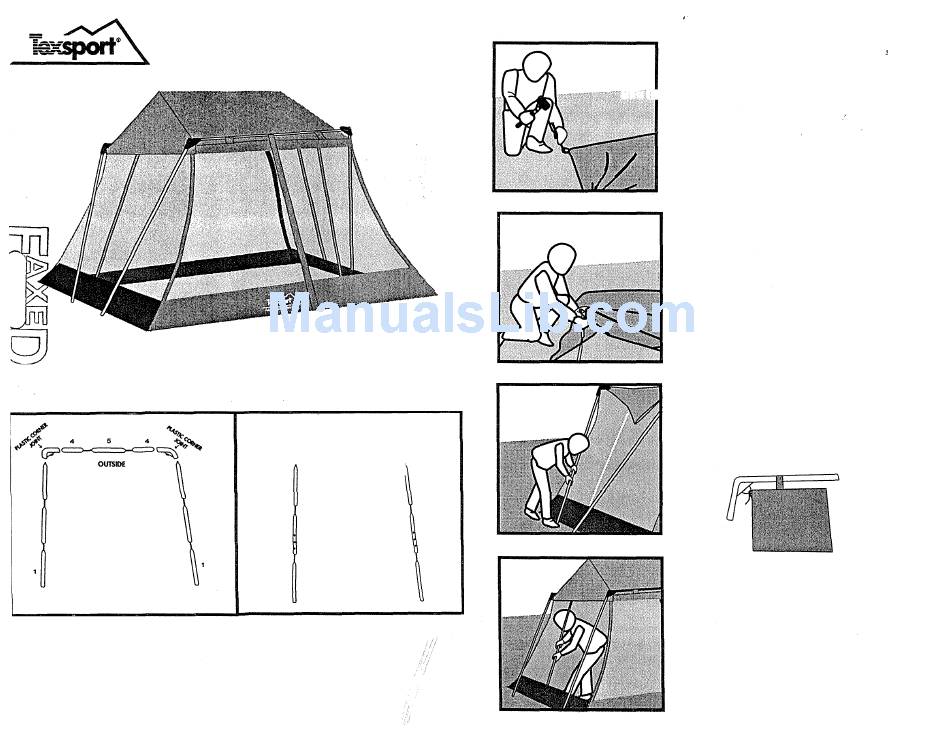

Assembly Diagram

3
2
QUESTIONS
If you should have any questions, problems, or comments please call our Customer Service
Department at 1-800-231-1402, This Department is open M-F from 8:00 a.m. until 5:00 p.m. CST
.vww.texsport.com.
(,�
.�� 9 10
1 "' c::::>-c:::::=>-C::::X:�f� �
.,.,,.
(j?
INSIDE
3
8
2
7
6
Step3
'
9 -b;.Cq. •
I
8
7
Step4
6
Step 1
Step 1
Unpack screen house and frame. Making sure
zippers are closed, spread screen house flat and
stretch base to eliminate slack. Drive stake into each
f�I
of the four corner loops, at a slight angle, then drive'
'iiH'.; ? : , i' ;I
remaining stakes into side loops.
sections, separate by number code.
Step2
Step2
To aid pole assembly, refer to assembly diagram. Do
not apply excessive force to screen house or poles.
Slide section 4,5,4 through loops on ridge.
Assemble upright sections 3,2, 1 and insert these
sections into plastic corner joints. Repeat procedure
with the other outer ridge sections.
Step3
Raise one side of the screen house by bringing the
pole tips toward side stakes. Raise other side in
same manner. Adjust so screen house is fairly tight
on sides. Tie strings at plastic corner joints of peak
poles tightly.
Step4
Assemble inner pole ridge sections 9,10,9. Insert
into corner joint, then join to sections 8,7,6, adjust to
medium length. Now stand pole section up and
tighten by adjusting section 7 pole section. Tie
strings at plastic comer joints of both side poles
tightly. Your screen house is now ready for use.
Check frame
