Summary of Contents for VMP PDS-LCM2B

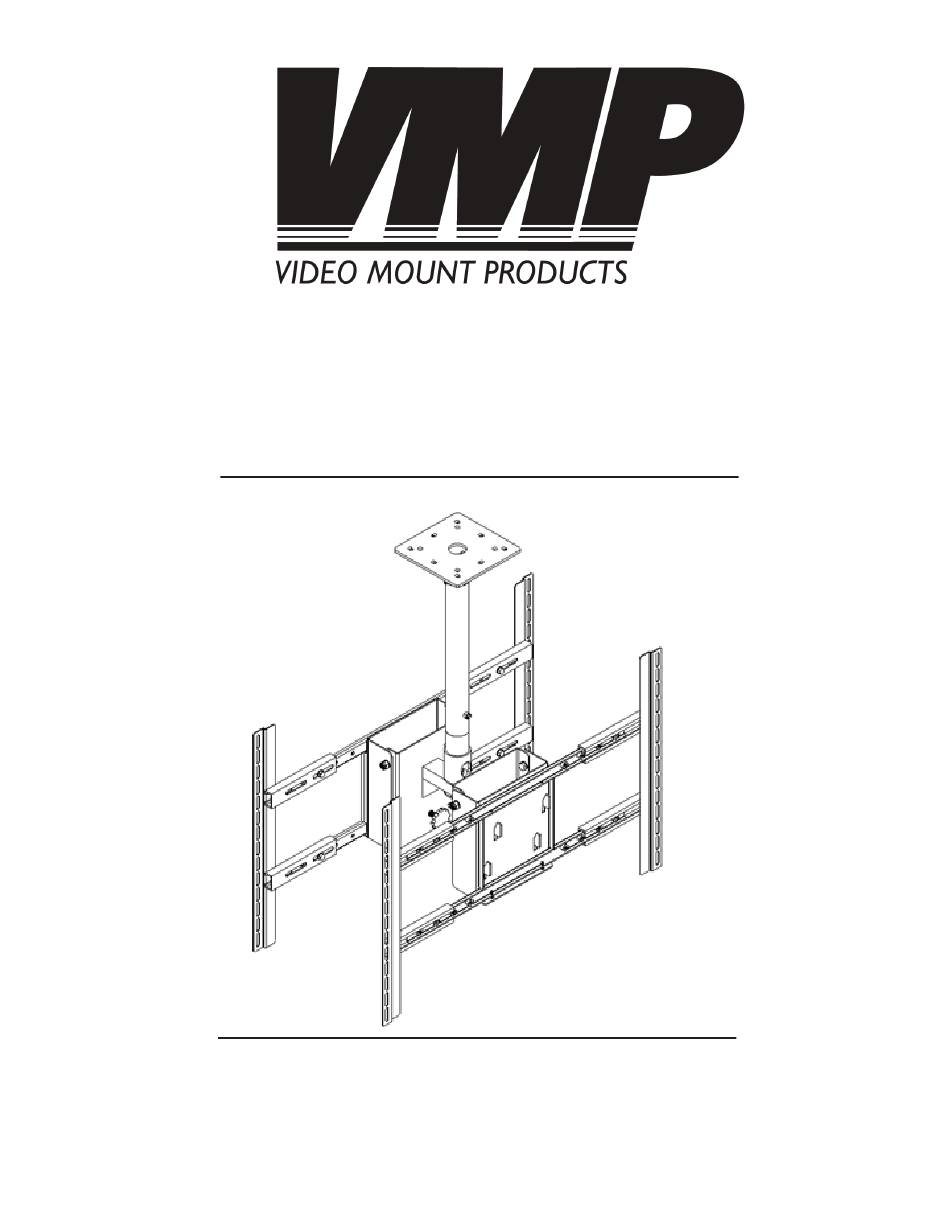

- Page 1 Instruction Sheet For: PDS-LCM2B For more information, please contact us at: 345 Log Canoe Circle, Stevensville, Maryland 21666 Toll Free: 877.281.2169 Phone: 410.643.6390 Fax: 410.643.6615 www.videomount.com...
- Page 3 Verify that you have all your parts before attempting to assemble the mount. Note: For these instructions PDS-LCB part numbers have hexagons around their numbers and PDS-LCM2B part numbers have circles around their part numbers. Step 2...
- Page 4 Step 5 Attach the mounting adaptor PDS-LCM2B to the pipe couple PDS-LCB using the metal washers PDS-LCB, PVC washers PDS-LCB and nylon nut PDS-LCB. After tightening down the nylon nut completely insert the cotter pin PDS-LCB though the hole in the bottom of the screw of the pipe couple.
