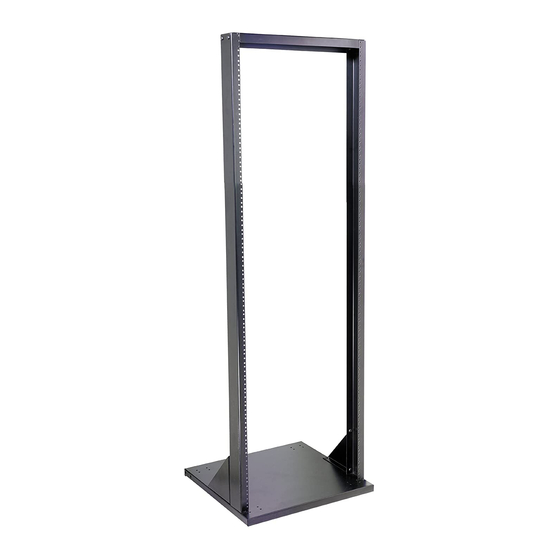

Related Manuals for VMP ER-1
Summary of Contents for VMP ER-1

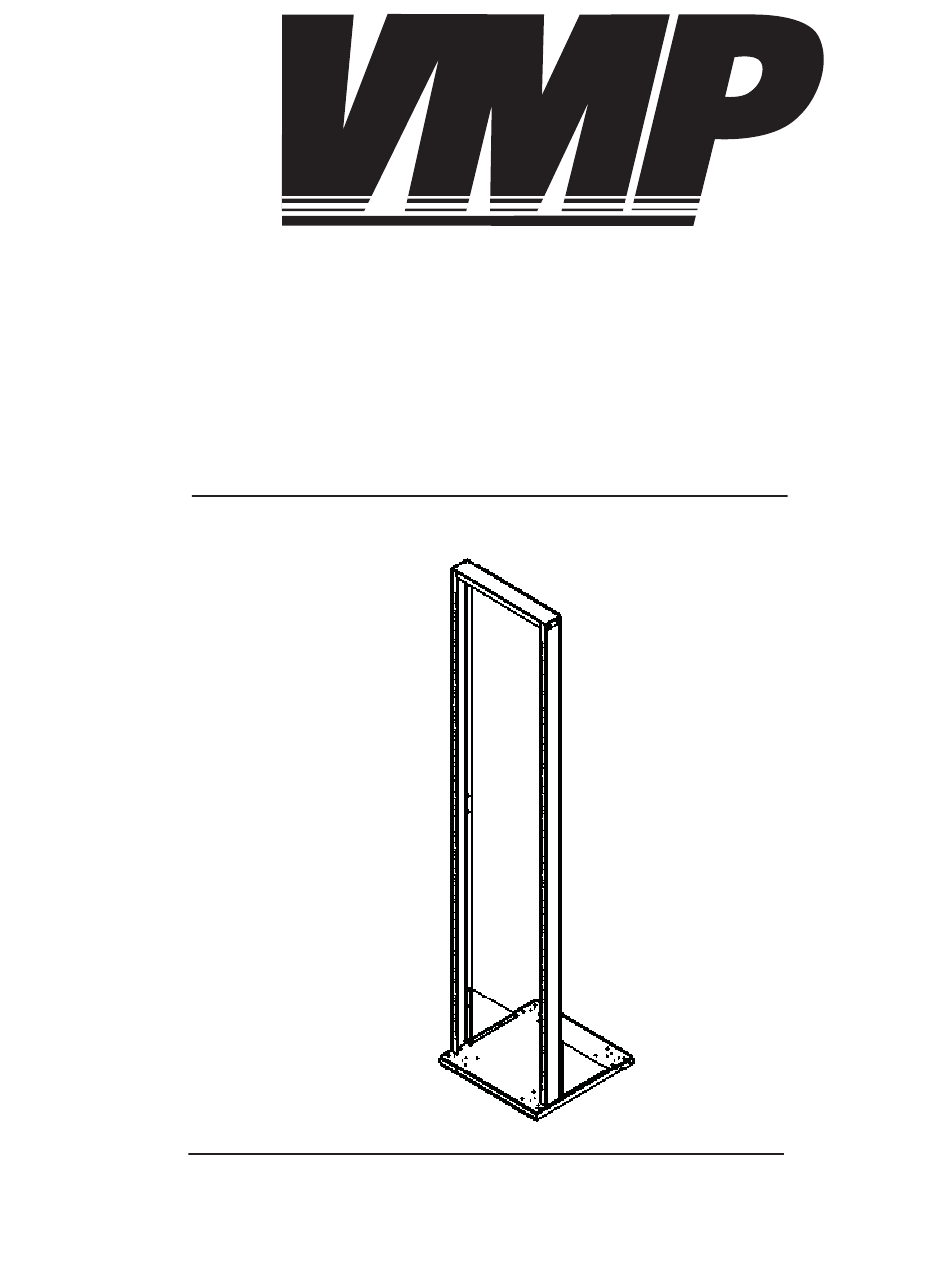

- Page 1 VIDEO MOUNT PRODUCTS Instruction Sheet For: ER-1, ER-148, ER-184 For more information, please contact us at: 345 Log Canoe Circle, Stevensville, Maryland 21666 Toll Free: 877.281.2169 Phone: 410.643.6390 Fax: 410.643.6615 www.videomount.com...
- Page 2 ER-1 ITEM NO. DESCRIPTION QTY. Left Support Right Support Plate Support Plate Triangle Plate Screw #10 - 32UNC Screw 1/4" - 20UNC*L1/2" Nut 1/4" - 20UNC Plastic Washer...
- Page 3 *** ER-148 *** Part Name QTY. 1A Left Support 1B Right Support Base Plate Top Plate Triangle Plate Screw 10#-32UNFx5/8" Cross Screw 1/4"-20UNCx1/2" Nut 1/4"-20UNC Plastic Washer 4.6x 11.2xT0.8...
- Page 4 *** ER-184 *** PART NAME QTY. Left Support Right Support Base Plate Top Plate Triangle Plate Screw 10#-32UNFx1/2'' Cross Screw 1/4"-20UNCx1/2" Nut 1/4"-20UNC Plastic Washer 4.6x 11.2xT0.8...
- Page 5 Note: For the example images the ER-184 is shown. Step 2 Attach the triangle plates for ER-1 and ER-148, for ER-184 to the base plate for ER-1 and ER-148, for ER-184 using ¼” – 20...
