Summary of Contents for Adaptec SCSI RAID 2010S
- Page 1 NSTALLATION UIDE SCSI RAID 2010S/2015S DAPTEC...
- Page 2 Adaptec SCSI RAID 2010S/2015S Installation Guide...
- Page 3 Copyright © 2000 - 2002 Adaptec, Inc. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior written consent of Adaptec, Inc., 691 South Milpitas Blvd., Milpitas, CA 95035.
- Page 4 (1) this device may not cause harmful interference and (2) this device must accept any interference received, including interference that may cause undesired operation. Adaptec, Inc. European Union Compliance Statement This Information Technology Equipment has been tested and found to comply with the...
- Page 5 Canadian Compliance Statement This Class B digital apparatus meets all requirements of the Canadian Interference- Causing Equipment Regulations. Cet appareil numérique de la classe B respecte toutes les exigences du Règlement sur le matérial brouilleur du Canada. Japanese Compliance (Voluntary Control Council Initiative) This equipment complies to class B Information Technology equipment based on VCCI (Voluntary Control Council for Interface).
-
Page 6: Table Of Contents
Storage Requirements for Drivers and Software 1-2 Motherboard Compatibility 1-2 SCSI Requirements 1-2 Kit Contents 1-3 Adaptec ZCR Controller Features 1-3 Specific Characteristics of ZCR Controllers 1-5 About the Documentation 1-7 Overview of the Installation Process 1-7 Storage Management Software Overview 1-8... - Page 7 Adaptec SCSI RAID 2010S/2015S Installation Guide Installing the Driver Driver Disks 3-2 Creating the Driver Disk from the Bootable CD 3-2 New Installations 3-3 Windows 2000 and XP 3-4 Installing the Driver in a New System 3-4 Adding the Controller to an Existing System 3-5 Windows NT 4.0 3-6...
-
Page 8: Introduction
Storage Management Software Overview Safety Information Read this First Before you begin installing your new Adaptec SCSI RAID 2010S/ 2015S Zero Channel RAID (ZCR) controller, read this chapter. This chapter is an important guide to the rest of the documentation and provides a summary of the installation process. -

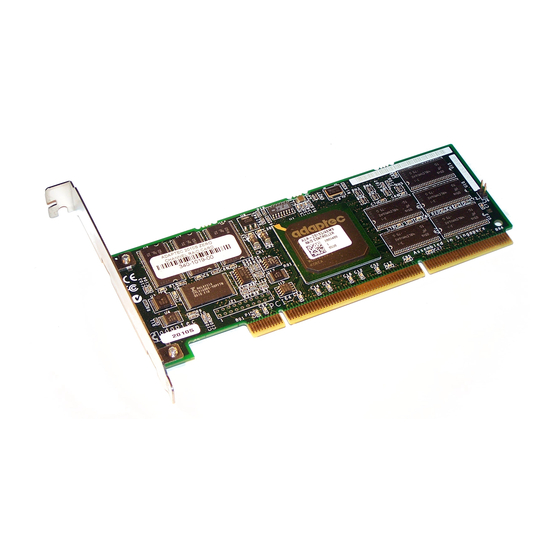

Page 9: Adaptec Scsi Raid 2010S
The Adaptec ZCR controllers provide advanced RAID functionality to server motherboards incorporating on-board Adaptec Ultra320 SCSI and Embedded RAID Logic (EMRL) or RAIDIOS™ logic. The ASR-2010S is designed to work in one of the supported EMRL- or RAIDIOS-enabled PCI slots. The ASR-2015S plugs into a specially-designed SO-DIMM PCI connector, present only on specific motherboards. -
Page 10: Kit Contents
Storage Manager On ROM (SMOR). Local and remote configuration, array status, and I/O ■ monitoring using Adaptec Storage Management software. Intelligent hot spares that automatically replace failed drives. ■ When multiple hot spares are available on a controller, the intelligent hot spare algorithm picks the best spare based on capacity and bus location. - Page 11 Windows XP, Windows 2000, and Windows NT only—Array ■ expansion and extension during normal operation on RAID 0 or RAID 5 arrays with the NTFS file system. Refer to the Adaptec Storage Management Software User’s Guide for more information. Legacy SCSI devices (including hard disk, tape, CD-ROM, ■...
-
Page 12: Specific Characteristics Of Zcr Controllers
Specific Characteristics of ZCR Controllers ZCR controllers perform the same functions as add-in RAID controller cards, but Adaptec’s ZCR controllers can only be used in motherboards that support EMRL or RAIDIOS logic and on-board Adaptec Ultra320 SCSI Protocol Chips (SPC). When a ZCR is not installed, EMRL logic is not active, letting the SPC function as a SCSI adapter only. - Page 13 PCI slot route to the motherboard ZCR connector -- allowing the ZCR card to be plugged in without using a PCI slot, critical for high-density applications. The following figure shows the relationship of the Adaptec ZCR 2015S to the IOC, PCI bus, and EMRL logic.
-
Page 14: About The Documentation
Adaptec ZCR controller and attached devices. Adaptec Storage Management Software User’s Guide—Describes ■ how to use SMOR, Adaptec Storage Manager software, and the RAIDUTIL command line utility. Storage Manager provides online help for creating and managing RAIDs, including topical and pop-up help displays. -
Page 15: Storage Management Software Overview
Storage Management Software Overview Adaptec supplies a number of software applications for setting up and managing RAID arrays with the Adaptec ZCR. One is a Graphical User Interface (GUI), one is a Command-Line Interface (CLI) that is loaded along with the GUI application, and the third is provided as a utility that may be used before the operating system is available. -
Page 16: Safety Information
Safety Information Any device that uses electricity must be treated with caution. To ensure general safety: Keep your work area and the computer clean and clear of ■ debris. Eliminate hazards such as spills or bad wiring. Before opening the system cabinet, unplug the power cord. ■... - Page 17 ESD voltages on clothing can still cause damage. Place a removed component board-side-up on an antistatic ■ surface or in an approved antistatic container. If you plan to return the component to Adaptec, immediately ■ place it in a static-shielding container. 1-10...
-
Page 18: Installing Your Controller
Note: SCSI drives should, in general, not be reformatted. However, if your SCSI drive was formatted to a sector size other than 512 bytes, you must reformat the drive before you can use it in a RAID. Refer to the Adaptec Storage Management Software User’s Guide for details. -
Page 19: Narrow And Wide Scsi Devices
Narrow and Wide SCSI Devices You can attach either narrow (8-bit) or wide (16-bit) SCSI devices to your Adaptec ZCR controller. If you use narrow and wide devices on the same wide cable, put one of the wide devices at the end of the cable. -
Page 20: Scsi Termination
ID are not attached to the same bus. If necessary, the Adaptec ZCR controller ID can be changed to any ID from 0 through 7. Use SMOR or the Configure Host Bus Adapter window in Adaptec Storage Management to change the controller SCSI ID. - Page 21 Adaptec SCSI RAID 2010S/2015S Installation Guide SCSI termination is configured through the SMOR utility or from the Configure Host Bus Adapter window in Adaptec Storage Management. The controller has only these termination settings: Setting Function Default—Enables the controller termination built.
-
Page 22: Installing The Controller
To ensure proper installation, examine the screen during system boot. Instead of showing an Adaptec SCSI BIOS message, the system will display an Adaptec I SCSI scans and RAID device creation. -
Page 23: Considerations To Adding A Zcr Controller To An Existing Compatible System
The Adaptec ZCR controllers have unique installation requirements. These controllers are ZCR cards and work with the motherboard’s embedded Adaptec SCSI chip to provide advanced RAID functionality. SCSI devices may be connected to the system prior to installation of the ZCR. Under these conditions, the user should back-up any data on the disk drives prior to implementing a ZCR solution. -
Page 24: Determining The Booting Controller
OK on the window that appears. The system will restart. Determining the Booting Controller Adaptec ZCR controllers are shipped with a controller BIOS ROM enabled for PCI assignment. This BIOS intercepts and processes Int13h BIOS calls with an embedded DOS driver. -
Page 25: Configuring The Controller To Boot From Channel 1
Both the IRQ and address space used are not set by the user. During the host system start process, the system BIOS should automatically configure the controller BIOS Interrupt Request (IRQ) level and memory location for all Adaptec PCI controllers in the system. -
Page 26: After Setting Up Your System
Installing Your Controller After Setting Up your System After your system is set up, you can use all of the advanced features of Adaptec Storage Management to modify and improve the RAID. The array build/rebuild process occurs in the background and therefore the array can be used while the array is building/ rebuilding. -
Page 27: Adaptec Scsi Raid 2010S/2015S Installation Guide
Adaptec SCSI RAID 2010S/2015S Installation Guide 2-10... -
Page 28: Installing The Driver
Installing the Driver In this Chapter Driver Disks New Installations Windows 2000 and XP Windows NT 4.0 Red Hat Linux This chapter presents several scenarios for installing the controller driver. Identify the appropriate scenario and read the entire procedure and related explanations before proceeding. Instructions are provided for installing a new system, and for upgrading an existing system by adding the ZCR. -
Page 29: Driver Disks
Adaptec SCSI RAID 2010S/2015S Installation Guide Driver Disks A system with an Adaptec SCSI RAID controller installed will need to have an appropriate driver for the controller to operate properly. Installation is easier when the drivers are available on a floppy disk. -
Page 30: New Installations
Adaptec SCSI RAID controllers provide two ways to do this, by starting (also called booting) the system using the Adaptec CD, or by using the tools built into the on-board firmware on the controller. -
Page 31: Windows 2000 And Xp
Installing the Driver in a New System In this scenario, you are installing the Adaptec RAID controller in a new system that has no operating system. To install the driver: 1 Install and configure your Adaptec RAID controller and hard disk drives according to the instructions in 2 Create the driver disk as shown at the beginning of this chapter. -
Page 32: Adding The Controller To An Existing System
Found New Hardware Wizard. Click Next. Then, select Search for suitable driver for my device and click Next again. 8 Insert the Adaptec driver disk you created at the beginning of this chapter, select it, and click Next. The wizard should find the Adaptec RAID Adapter. -
Page 33: Windows Nt
Adaptec ZCR controllers. Installing the Driver in a New System In this scenario, you are installing an Adaptec ZCR controller and Windows NT 4.0 in a new system. Note: If Windows NT is to coexist with another operating system, the other operating system must be installed before you install Windows NT. -
Page 34: Installing The Controller In An Existing System
SMOR. Use SMOR to create the RAID. For details, refer to Creating an Array Using SMOR on page 2-6 User’s Guide on the CD that came with the Adaptec SCSI RAID controller. 4 Insert the Windows NT setup media (floppy disk or CD) and restart the system. -
Page 35: Red Hat Linux
Installing the Controller in an Existing Linux System on page 3-10 ■ Installing a Newer Driver on page 3-12 ■ The Adaptec ZCR controllers supports Red Hat 7.3. Note: For the most up-to-date information on Adaptec’s support of Linux, or to download driver sources, visit linux.adaptec.com Caution: When adding a ZCR controller to an existing system, backup all data from system drives prior to the installation. -
Page 36: Installing The Driver In A New Linux System
RAID. To install the Adaptec ZCR controller: 1 Install and configure your Adaptec ZCR controller and hard drives according to the instructions in 2 Start up the server. During startup, press Ctrl+A to start SMOR. -
Page 37: Installing The Controller In An Existing Linux System
Data on any hard disk drive attached to the SCSI channels that will be controlled by the ASR-2010S or ASR-2015S will not be accessible after the Adaptec ZCR controller is inserted. The following assumes you have Linux installed to a... - Page 38 8 For the new module to start when the system boots, a new ramdisk will be required. An alternative to creating a new ramdisk is to allow the Adaptec RAID module to be started each time the system is booted by using the following...
-
Page 39: Installing A Newer Driver
Adaptec SCSI RAID 2010S/2015S Installation Guide Installing a Newer Driver While the drivers for the ASR-201S and ASR-2015S are in the Red Hat Linux 7.3 kernel, newer drivers may be released occasionally. For current information about newer drivers, visit linux.adaptec.com Installation instructions for any newer kernel versions will be posted with the drivers. -
Page 40: Installing Storage Management Software
Installing Storage Management Software In this Chapter System Requirements ➤ Installing Storage Manager ➤ As described in Storage Management Software Overview on page you can use Storage Manager as your primary RAID management utility. 1-8,... -
Page 41: System Requirements
Adaptec SCSI RAID 2010S/2015S Installation Guide System Requirements To run the controller and RAID management software, you need a system that meets the following minimum hardware requirements: Pentium or equivalent CPU that is at least as fast as 200 MHz ■... -
Page 42: Installing Storage Manager
The CD should start automatically. If it doesn’t, run F:\autorun.exe b On the Autorun window that appears, click the icon on the Install Adaptec Storage Manager line. c Storage Manager will begin installing. Follow the prompts to finish the installation d Restart the system when finished. - Page 43 Adaptec SCSI RAID 2010S/2015S Installation Guide b When finished, restart the system, removing the CD during the restart. c An icon representing Storage Manager should be on your desktop, if you use one. Otherwise, the file to launch the application will be in the root/desktop directory.
-
Page 44: Card And Module Diagrams
Card and Module Diagrams In this Appendix Adaptec SCSI RAID 2010S ➤ Adaptec SCSI RAID 2015S ➤ Adaptec SCSI RAID 2010S Part 7930W Description Flash Mode 0 PCI connector... -
Page 45: Adaptec Scsi Raid 2015S
Adaptec SCSI RAID 2010S/2015S Installation Guide Adaptec SCSI RAID 2015S Part Description Flash Mode 0 SO-DIMM connector... -
Page 46: Troubleshooting
The video controller fails to properly implement Extended BIOS Data Area (EBDA) usage rules. Use SMOR to enable the EBDA Relocation option. In addition to the Adaptec controller, the system contains another manufacturer’s controller. During startup, the system hangs or one controller cannot communicate with its attached drives. - Page 47 ZCR. To reset the NVRAM, refer Appendix You want the system to boot from a drive that is not attached to an Adaptec ZCR controller. However, during startup, the controller BIOS message appears first, indicating that a drive attached to an Adaptec ZCR controller will be the boot drive.
-
Page 48: Controller Reset Procedures
Controller Reset Procedures In this Appendix NVRAM Reset ➤ Flash Mode 0 ➤ This Appendix describes procedures that you can use to reset your controller in the event it becomes inoperable. NVRAM Reset—The controller was improperly configured. ■ Flash Mode 0—An upgrade to the controller was attempted, ■... -
Page 49: Flash Mode 0
Adaptec SCSI RAID 2010S/2015S Installation Guide NVRAM Reset Adaptec ZCR controllers retain their setup parameters even when powered off. These parameters are stored on the controller in an area of nonvolatile memory called NVRAM. There is a possibility that, through improper configuration, the controller can be put into a state where it hangs the system. - Page 50 Restart the system from the SMOR start floppy disk. If the system restarts normally, the controller can now be configured using SMOR or Storage Manager. Use SMOR.exe to flash the controller BIOS and SMOR images. If the system fails to restart, call Adaptec Technical Support. Controller Reset Procedures Step...
- Page 51 Adaptec SCSI RAID 2010S/2015S Installation Guide...
-
Page 52: Specifications
Specifications DC Power Requirements Voltage (all DC) ASR-2010S/2015S Ripple and noise Current Requirements Adaptec ZCR Controllers (ASR-2010S/ 2015S) Environmental Specifications Ambient temperature without battery backup module Relative humidity Altitude Note: Forced airflow is recommended, but not required. 3.3 V ± .3 V 50 mV peak-to-peak maximum 1.2 A... - Page 53 Adaptec SCSI RAID 2010S/2015S Installation Guide...
- Page 54 Adaptec, Inc. 691 South Milpitas Boulevard Milpitas, CA 95035 © 2000-2002 Adaptec, Inc. All rights reserved. Adaptec, and the Adaptec logo are trademarks of Adaptec, Inc. which may be registered in some jurisdictions. : 513336-03, Rev. A BD 08/02 UMBER...
