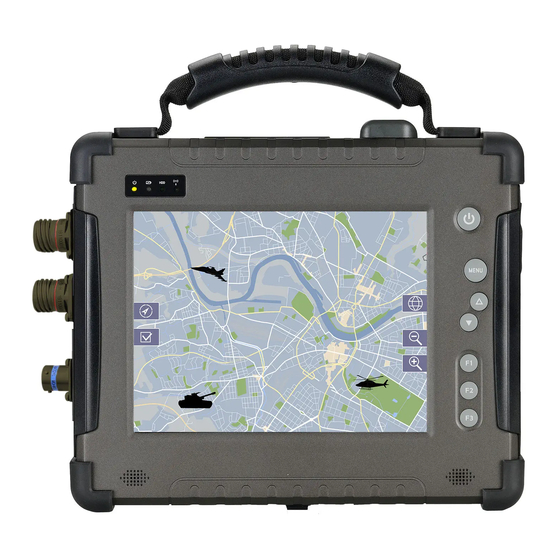

- Page 1 Porty G4 Ultra-Rugged Tablet R08IWK8M-RTU1GP Intel® Core™ i5-8265U 1.6 GHz (turbo up to 3.9 GHz) Quick Start Guide Document Version 1.0 Please read this instructions before operating the device and retain them for future reference.
-
Page 2: Table Of Contents
8.4"/ 10.4" Ultra-Rugged Tablet Quick Start Guide Contents CHAPTER 1: READ ME FIRST ............................3 1.1 A .............................3 DVISORY ONVENTIONS 1.2 S ............................4 AFETY NFORMATION 1.3 H ..........................6 ANDLING AND AINTENANCE 1.4 D C) ........................7 ECLARATION OF ONFORMITY CHAPTER 2: GETTING STARTED ..........................8 2.1 O ...............................8 VERVIEW... -
Page 3: Chapter 1: Read Me First
Chapter 1: Read Me First Chapter 1: Read Me First 1.1 Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. These are Notes, Important, Cautions, and Warnings. -
Page 4: Safety Information
8.4"/ 10.4" Ultra-Rugged Tablet Quick Start Guide 1.2 Safety Information Precaution on Battery Pack When the Battery Pack Has Deteriorated, Précaution avec le bloc-pile Replace It with a New Battery. Continued use of a damaged battery pack may result in heat generation, ignition or battery rupture. - Page 5 Chapter 1: Read Me First General Product Safety This product should not be used near water Sécurité générale such as bathtubs, sinks, swimming pools, wet basement, etc. produits [FR] Ce produit ne dois pas être utilisé près de l'eau comme les baignoires, les éviers, les Do not block any ventilation openings.
-
Page 6: Handling And Maintenance
8.4"/ 10.4" Ultra-Rugged Tablet Quick Start Guide 1.3 Handling and Maintenance Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or detergent on the product. General Guideline [FR] Essuyer délicatement l'écran avec un chiffon doux non pelucheux. Ne pas utiliser Guide Général d'alcool ou un détergent sur le produit. -
Page 7: Declaration Of Conformity (Doc)
Chapter 1: Read Me First 1.4 Declaration of Conformity (DoC) FCC Statement This device complies with part 15 FCC rules. Operation is subject to the following two conditions: 1. This device may not cause harmful interference. 2. This device must accept any interference received including interference that may cause undesired operation This equipment has been tested and found to comply with the limits for a class "B"... -
Page 8: Chapter 2: Getting Started
Computer. 2.2 Introduction Thank you for purchasing Porty G4 Ultra-Rugged Tablet. The Ultra-Rugged Tablets are powered by Intel® Core™ i5-8265U 1.6 GHz (turbo up to 3.9 GHz) processor that was designed for high- performance computing and featured a 4-wire resistive touch screen may be operated with ease by either a plastic stylus or a fingertip. -
Page 9: Unpacking
Chapter 2: Getting Started 2.4 Unpacking If any of the following items are missing or damaged, contact us. Standard packing list includes: Tablet Computer Standard Battery Driver CD Quick Start Guide... -
Page 10: Description Of Parts
8.4"/ 10.4" Ultra-Rugged Tablet Quick Start Guide 2.5 Description of Parts 8.4”, R08IWK8M-RTU1GP Front: Right: Left: No Item Description Resistive Display acts as one of the inputs for the Touch Screen Item Description Tablet Computer. 2 x USB 3.0 High-speed USB LED Indicators Show the current port connects to status of the Tablet... - Page 11 Chapter 2: Getting Started Top: Rear: Bottom: Item Description Docking Port docking solutions such Connector vehicle docking provide power and external antenna.
-
Page 12: Hotkey For Specific Functions
Porty G4 Ultra-Rugged Tablet Quick Start Guide 2.6 HotKey for Specific Functions For the physical buttons on the Ultra-Rugged Tablet Computer, in addition to their dedicated functions detailed in the previous section, they can also be used to emulate commonly used keyboard keystrokes. -
Page 13: First-Time Operation
Chapter 2: Getting Started 2.8 First-time Operation To start using the tablet computer for the first time: • Install the battery pack. • Install the Micro SD card (If needed). • Install the Micro SIM card (If equipped with 4G/ LTE or 3G function) •... -
Page 14: Installing Micro Sd Card
Porty G4 Ultra-Rugged Tablet Quick Start Guide 2.10 Installing Micro SD Card To install the SD card to the Tablet Computer: Power off the Tablet Computer. Open the I/O Cover. Insert the SD card in to the SD card slot. -
Page 15: Installing Micro Sim-Card
Chapter 2: Getting Started 2.11 Installing Micro SIM-Card Notice that feature is optional. The Tablet Computer supports data connection with 4G/LTE 4G/LTE or 3G Modules and fits Micro-SIM card. Caution Power off the tablet before installing the (4G/LTE or 3G module and micro SIM card, or the Tablet Computer might be damaged by the incorrect installation behaviors. -
Page 16: Powering On And Off
Porty G4 Ultra-Rugged Tablet Quick Start Guide Caution Use only the AC adapter included with your Tablet Computer. Using other AC adapters may damage the Tablet Computer and the Battery. Attention N'utilisez que l'adaptateur secteur fourni avec votre tablette. L'utilisation d'autres adaptateurs secteur peut endommager la tablette et la batterie. - Page 17 Chapter 2: Getting Started Note: • Do not press the power button repeatedly. • Do not perform the following operations until the Disk Activity Indicator off. 1. Connecting or disconnecting the AC adapter 2. Pressing the power button 3. Touching the tablet buttons, screen, or external keyboard/mouse Powering Off Perform the following procedure to power off the Tablet Computer: ...
-
Page 18: Chapter 3: First Time Operation
3.2 Win-set Introduction To implement the process of function test or BIOS update, you have to use VGA connector to show the Porty G4's output to a display (Resolution will be adjusted automatically). 1. The procedure to test connecting with OBD BOX 1.1 After running the program, please select the "P-Module VBat Test... - Page 19 Chapter 3: First Time Operation 2. The procedure to update bios of MCU 2.1 Open “MCU AP” folder and run “SerialBootloaderDataSource.exe” 2.2. a. Click “Select Hex File(s)” b. Click .hex file c. Click “Open” d. Run the Hex file successfully as follow. IBWD_PWC 2.3 a.
- Page 20 Porty G4 Ultra-Rugged Tablet Quick Start Guide 2.5 Click “Enter Burn” 2.6 If the program shows the notice “Click the ‘Update Application Firmware’ button to continue ” ,please click ”Update Application Firmware” . 2.7 When the message ”Bootload process completed successfully!” appears in...
- Page 21 Chapter 3: First Time Operation 3. The procedure to test all the Wake up function 3.1 IR Wake up a. Implement Daimler MCU Control and perform COM Port Connect to COM3 then set IR Enable. b. Click Get IR Wake and make sure IR Wake Status=Enable c.
- Page 22 Porty G4 Ultra-Rugged Tablet Quick Start Guide 3.2 OBD In Wake up a. Implement Daimler MCU Control and perform COM Port connect to COM3 then set OBD In Enable. b. Click Get OBD In and make sure OBD In Wake Status=Enable。...
- Page 23 Chapter 3: First Time Operation d. Click OBD Out settings and make sure whether the count and time information are correct. 3.4 Button Wake up a. Implement Daimler MCU Control and perform COM Port connect to COM3 then set Button out enable b.
- Page 24 Porty G4 Ultra-Rugged Tablet Quick Start Guide 3.5 RTC Wake up a. Implement Daimler MCU Control and perform COM Port connect to COM1 then set RTC enable. b. Click Get RTC Wake and make sure RTC Wake Status=Enable. c. Click on the Time Sync and allow time synchronization d.
- Page 25 Chapter 3: First Time Operation 3.8 G-Sensor Wake up a. Implement Daimler MCU Control and perform COM Port connect to COM1 then set G-Sensor enable. b. Click Get G-Sensor Wake and make sure G-Sensor Status =Enable。 c. Click on the G-Sensor lnt to adjust the sensitivity of G-Sensor (10 to 0). d.
- Page 26 Porty G4 Ultra-Rugged Tablet Quick Start Guide Basic Troubleshooting Problem Solution Make sure the AC adapter is properly The removable battery is not charging connected, and that the removable battery is properly inserted. The Tablet Computer may be in sleep mode.
- Page 27 Chapter 3: First Time Operation Problem Solution Make sure that wireless LAN feature is I cannot connect to another wireless LAN device powered on. Make sure that the SSID setting is the same for every wireless LAN device in the network.
-
Page 28: Appendix A: Technical Specifications
Porty G4 Ultra-Rugged Tablet Quick Start Guide Appendix A: Technical Specifications Model Name R08IWK8M-RTU1GP Display Size 8.4" Resolution 800 x 600 Brightness 600 nits Contrast Ratio 600:1 Viewing Angles 75/75/60/70 Touch Resistive Touch System Specifications Intel® Core™ i5-8265U 1.6 GHz (turbo up to 3.9 GHz) - Page 29 Appendix A: Technical Specifications Model Name R08IWK8M-RTU1GP Mechanical and Environment MIL-STD-810G Method 514.6 Vibration Procedure I MIL-STD-810G Method 516.6, 4ft to concrete Drop IP Rating Default IP54 (Optional IP65) Power Management Power Input 19V DC 11.1V, 5200mAh Lithium-Ion Battery (6cells) Battery Battery Operating Time 8 hours*...
- Page 30 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © 2018 Winmate Inc. All rights reserved.
- Page 31 FCC Warning This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Any Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment.
