Page 1: Quick Start Guide
M101P Rugged Windows Tablet Intel® Apollo Lake Pentium N4200 Windows 10 IoT Enterprise Quick Start Guide Version 1.0 Document Part Number: 9152101K100K... -
Page 2: Fcc Statement
Rugged Windows Tablet M101P Advisory Conventions Four types of advisories are used throughout the user manual to provide helpful information or to alert you to the potential for hardware damage or personal injury. Note: A note is used to emphasize helpful information Important: An important note indicates information that is important for you to know. -
Page 3: Safety Information
Quick Start Guide Safety Information Precaution on Battery Pack Do Not Expose the Battery Pack to Excessive Heat, Précaution avec le bloc-pile or Extreme Heat (Near Fire, in Direct Sunlight for example) Generation of heat, ignition or rupture may result [FR] Ne pas exposer le bloc-pile à... - Page 4 Rugged Windows Tablet M101P General Product Safety Use only with its transport carriage, stand, tripod, Sécurité générale des console or table specified by the manufacturer or sold with the product. When using a carriage, produits move the carriage assembly with the product carefully to avoid damage from falling over.
-
Page 5: Handling And Maintenance

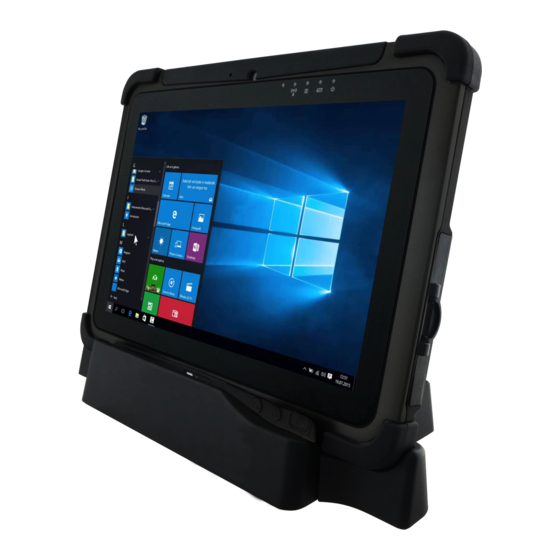

Quick Start Guide Handling and Maintenance Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or detergent on the product. General Guideline [FR] Essuyer délicatement l'écran avec un Guide Général chiffon doux non pelucheux. Ne pas utiliser d'alcool ou un détergent sur le produit. - Page 6 Congratulations on purchasing Winmate® 10.1-inch Rugged Windows Tablet Computer M101P. M101P is a rugged tablet PC with robust set of features designed to withstand industrial use while providing high tech solutions that increase productivity, improve safety, and reduce operational costs. The processing power comes from Intel's Apollo Lake processor paired with genuine Intel graphics for high performance.
-
Page 7: Description Of Parts
Quick Start Guide Description of Parts Front: Right: Item Description Item Description Display and act as one of Micro HDMI HDMI output to external 10.1” Touch the inputs for the Tablet display Screen Computer Reset Button Hardware reset button Dual Digital Use during video MicroSD Card Memory card reader... - Page 8 Rugged Windows Tablet M101P Rear: Top: Bottom: Item Description Item Description Optional Barcode Scanner for Kensington Provide lock access for Barcode reading of 1D/2D Lock Port Kensington Lock. barcode. Optional Provides connectivity to Docking Port to docking solutions Extension custom modules for...
-
Page 9: Hotkey For Specific Functions
Quick Start Guide Indicators Icon Indicator Description Blue– Tablet is ON Power Indicator No light– Tablet is OFF Battery Status Orange–AC adapter is plugged in and charging Green–AC adapter is plugged in and battery is full charged Solid Red - Low battery (<10%) Blinking Red –... -
Page 10: Installing Sim Card (For 3G/Lte Equipped Devices)
Rugged Windows Tablet M101P Installing SIM Card (For 3G/LTE Equipped Devices) The Tablet Computer supports 3G/LTE data connection and fits a Micro-SIM card. To install the SIM card: 1. Unscrew four screws that secure the service window in the rear. -
Page 11: Installing Battery
Quick Start Guide Installing Battery To install the standard battery pack: 1. Disconnect any cords connected to the tablet computer. 2. Turn the tablet over, back facing up. 3. Locate the Battery Lock Latch and push it to the “Unlocked” position. 4. -
Page 12: Starting The Tablet
Rugged Windows Tablet M101P Starting the Tablet Important: When powering on the device for the first time, please make sure there’s no interruption during the Windows setting up process, for example, accidentally powering off. If it happened, please access the recovery menu by pressing Fn1 button on the front bezel to initiate recovery process. -
Page 13: Using Hottab Utility
Quick Start Guide Using Hottab Utility Hottab is the utility to control all main functions of your tablet computer. When Windows starts up, Hottab starts and runs on the background. To display the Hottab interface press the (Menu) button located on the front panel or launch the application. -
Page 14: Using The Camera
Rugged Windows Tablet M101P Using the Camera To take photos or videos: 1. Open the Hottab application. The on-screen Hottab Camera Indicator lights orange. 2. Point the camera at an object. 3. Touch the on-screen shutter button to take a photo or video record button to record a video. -
Page 15: Replacing Battery
Quick Start Guide Replacing Battery The M101P Tablet supports hot-swap, meaning the tablet doesn’t need to be powered off to replace the main battery. To support hotswap, there is a backup battery inside the tablet that is charged together with the main battery. - Page 16 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © 2018 Winmate Inc. All rights reserved.
