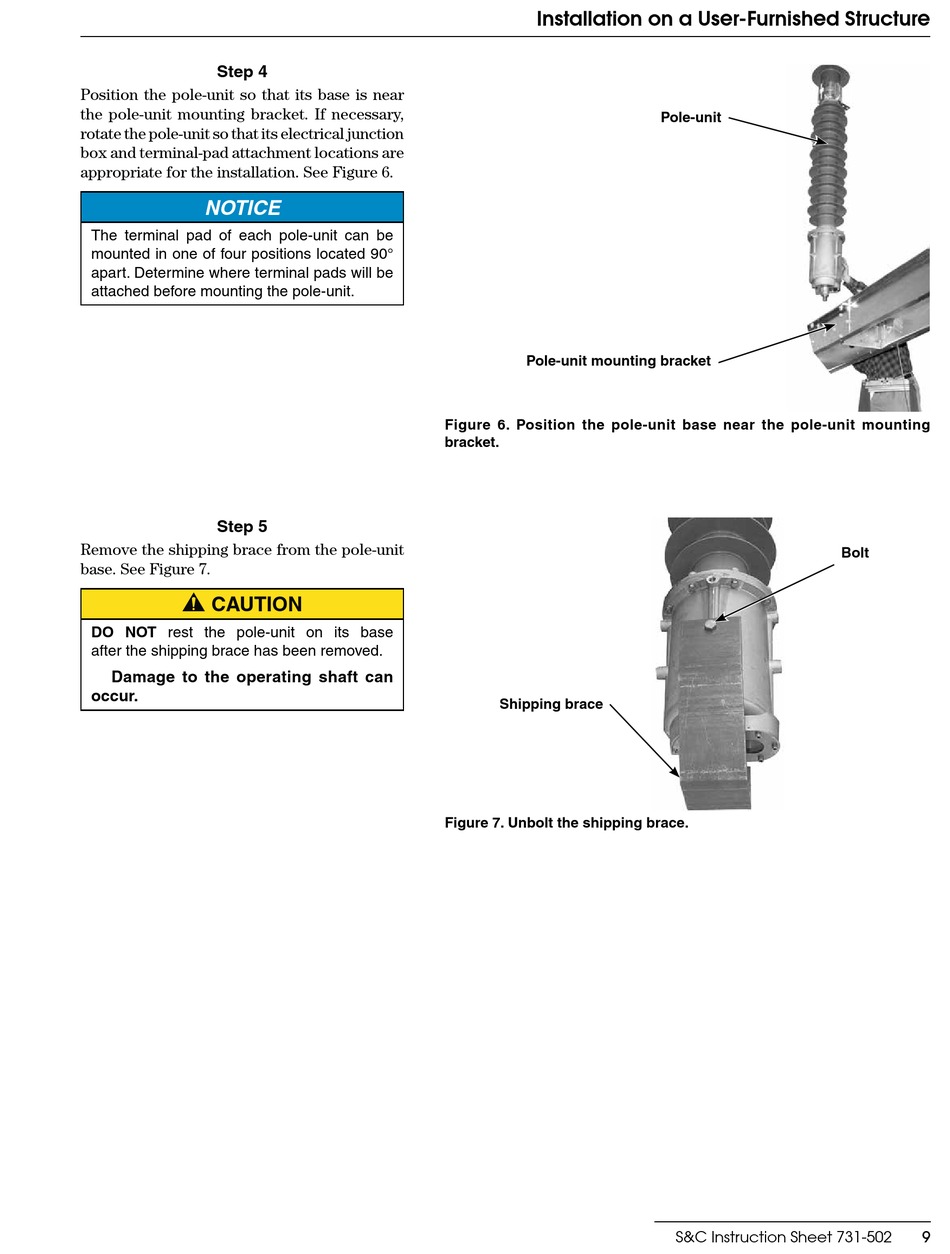

S&C Trans-Rupter II SE Installation Manual page 9

Step 4
Position the pole-unit so that its base is near
the pole-unit mounting bracket. If necessary,
rotate the pole-unit so that its electrical junction
box and terminal-pad attachment locations are
appropriate for the installation. See Figure 6.
NOTICE
The terminal pad of each pole-unit can be
mounted in one of four positions located 90°
apart . Determine where terminal pads will be
attached before mounting the pole-unit .
Step 5
Remove the shipping brace from the pole-unit
base. See Figure 7.
Ç
CAUTION
DO NOT rest the pole-unit on its base
after the shipping brace has been removed .
Damage to the operating shaft can
occur.
Installation on a User-Furnished Structure
Pole-unit mounting bracket
Figure 6. Position the pole-unit base near the pole-unit mounting
bracket.
Shipping brace
Figure 7. Unbolt the shipping brace.
Pole-unit
S&C Instruction Sheet 731-502
Bolt
