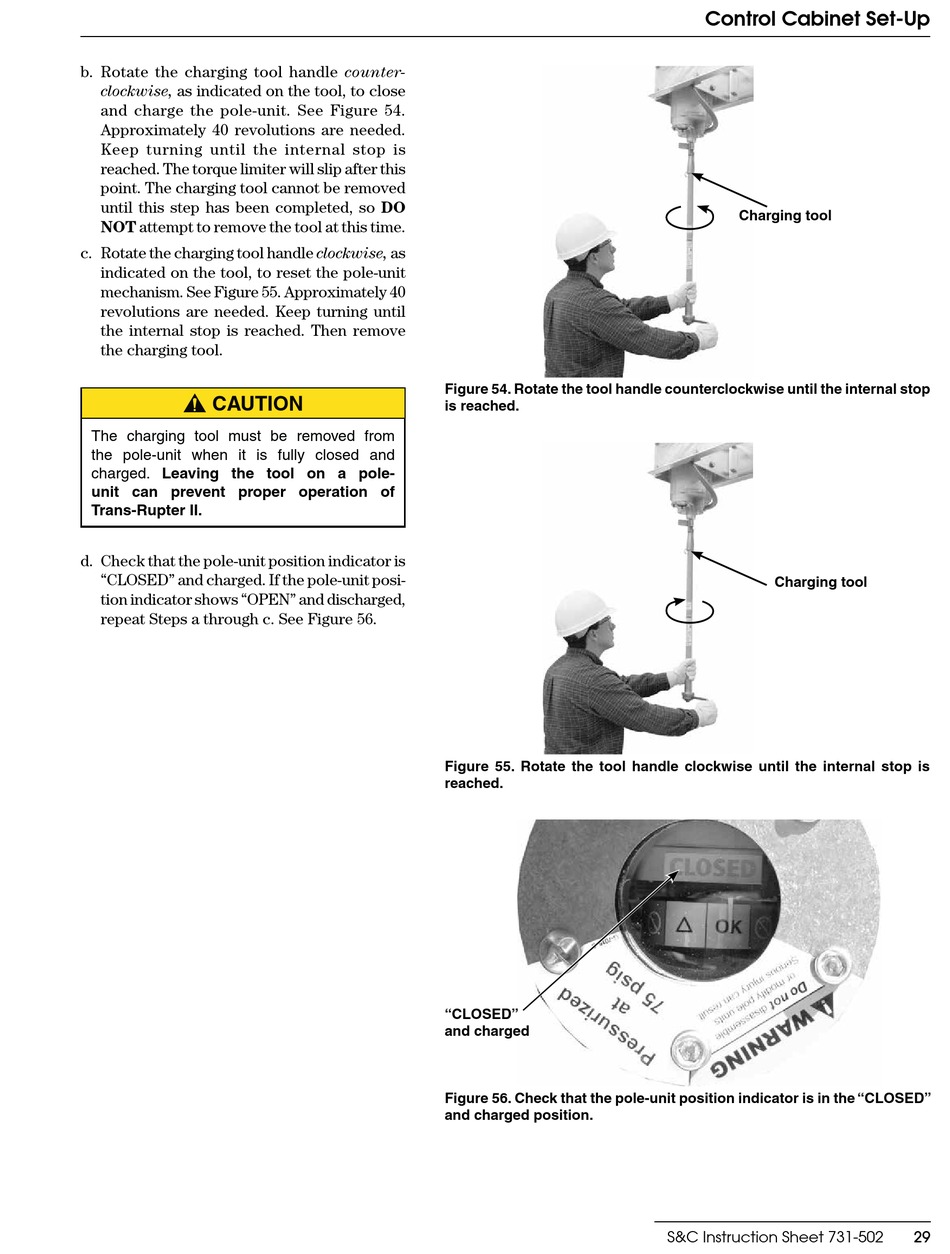

b. Rotate the charging tool handle counter-
clockwise, as indicated on the tool, to close
and charge the pole-unit. See Figure 54.
Approximately 40 revolutions are needed.
Keep turning until the internal stop is
reached. The torque limiter will slip after this
point. The charging tool cannot be removed
until this step has been com pleted, so DO
NOT attempt to remove the tool at this time.
c. Rotate the charging tool handle clockwise, as
indicated on the tool, to reset the pole-unit
mechanism. See Figure 55. Approxi mately 40
revolutions are needed. Keep turning until
the internal stop is reached. Then remove
the charging tool.
Ç
CAUTION
The charging tool must be removed from
the pole-unit when it is fully closed and
charged . Leaving the tool on a pole-
unit can prevent proper operation of
Trans-Rupter II.
d. Check that the pole-unit position indicator is
"CLOSED" and charged. If the pole-unit posi-
tion indicator shows "OPEN" and discharged,
repeat Steps a through c. See Figure 56.
Figure 54. Rotate the tool handle counterclockwise until the internal stop
is reached.
Figure 55. Rotate the tool handle clockwise until the internal stop is
reached.
"CLOSED"
and charged
Figure 56. Check that the pole-unit position indicator is in the "CLOSED"
and charged position.
Control Cabinet Set-Up
Charging tool
Charging tool
