Step 69
Push the insulating shaft and the tool handle
together. Align the holes on the insulating shaft
and the tool handle, then push the linchpin
through the holes. See Figures 77 and 78.

Extra Sections for the Charging Tool

Extra sections can be assembled in accordance
with the instructions above. It is recommended
that a maximum of two 48-inch sections be
added to the tool.
Manual Charging Tool Assembly
Tool handle Linchpin

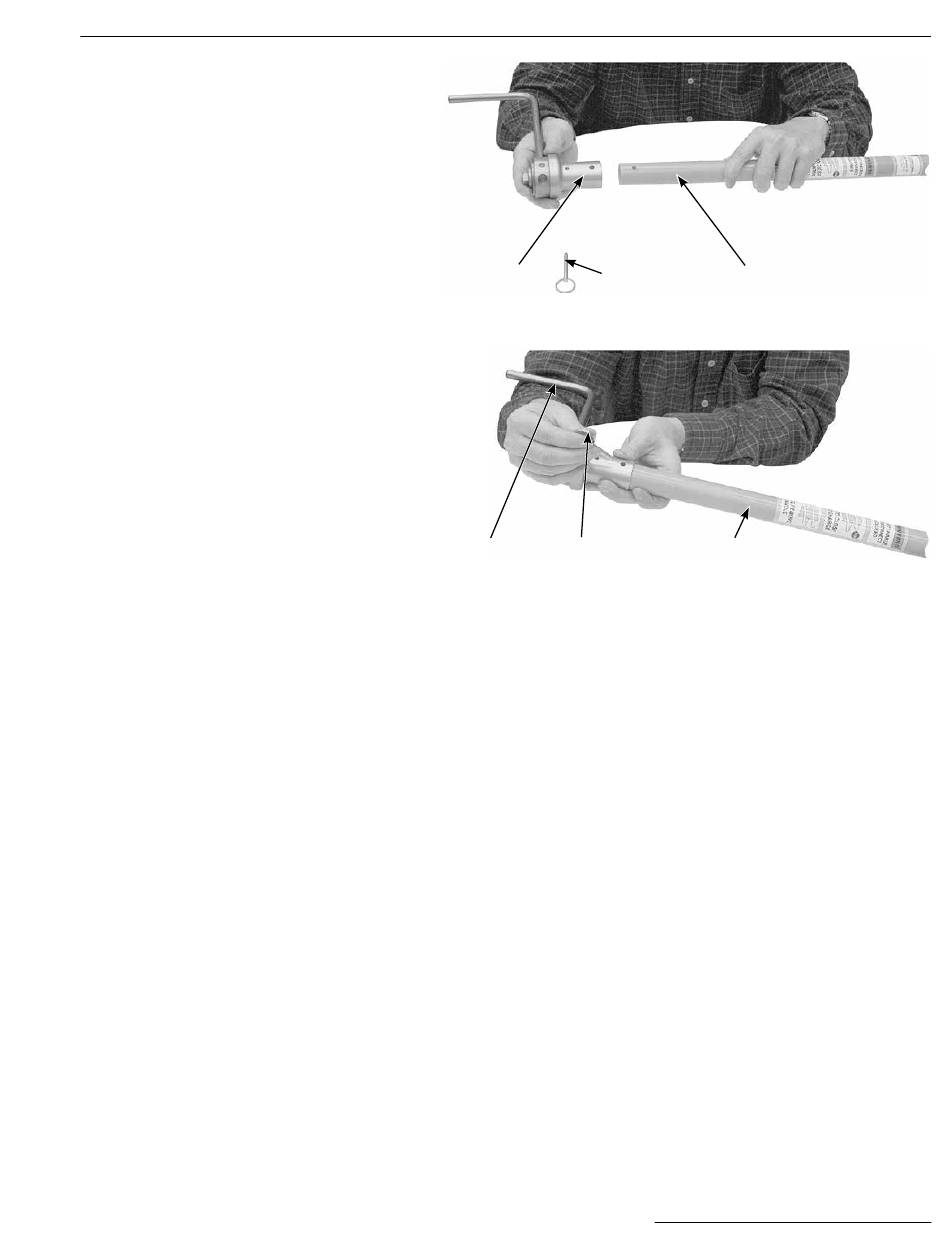

Figure 77. Push the handle and the insulating shaft together.
Handle Linchpin
Figure 78. Align the holes on the handle and the insulating shaft, then
insert the linchpin.
Insulating shaft
Insulating shaft
