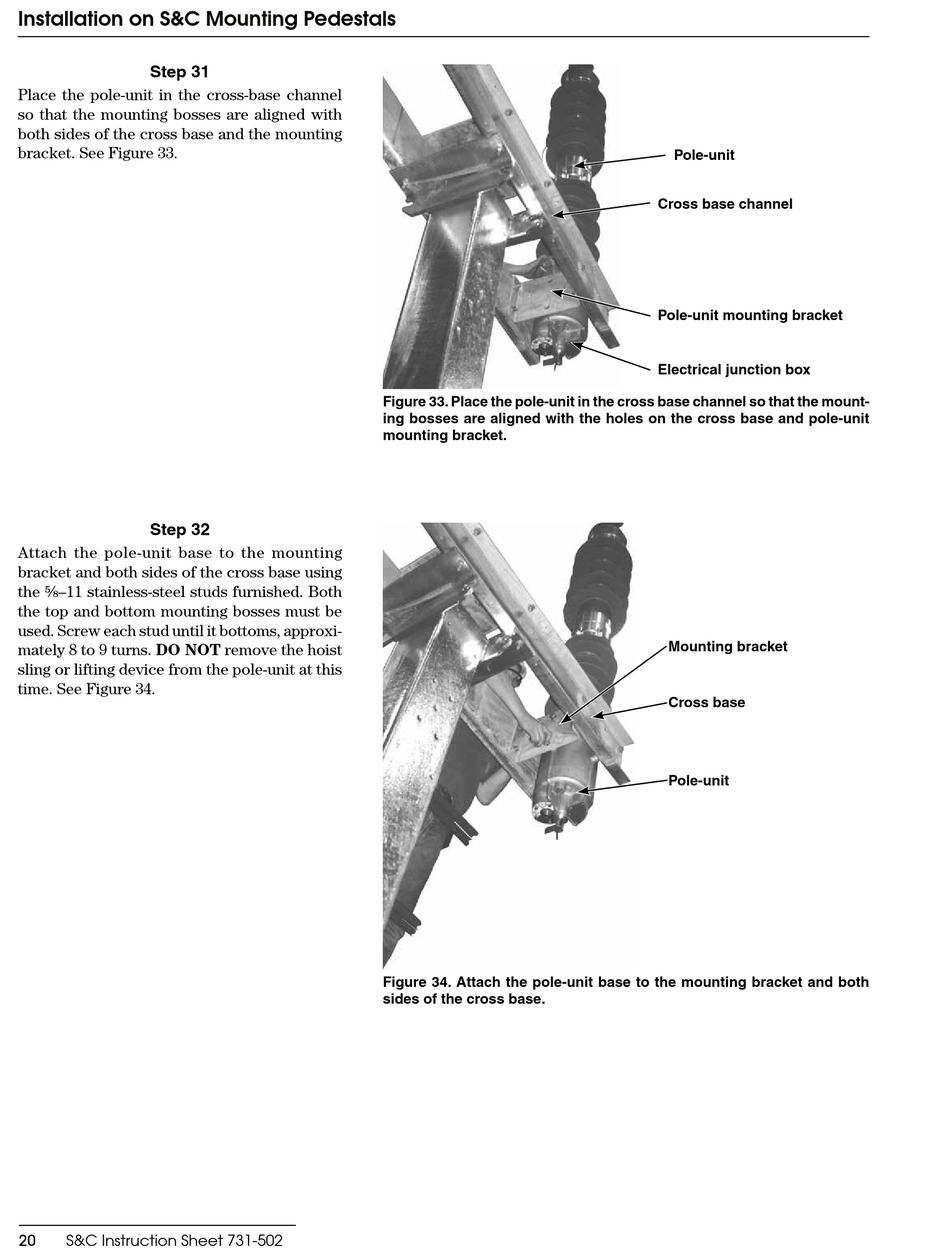

S&C Trans-Rupter II SE Installation Manual page 20

Installation on S&C Mounting Pedestals
Step 31
Place the pole-unit in the cross-base channel
so that the mounting bosses are aligned with
both sides of the cross base and the mounting
bracket. See Figure 33.
Step 32
Attach the pole-unit base to the mounting
bracket and both sides of the cross base using
the B\,–11 stainless-steel studs furnished. Both
the top and bottom mounting bosses must be
used. Screw each stud until it bottoms, approxi-
mately 8 to 9 turns. DO NOT remove the hoist
sling or lifting device from the pole-unit at this
time. See Figure 34.
20 S&C Instruction Sheet 731-502
Figure 33. Place the pole-unit in the cross base channel so that the mount-
ing bosses are aligned with the holes on the cross base and pole-unit
mounting bracket.
Figure 34. Attach the pole-unit base to the mounting bracket and both
sides of the cross base.
Pole-unit
Cross base channel
Pole-unit mounting bracket
Electrical junction box
Mounting bracket
Cross base
Pole-unit
