Step 45
When the quick-connect option ("-C2") is speci-
fied plug-style connectors will replace the butt-
splice connections to the pole-unit.
The male plug is keyed to the female socket.
See Figure 45. Push the plug into the socket and
turn the black ring until the red line around the
outside of the socket is obscured. See Figures 46
and 47.
Installation

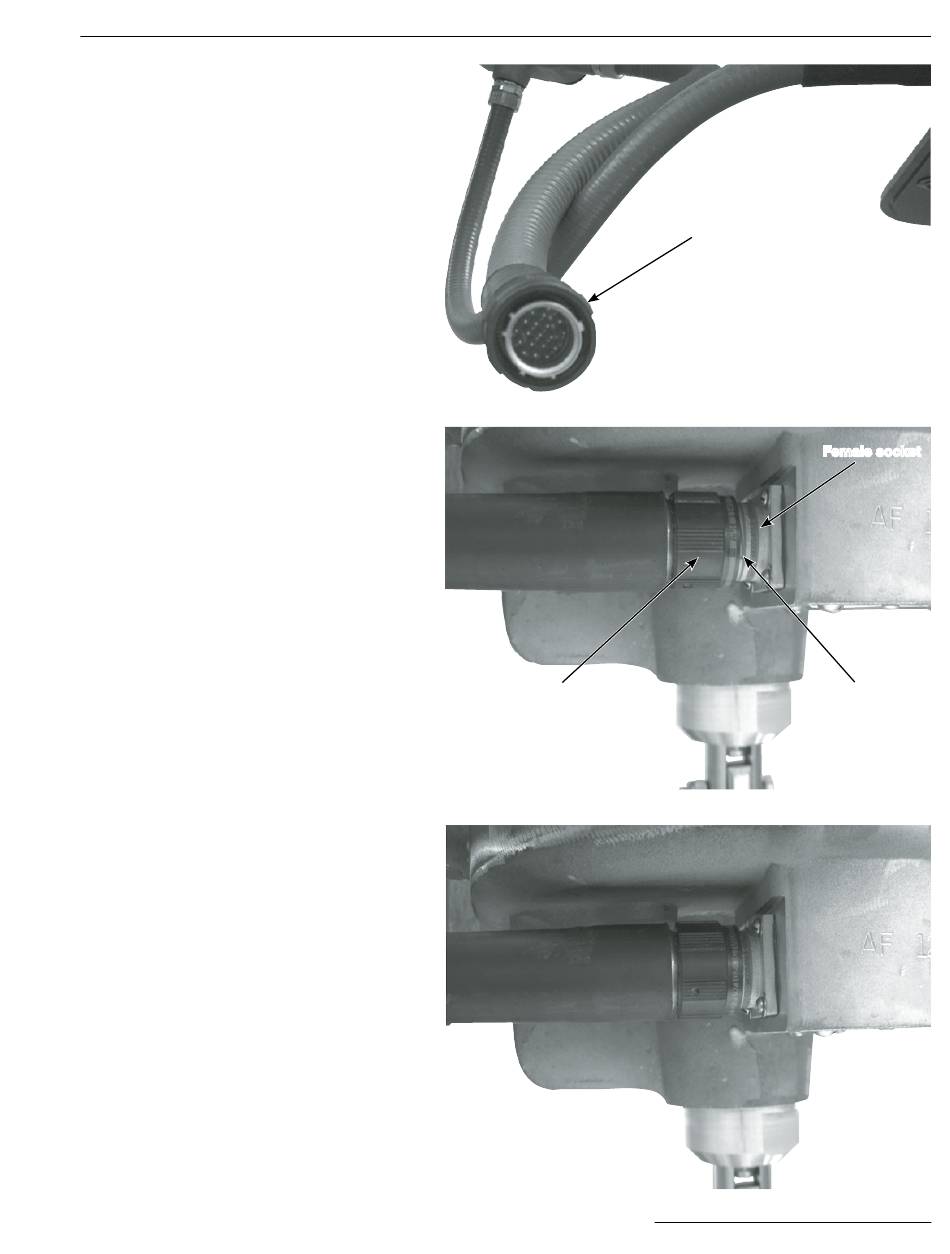

Figure 45. Optional quick-connect control cable.
Black ring
Figure 46. Turn ring until red line is obscured.
Figure 47. Quick connector fully tightened.
on S&C Mounting Pedestals
Male plug
Female socket
S&C Instruction Sheet 731-502
Red line
