Installing the Conduit Assembly

Step 39
Set the conduit assembly in the hooks at
the top of the pedestals. The conduit should
be attached to the cross-base opposite the
control cabinet. Make sure the conduit
is placed along the pedestal to which the
control cabinet is attached. Position the conduit
ends near the electrical junction boxes of the
pole-units. See Figure 39.
Step 40
Using the offset mounting brackets, attach
the conduit assembly to the cross base. Bolt
the brackets through the predrilled holes. See
Figure 40.
Step 41
Using the offset mounting brackets, attach the
conduit assembly to the pedestal. See Figure 41.
Installation
Conduit assembly
Pedestal hooks

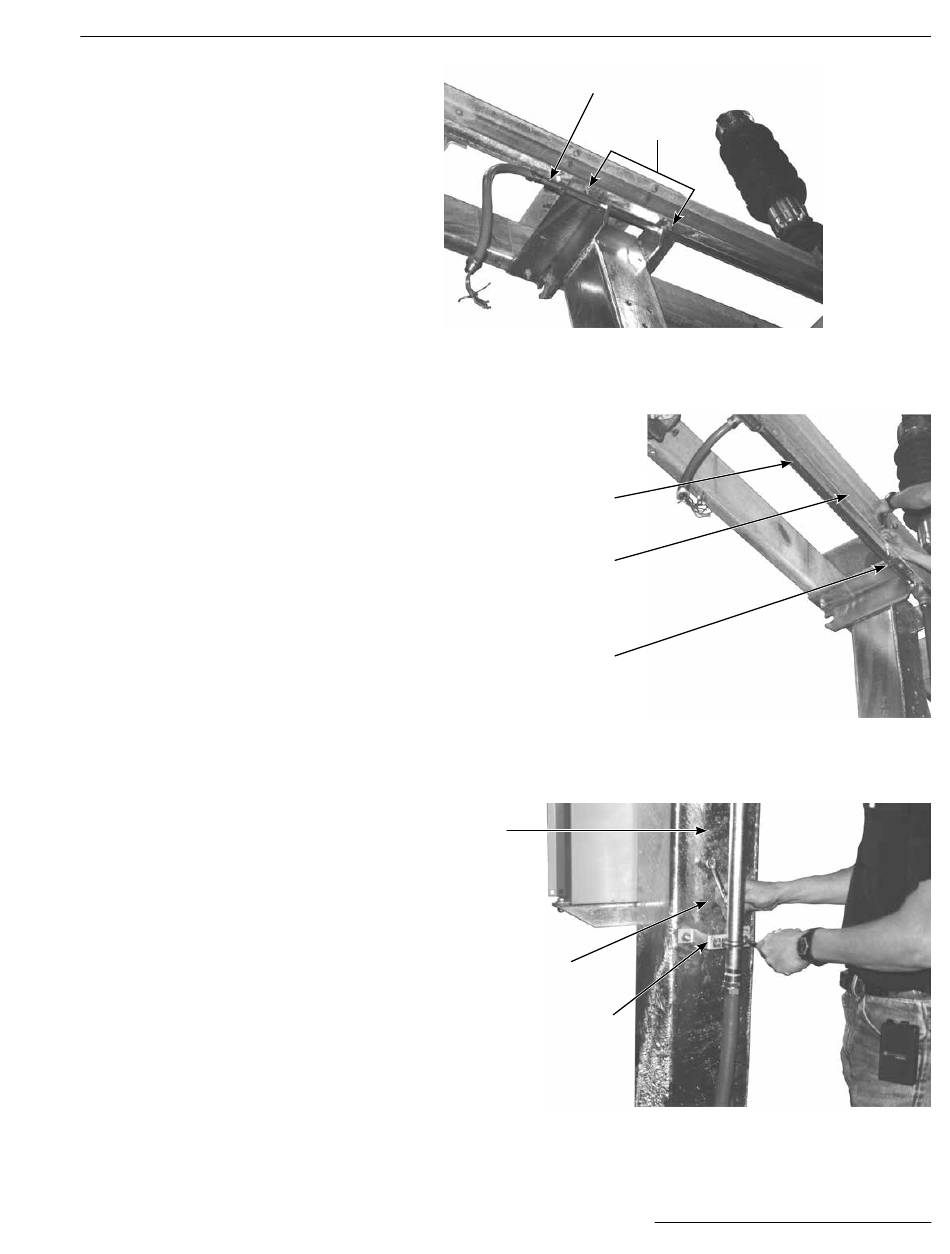

Figure 39. Set the conduit assembly in the hooks at the top of the
pedestals.
Conduit assembly
Cross base
Offset mounting bracket
Figure 40. Using the offset mounting brackets, attach the conduit
assembly to the cross base.
Pedestal
Conduit assembly
Offset mounting bracket
Figure 41. Using the offset mounting brackets, attach the conduit
assembly to the pedestal.
on S&C Mounting Pedestals
S&C Instruction Sheet 731-502
