Step 53
To initiate a trip operation, inject secondary
current into the relay. Refer to the relay manu-
facturer's instructions.
Verify that the trip-energy supply is storing
energy. Open the swing out panel to access the
circuit board of the trip-energy supply. Press the
push button on the circuit board. See Figure 60.
If the trip-energy supply is function ing properly,
the red LED on the board will light continuously.

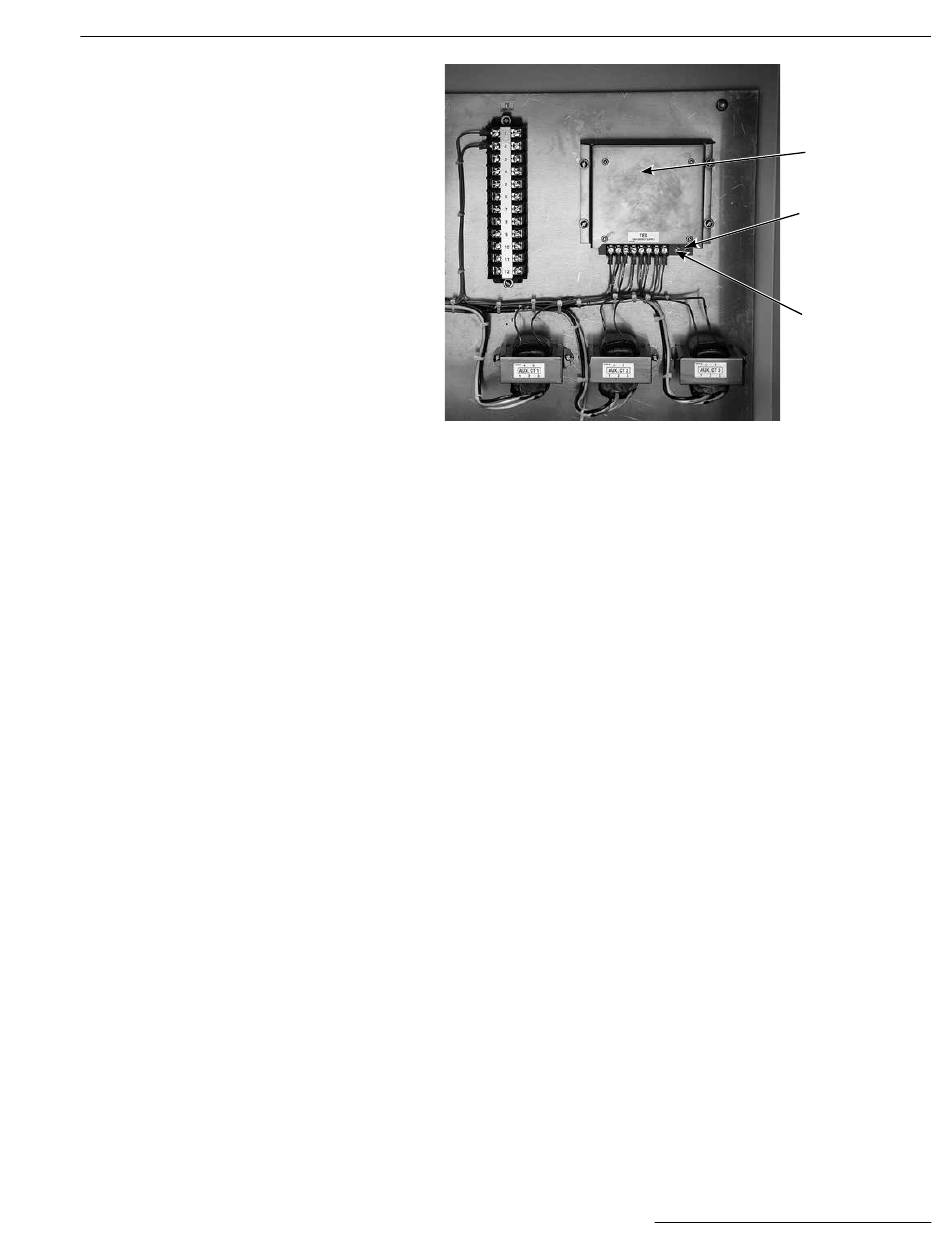

Figure 60. To verify the trip-energy supply is storing energy, press the push
button on the trip-energy supply circuit board. If the trip-energy supply
is functioning properly, the red LED on the board will light continuously.
Control Cabinet Set-Up
Trip-energy
supply
Push button
Red LED
