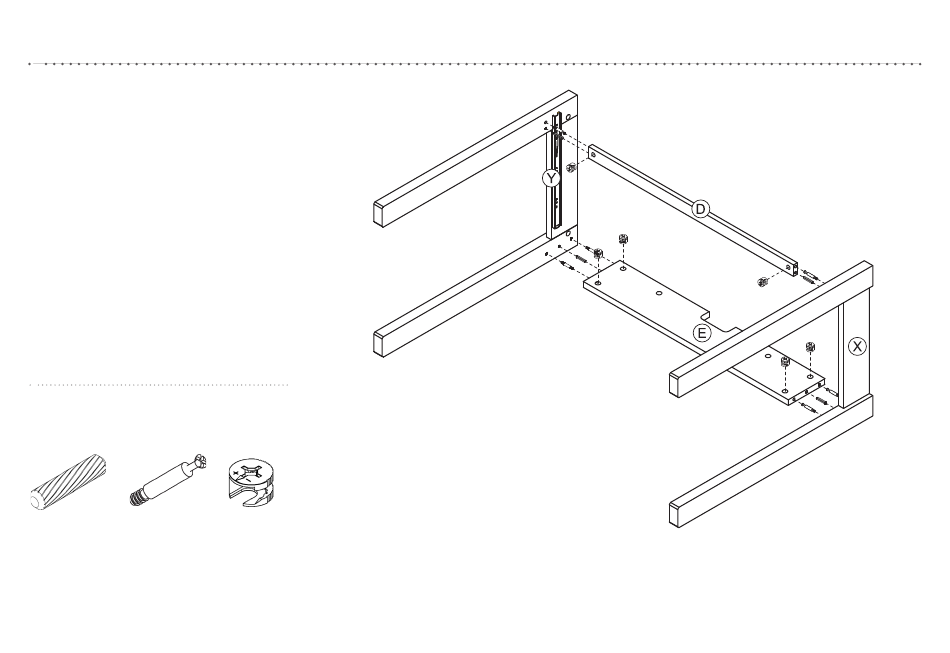

step 1: attach front stretcher and back panel to side frames
(H1) x 4 (H2) x 6
wooden dowel cam bolt
1.1. Carefully tap small wooden dowels into place in left and right side frames. Leave 1/2" of the dowels sticking out.
1.2. Screw-In cam bolts must be screwed down flush in left and right side frames.
1.3. Refer to page 6 for instructions on how to use the cam lock system.
1.4. Do not over tighten bolts.
(H3) x 6
cam
