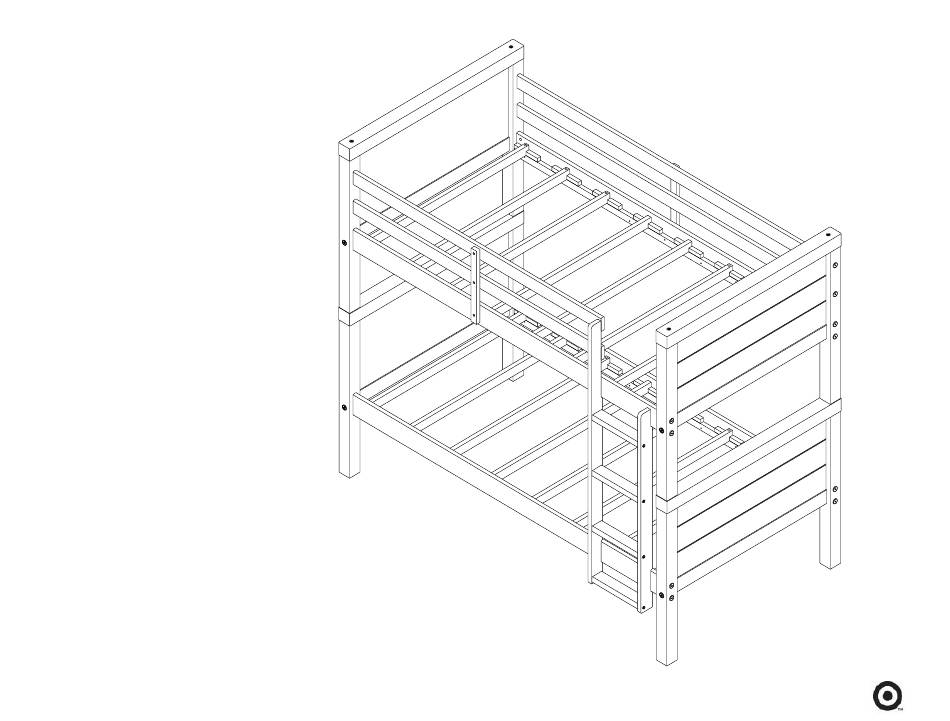

- Page 1 twin over twin bunk bed style # DA7874 DA7874W dpci # 249/24/2227 249/24/2229 >>assembly instructions...
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don't start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you'll be on your way to transforming your room in no time. - Page 3 table of contents introduction hardware parts list assembly 8-17 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846). For faster service, have the style number and DPCI number ready when calling.
- Page 4 hardware (H1) x 16 (H2) x 8 joint connector (4mm hex head) wood joint connector (4mm hex head) 1/4" x 100mm ø6.5 x 48mm (H3) x 24 (H4) x 24 wood joint connector (4mm hex head) flat head screw ø6.5 x 100mm ø4 x 35mm (H5) x 6 (H6) x 4...
- Page 5 ITEM DESCRIPTION QUANTITY top post top post top post bottom post bottom post top headboard top rail headboard bottom rail top side rail (with 3 holes) bottom side rail (with 2 holes) top side rail (with 1 hole) bottom side rail (with no hole) slat long guardrail short guardrail...
- Page 6 top post top post top post bottom post 2 pcs 1 pc 1 pc 2 pcs bottom post top headboard top rail headboard bottom rail top side rail (with 3 holes) 2 pcs 2 pcs 4 pcs 1 pc bottom side rail (with 2 holes) top side rail (with 1 hole) bottom side rail (with no hole) slat...
- Page 7 long guardrail short guardrail long ladder end short ladder end 2 pcs 2 pcs 1 pc 1 pc ladder step guardrail leg headboard panel slats 4 pcs 2 pcs 4 pcs 4 pcs bottom headboard top rail 2 pcs...
- Page 8 step 1. (H7) x 8 small wood dowel ø10 x 50mm (H3) x 8 wood joint connector (4mm hex head) ø6.5 x 100mm Top Bed Head and Footboard 1. Insert small wood dowels (H7) into the ends of top posts (A & B) and headboard bottom rail (G). 2.
- Page 9 step 2. (H7) x 8 small wood dowel ø10 x 50mm (H3) x 8 wood joint connector (4mm hex head) ø6.5 x 100mm Bottom Bed Head and Footboard 1. Insert small wood dowels (H7) into the ends of bottom posts (D & E) and headboard bottom rail (G). 2.
- Page 10 step 3. (H8) x 8 barrel nut ø 11.8 x 15mm (H1) x 8 joint connector (4mm hex head) 1/4" x 100mm Bottom Bed Assembly 1. Insert barrel nuts (8) into side rails (I & K) as shown. 2. Attach two bottom headboards assembled in Step 2 to the bottom side rails (I & K) with joint connectors (H1) and allen key (H9). NOTE: This is the lower bunk.
- Page 11 step 4. (H8) x 8 barrel nut ø 11.8 x 15mm (H7) x 4 small wood dowel ø 10 x 50mm (H1) x 8 joint connector (4mm hex head) 1/4" x 100mm (H3) x 4 wood joint connector (4mm hex head) ø...
- Page 12 step 5. (H4) x 24 flat head screw ø4 x 35mm Bottom Bed Assembly 1. Insert two slats (T) into the center slots of the bottom side rails (I & K) of the lower bunk bed as shown. 2. Insert slats (L) into the remaining holes on the bottom side rails (I & K). 3.
- Page 13 step 6. (H5) x 6 flat head screw ø4 x 30mm (H7) x 4 small wood dowel ø10 x 50mm (H3) x 2 wood joint connector (4mm hex head) ø6.5 x 100mm (H6) x 4 metal dowels ø10 x 100mm 1.
- Page 14 step 7. (H2) x 8 wood joint connector (4mm hex head) ø6.5 x 48mm (H7) x 8 small wood dowel ø10 x 50mm Ladder Assembly 1. Insert small wood dowels (H7) into the end of the ladder steps (Q). 2. Attach left and right ladder end (O & P) to ladder steps (Q) with wood joint connectors (H2). Tighten the wood joint connectors (H2) with allen key (H9).
- Page 15 step 8. (H2) x 6 wood joint connector (4mm hex head) ø6.5 x 48mm 1. Attach the ladder to short guardrails (N) and top side rail (H) with wood joint connector (H2) using a Phillips screwdriver (not included). NOTE: If slats (L) are covering the ladder mounting holes, remove slats (L) and replace after the ladder is attached.
- Page 16 converting bunk bed into two single beds. 1. Remove the ladder and all guardrails. 2 With the help of another person, lift the upper bunk and put it on the floor.
- Page 17 DO NOT ALLOW CHILDREN UNDER 6 YEARS OF AGE TO USE THE UPPER BUNK. BED IS DESIGNED FOR CHILDREN RANGING FROM 6 YEARS OF AGE TO YOUNG TEENAGERS. DO NOT ALLOW HORSEPLAY ON OR UNDER THE BED AND PROHIBIT JUMPING ON THE BED. USE ONLY MATTRESSES WHICH ARE 74"-75"...
- Page 18 © 2017 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
