hamilton
desk
style # DSHAMDSKBK (ebony)
dpci # 249-14-1416
tcin # 17315137
style # HTDESKXXWH (white)
dpci # 249-14-0251
tcin # 13906360
style # HTDESKXXBR (sienna)
dpci # 249-14-0187
tcin # 13821566
>>

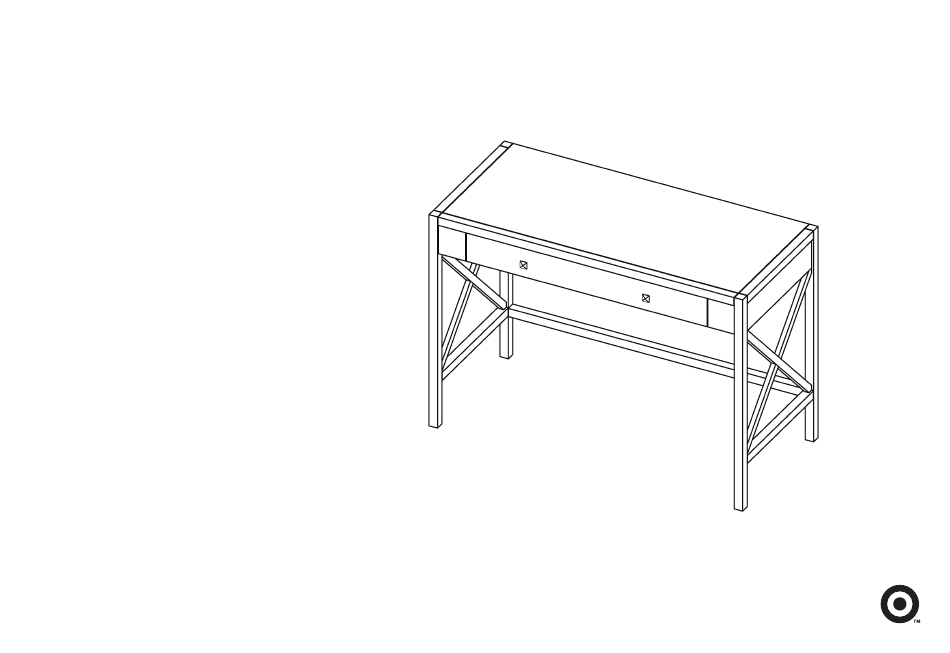

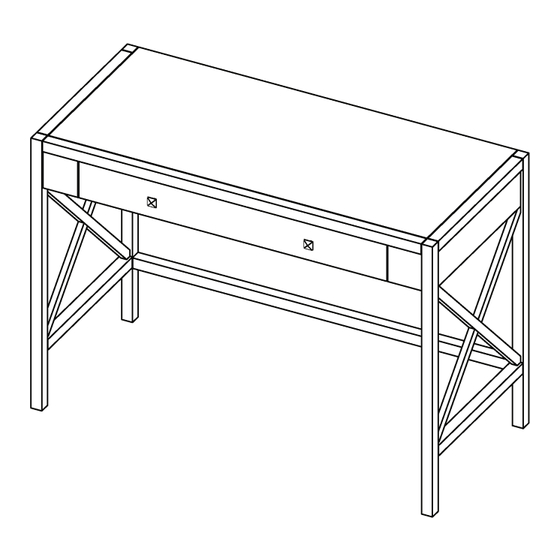

assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target hamilton
Summary of Contents for Target hamilton
- Page 1 # 17315137 style # HTDESKXXWH (white) dpci # 249-14-0251 tcin # 13906360 style # HTDESKXXBR (sienna) dpci # 249-14-0187 tcin # 13821566 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
- Page 2 Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time.
- Page 3 table of contents introduction hardware parts list how to use the cam lock system assembly 7-16 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H1) x 30 (H2) x 22 (H3) x 22 (H4) x 8 (H5) x 2 wooden dowel cam bolt flat head screw knob bolt (H6) x 2 (H7) x 2 (H8) x 2 (H9) x 1 (H10) x 2 knob small cam small cam bolt...
- Page 5 exploded diagram ITEM DESCRIPTION QUANTITY top panel left side frame right side frame left drawer side support right drawer side support front left panel front right panel back panel lower back rail drawer back left drawer side right drawer side drawer bottom drawer support drawer face...
- Page 6 how to use the cam lock system Screw cam bolt into panel Align cam bolt(s) with cam(s) Push cam into panel - arrow feature and insert all the way into on cam top points to panel edge cross-bored hole(s) Rotate cam(s) clockwise 180° to Panels should be tight against each lock panels together other and connection should be rigid...
- Page 7 step 1: attach front panels and drawer side supports to back panel (H1) x 8 (H2) x 4 wooden dowel cam bolt (H3) x 4 (H9) x 1 mini screwdriver 1.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 1.2.
- Page 8 step 2: attach top panel (H1) x 2 (H2) x 8 wooden dowel cam bolt (H3) x 8 (H9) x 1 mini screwdriver 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 2.2. Screw-In cam bolts must be screwed down flush. 2.3.
- Page 9 step 3: attach left side frame and lower back rail (H1) x 8 (H2) x 5 wooden dowel cam bolt (H3) x 5 (H9) x 1 mini screwdriver 3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 3.2.
- Page 10 step 4: attach right side frame (H1) x 8 (H2) x 5 wooden dowel cam bolt (H3) x 5 (H9) x 1 (H10) x 2 mini screwdriver pan head screw 4.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 4.2.
- Page 11 step 5: attach left and right drawer sides to drawer face (H4) x 4 flat head screw 5.1. Align screws with pre-drilled holes. 5.2. Do not over tighten screws.
- Page 12 step 6: attach drawer support (H1) x 2 (H8) x 1 wooden dowel small cam bolt (H7) x 1 (H9) x 1 small cam mini screwdriver 6.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place.
- Page 13 step 7: attach drawer back (H1) x 2 (H8) x 1 wooden dowel small cam bolt (H7) x 1 (H4) x 4 (H9) x 1 small cam flat head screw mini screwdriver 7.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place.
- Page 14 step 8: attach knobs (H5) x 2 (H6) x 2 knob bolt knob 8.1. Align bolts with pre-drilled holes. 8.2. Do not over tighten bolts.
- Page 15 step 9: install drawer...
- Page 16 step 10: install anti-tip kit (H13) (H13) (H12) Position against wall (H15) Mark position of strap hole on wall Drill 1/4’’ hole (H11) Tap in wall anchor Fasten anti-tip strap with flat-head screw provided (H14) (H14) (H15) (H15) (H11) x 1 (H12) x 1 (H15) x 2 (H13) x 1...
- Page 17 d r a w e r w e i g h t l i m i t 1 5 l b s 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2.
- Page 18 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
