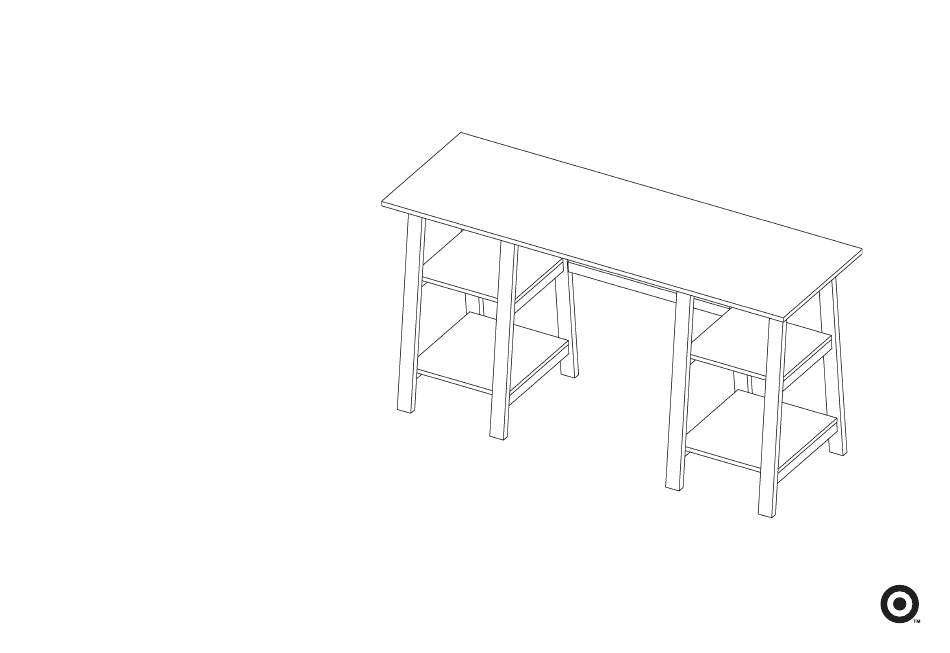

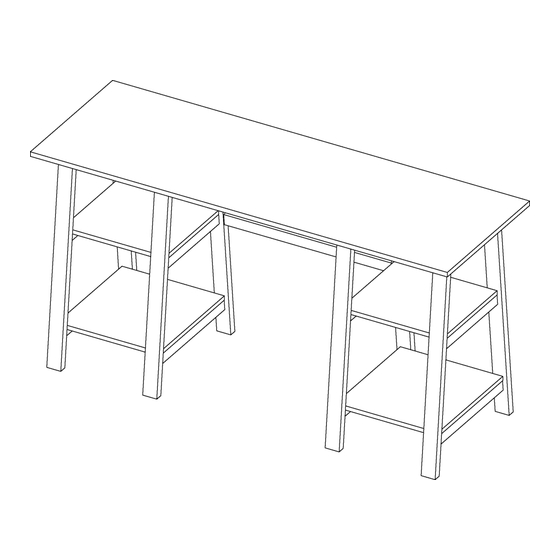

double trestle desk
style # DSDTRDSKBK (black)
dpci # 249-14-0161
tcin # 15652801
style # DSDTRDSKGY (gray / caramel)
dpci # 249-14-0159
tcin # 15617916
>> assembly instructions
© 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
Advertisement
Related Manuals for Target DSDTRDSKBK
Summary of Contents for Target DSDTRDSKBK
- Page 1 # DSDTRDSKBK (black) dpci # 249-14-0161 tcin # 15652801 style # DSDTRDSKGY (gray / caramel) dpci # 249-14-0159 tcin # 15617916 >> assembly instructions © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
-
Page 2: Before You Begin
Congratulations on your latest Target purchase. Now what? Don’t start sweating over this box of parts. This will be easy. We did the hard work for you. All you need to do is follow our simple instructions and you’ll be on your way to transforming your room in no time. - Page 3 table of contents introduction hardware parts list assembly 6-13 QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service. For faster service, have the style number and dpci number ready when calling.
- Page 4 hardware (H4) x 8 (H5) x 10 (H1) x 14 (H2) x 12 (H3) x 24 lock washer washer wooden dowel 1-1/2” pan-head screw 1/4” x 1-1/6” bolt (H6) x 1 (H9) x 1 (H10) x 1 (H7) x 1 (H8) x 1 allen wrench wall anchor...
-
Page 5: Exploded Diagram
exploded diagram ITEM DESCRIPTION QUANTITY desktop side frame left center frame right center frame upper rail rear rail upper shelf lower shelf... - Page 6 step 1: attach upper rails to desktop (H1) x 4 (H2) x 6 wooden dowel 1-1/2” pan-head screw 1.1. Do not over tighten screws.
- Page 7 step 2: attach right center frame (H1) x 2 (H3) x 2 wooden dowel 1/4” x 1-1/6” bolt (H4) x 2 (H5) x 2 (H6) x 1 lock washer washer allen wrench 2.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place.
- Page 8 step 3: position left center frame (H1) x 2 wooden dowel 3.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out.
- Page 9 step 4: position rear rail (H1) x 2 wooden dowel 4.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. 4.2. When installing lower rail (6) gently pull left center frame (3) away from right center frame (4).
- Page 10 step 5. attach left and right center frames, rear rail and upper rails (H3) x 2 (H2) x 6 1/4” x 1-1/6” bolt 1-1/2” pan-head screw (H4) x 2 (H5) x 2 (H6) x 1 lock washer washer allen wrench 5.1.
- Page 11 step 6: attach side frames (H1) x 4 (H3) x 4 wooden dowel 1/4” x 1-1/6” bolt (H4) x 4 (H5) x 4 (H6) x 1 lock washer washer allen wrench 6.1. Carefully tap small wooden dowels into place. Leave 1/2” of the dowels sticking out. Carefully tap small wooden dowels into place.
- Page 12 step 7: attach upper and lower shelves (H3) x 16 (H6) x 1 1/4” x 1-1/6” bolt allen wrench 7.1. Align bolts with pre-drilled holes. 7.2. Do not over tighten bolts.
- Page 13 step 8: install anti-tip kit (H9) Position against wall (H8) Mark position of strap hole on Mark position of strap hole on wall wall (H5) Drill 1/4’’ hole Tap in wall anchor (H7) Fasten anti-tip strap Fasten anti-tip strap with flat-head screw provided with flat-head screw provided (H10) (H5)
- Page 14 1. This unit has been designed for the weight shown. Exceeding this recommended weight could result in excessive “sagging” of the top. Extreme overloading can cause failure of the top and possible injury. 2. Furniture Care Instructions: Dust with a clean, lint-free cloth. Use a spray furniture polish as needed. QUESTIONS? Just call 1-855-MYTGTHOME (855-698-4846) for parts and service.
- Page 15 © 2019 Target. The Bullseye Design is a trademark of Target Brands, Inc. All rights reserved.
