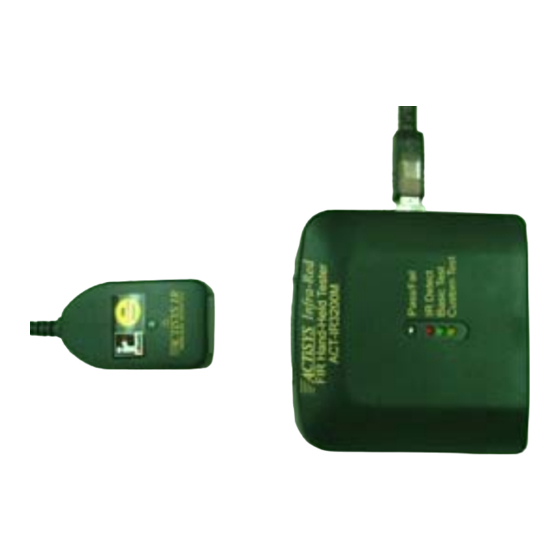

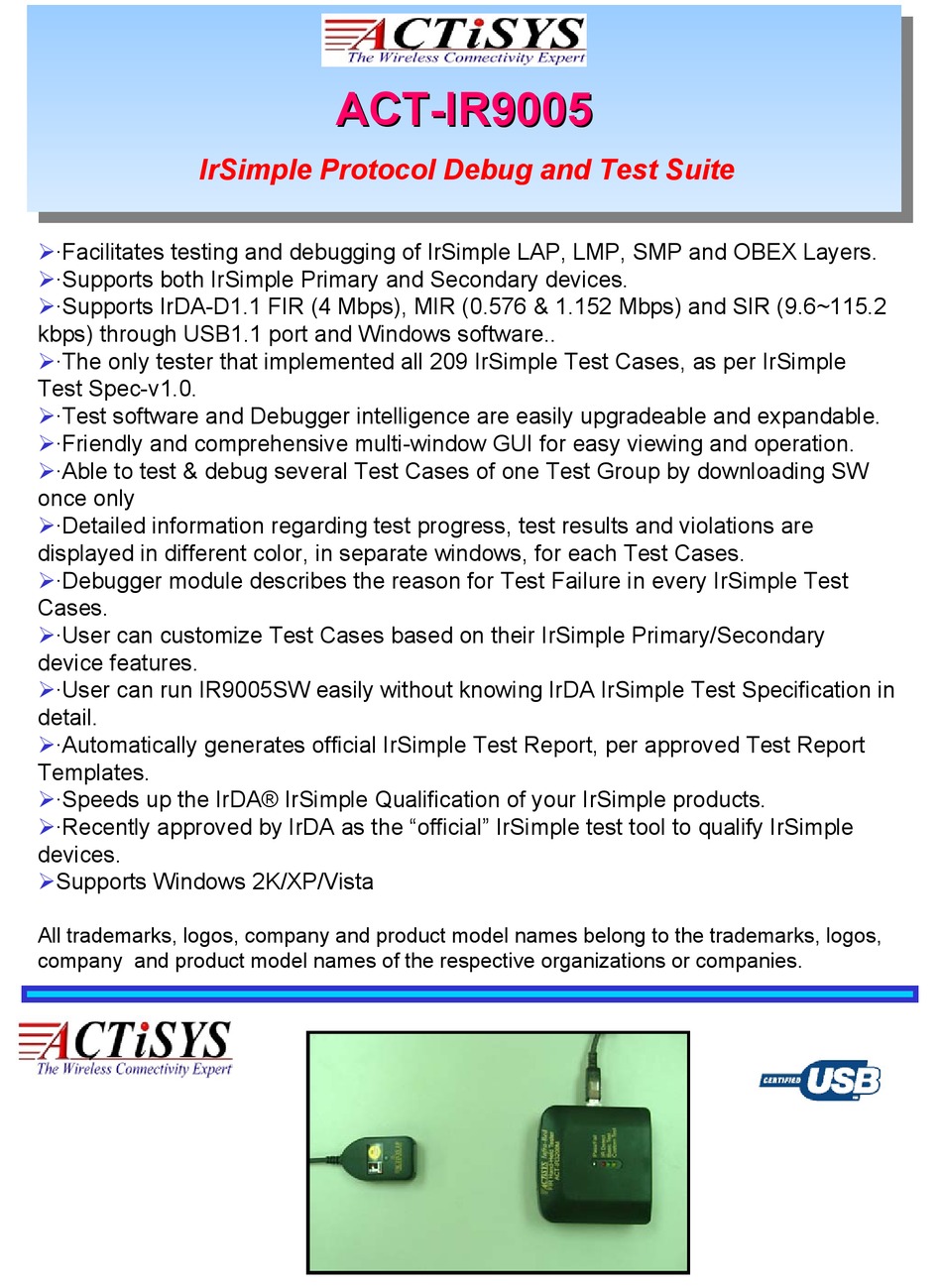

ACTiSYS IR9005 Specifications

IrSimple Protocol Debug and Test Suite

·Facilitates testing and debugging of IrSimple LAP, LMP, SMP and OBEX Layers.
·Supports both IrSimple Primary and Secondary devices.
·Supports IrDA-D1.1 FIR (4 Mbps), MIR (0.576 & 1.152 Mbps) and SIR (9.6~115.2
kbps) through USB1.1 port and Windows software..
·The only tester that implemented all 209 IrSimple Test Cases, as per IrSimple
Test Spec-v1.0.
·Test software and Debugger intelligence are easily upgradeable and expandable.
·Friendly and comprehensive multi-window GUI for easy viewing and operation.
·Able to test & debug several Test Cases of one Test Group by downloading SW
once only
·Detailed information regarding test progress, test results and violations are
displayed in different color, in separate windows, for each Test Cases.
·Debugger module describes the reason for Test Failure in every IrSimple Test
Cases.
·User can customize Test Cases based on their IrSimple Primary/Secondary
device features.
·User can run IR9005SW easily without knowing IrDA IrSimple Test Specification in
detail.
·Automatically generates official IrSimple Test Report, per approved Test Report
Templates.
·Speeds up the IrDA® IrSimple Qualification of your IrSimple products.
·Recently approved by IrDA as the "official" IrSimple test tool to qualify IrSimple
devices.
Supports Windows 2K/XP/Vista
All trademarks, logos, company and product model names belong to the trademarks, logos,
company and product model names of the respective organizations or companies.
