Configuration

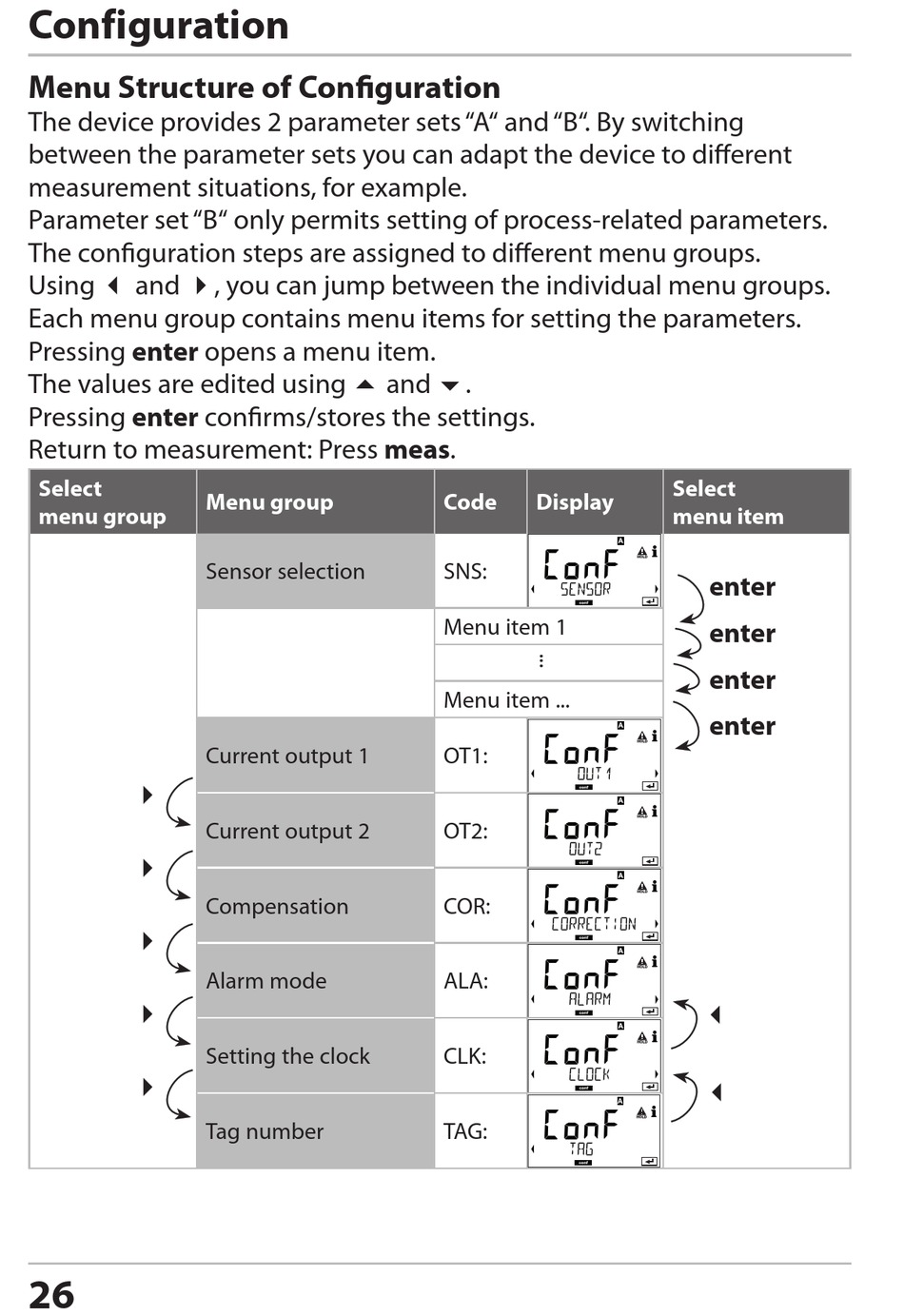

Menu Structure of Configuration

The device provides 2 parameter sets "A" and "B". By switching
between the parameter sets you can adapt the device to different
measurement situations, for example.
Parameter set "B" only permits setting of process-related parameters.
The configuration steps are assigned to different menu groups.
Using  and , you can jump between the individual menu groups.
Each menu group contains menu items for setting the parameters.
Pressing enter opens a menu item.
The values are edited using  and .
Pressing enter confirms/stores the settings.
Return to measurement: Press meas.
Select
menu group





26
Menu group
Sensor selection
Current output 1
Current output 2
Compensation
Alarm mode
Setting the clock
Tag number
Code Display
SNS:
Menu item 1
Menu item ...
OT1:
OT2:
COR:
ALA:
CLK:
TAG:
Select
menu item
enter
enter
enter
enter


