Summary of Contents for EK-Quantum Torsion A60

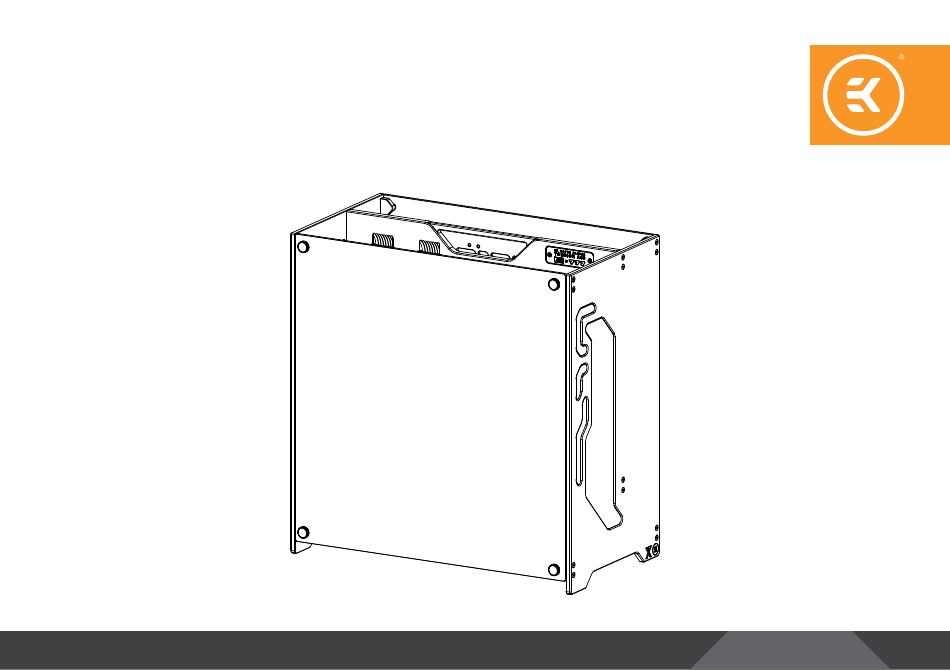

  • Page 1 EK-Quantum Torsion A60 USER GUIDE...
  • Page 2 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, or their installation.
  • Page 3: Table Of Contents

    TABLE OF CONTENTS MODELS UNPACKING THE BOX PC CHASSIS INFORMATION BOX CONTENTS DISTRIBUTION PLATE MAIN PARTS AND TECHNICAL SPECIFICATIONS BLACK EDITION SILVER EDITION PREPARING THE PC CHASSIS INSTALLING THE PC COMPONENTS INSTALLING THE POWER BUTTON (OPTIONAL) INSTALLING THE RADIATORS AND FANS INSTALLING THE CUSTOM POWER CABLES INSTALLING THE MOTHERBOARD AND CPU WATER BLOCK INSTALLING THE GPU WATER BLOCK...
  • Page 4: Models

    MODELS PC CHASSIS INFORMATION - EK-Quantum Torsion A60 - Black Limited Edition EK-Quantum Torsion A60 - Limited Edition PC case is created - EK-Quantum Torsion A60 - Silver Limited Edition especially for liquid-cooled builds. It is entirely built of CNC-milled aluminum, weighing around 22 kg.
  • Page 5: Box Contents

    Allen Key 2 mm (1 pc) Allen Key 2.5 mm (1 pc) PCI-E Riser cable 4.0 (1 pc) Torsion A60 - Power button (1 pc) Universal Mounting Mechanism You may not need all the screws, mounting mechanism is universal! - EAN; 105779 (Black edition) - EAN;105778 (Silver edition)
  • Page 6: Distribution Plate Main Parts And Technical Specifications

    5154 OR 52 x 3 NBR50 103314 Pump cover (Bl.elox) 100663 EK - Badge 103312 D5 Pump cover screw (Bl. Chrome) 3831109895269 EK-Quantum Torque Push-In Adapter 102639 Quantum Plug (Nickel) 104931 Distribution plate (Bottom) 104932 Distribution plate (Top) 104599 Mylar sticker...
  • Page 7: Silver Edition

    5154 OR 52 x 3 NBR50 103314 Pump cover (Nat. Elox)) 100663 EK - Badge 103312 D5 Pump cover screw (Nickel) 3831109895269 EK-Quantum Torque Push-In Adapter 102639 Quantum Plug (Nickel) 104931 Distribution plate (Bottom) 104932 Distribution plate (Top) 104599 Mylar sticker...
  • Page 8: Preparing The Pc Chassis

    PREPARING THE PC CHASSIS STEP 1 Before installing the PC component, the side panel/glass THUMB NUT must be removed. Unscrew four (4) thumb nuts (by hand) and carefully remove the glass from the chassis. Store the glass and thumb nuts for later use. Make sure the SIDE PANEL/ side glass is stored in a suitable place.
  • Page 9 STEP 2 Pick up the Power button from the provided mounting bag and insert POWER BUTTON it into the holder. To secure the power button, use a nut. Do not use excessive force. POWER BUTTON NUT POWER BUTTON HOLDER STEP 2 STEP 3 Secure the Power button to the PC Chassis with two saved M4 x 8 DIN7991 Screws.
  • Page 10: Installing The Radiators And Fans

    INSTALLING THE RADIATORS AND FANS THUMB STEP 1 In order to install the radiators, the side panel must be removed. Unscrew four (4) thumb nuts by hand and remove the side panel from the PC Chassis. SIDE PANEL STEP 1 STEP 2 Rotate the PC Chassis so that the distribution plate will be on the bottom.
  • Page 11 STEP 2.1 UNSCREW If using the bottom radiator, we recommend removing the marked side panel mount. Unscrew two (2) marked screws using the Allen Key 2.5 mm. Save the parts for later use. After attaching the radiator to the PC Chassis, reattach the side panel mount. For this step, you will need: Allen Key 2.5mm SIDE PANEL...
  • Page 12 STEP 4 Install the Torque Fittings and Push-in adapters on the radiator. For easier push-in adapters’ installation, EK recommends lubricating the O-rings with a few drops of coolant or water. PUSH-IN FITTING 14 EK-TORQUE 90° FITTING STEP 4 STEP 5 After installing the Radiators, reattach the side panel to the PC THUMB Chassis.
  • Page 13: Installing The Custom Power Cables

    INSTALLING THE CUSTOM POWER CABLES EK-Quantum Torsion A60 allows you to achieve a clean, clutter-free build that shows off your cables. The motherboard tray holds grooves for all the important power cables: - Twin 8-pin CPU EPS cables - Up to three 8-pin PCIe power cables for the GPU or 12VHPWR...
  • Page 14: Installing The Gpu Water Block

    INSTALLING THE GPU WATER BLOCK STEP 1 The GPU vertical bracket is already mounted in the PC Chassis. Before M2.5 x 4 mounting the water-cooled GPU, it is necessary to install the PCI-E DIN7985 Riser cable 4.0 (provided with the PC Chassis). Attach it with two (2) SCREW mounting screws (M2.5 x 4 DIN7985).
  • Page 15: Installing The Psu

    STEP 3 Connect the water-cooled GPU to the PCI-E Riser cable. STEP 3 INSTALLING THE PSU Position the Power Supply into the PC Chassis and secure it with provided mounting screws (UNC 6/32x1/2). Do not use excessive force! For this step, you will need: Screw UNC Allen Key 2.5 mm 6/32x1/2 (4 pcs)
  • Page 16: Distribution Plate Configuration

    DISTRIBUTION PLATE CONFIGURATION To complete your loop, all ports must be used as marked in the image. FILL All remaining unused ports (Fill and drain port) must be closed with supplied plugs. Only one INLET and one OUTLET port for the GPU connection can be used, while all other INLET and OUTLET GPU ports must be closed with G1/4 plugs (enclosed in the package).
  • Page 17: Installing The Fittings And Tubing

    INSTALLING THE FITTINGS AND TUBING After the hardware parts are attached, the fittings and tubing have to be installed. EK Recommends using the EK-Torque series fittings and EK-Rigid (hard) tubing. Make sure all the unused ports are closed with the provided EK-Plugs G1/4.
  • Page 18: Testing The Loop

    TESTING THE LOOP To make sure the installation of EK components was successful, we recommend you perform a leak test for 24 hours. When your loop is complete and filled with coolant, connect the pump to a PSU outside of your system. Do not connect power to any of the other components.
  • Page 19: Support And Service

    SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “TECHNICAL SPECIFICATIONS AND PRODUCT PARTS” where you can find the EAN number of each part you might need.
