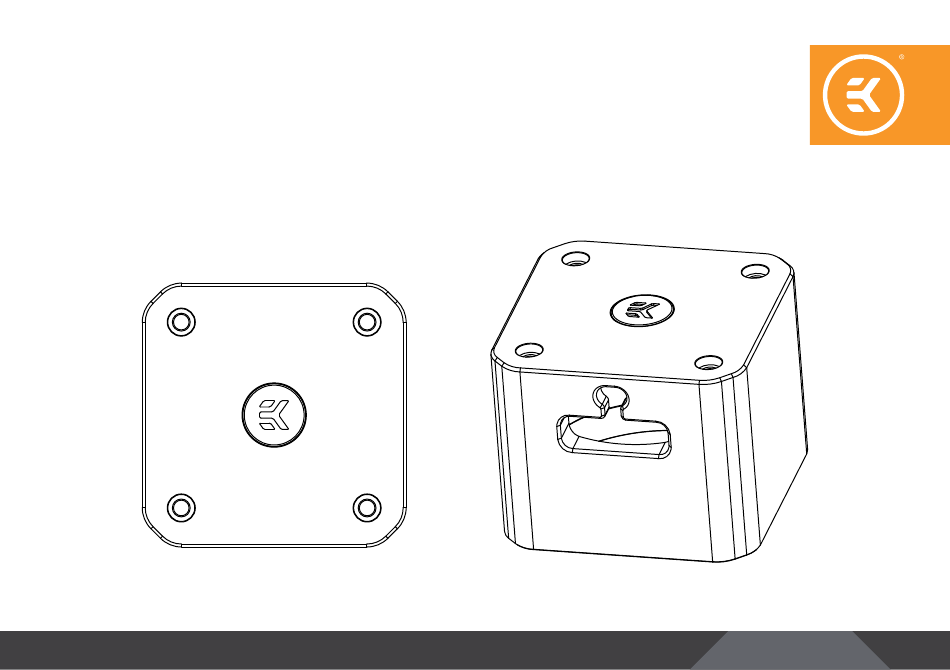

- Page 1 EK-Quantum Convection D5 USER GUIDE...
- Page 2 This product is intended for installation only by expert users. Please consult with a qualified technician for installation. Improper installation may result in damage to your equipment. EK Water Blocks assumes no liability whatsoever, expressed or implied, for the use of these products, nor their installation.
-
Page 3: Table Of Contents
TABLE OF CONTENTS BOX CONTENTS REQUIRED TOOLS D5 COVER DIMENSIONS MAIN PARTS PREPARING THE PUMP ATTACHING THE PUMP COVER SUPPORT AND SERVICE SOCIAL MEDIA - 3 -... -
Page 4: Box Contents
BOX CONTENTS Mounting Mechanism – You may not need all the screws, mounting mechanism is universal! Screw M4x62 (4 pcs) D5 Pump cover (1 pc) REQUIRED TOOLS Allen Key 2.5. mm - 4 -... -
Page 5: D5 Cover Dimensions
D5 COVER DIMENSIONS 71 mm - 5 -... -
Page 6: Main Parts
MAIN PARTS Position EAN Description Quantity 100663 EK Badge 103312 D5 Cover Screw M4x62 - Black Chrome 103313 D5 Cover Screw M4x62 - Nickel 103314 D5 pump Cover - Black 103315 D5 pump cover - Nickel 103571 D5 pump Cover - Silver - 6 -... -
Page 7: Preparing The Pump
PREPARING THE PUMP STEP 1 Unscrew the four (4) marked screws and remove the original ORIGINAL SCREW pump holder. Store the holder and screws for possible reuse without D5 Cover. PUMP HOLDER STEP 1 STEP 2 4-PIN MOLEX CONNECTOR 3-PIN FAN CONNECTOR UNINSTALLING MOLEX CONNECTOR* 1. -
Page 8: Attaching The Pump Cover
ATTACHING THE PUMP COVER STEP 1 Insert the pump cables through D5 Pump cover and place the cover over D5 pump. Make sure that holes are aligned. Secure the D5 M4 x 62 SCREW Pump cover using M4 x 62 mm screws and 2.5 mm Allen Key. Do not use excessive force while tightening the screws! PUMP D5 COVER... -
Page 9: Support And Service
SUPPORT AND SERVICE In case you need assistance or wish to order spare parts or a new mounting mechanism, please contact: https://www.ekwb.com/customer-support/ For spare parts orders, refer to the page with “MAIN PARTS” where you can find the EAN number of each part you might need. Include the EAN number with quantity in your request.
