4 C
ONNECTOR AND JUMPER DESCRIPTION
4.1

Product view

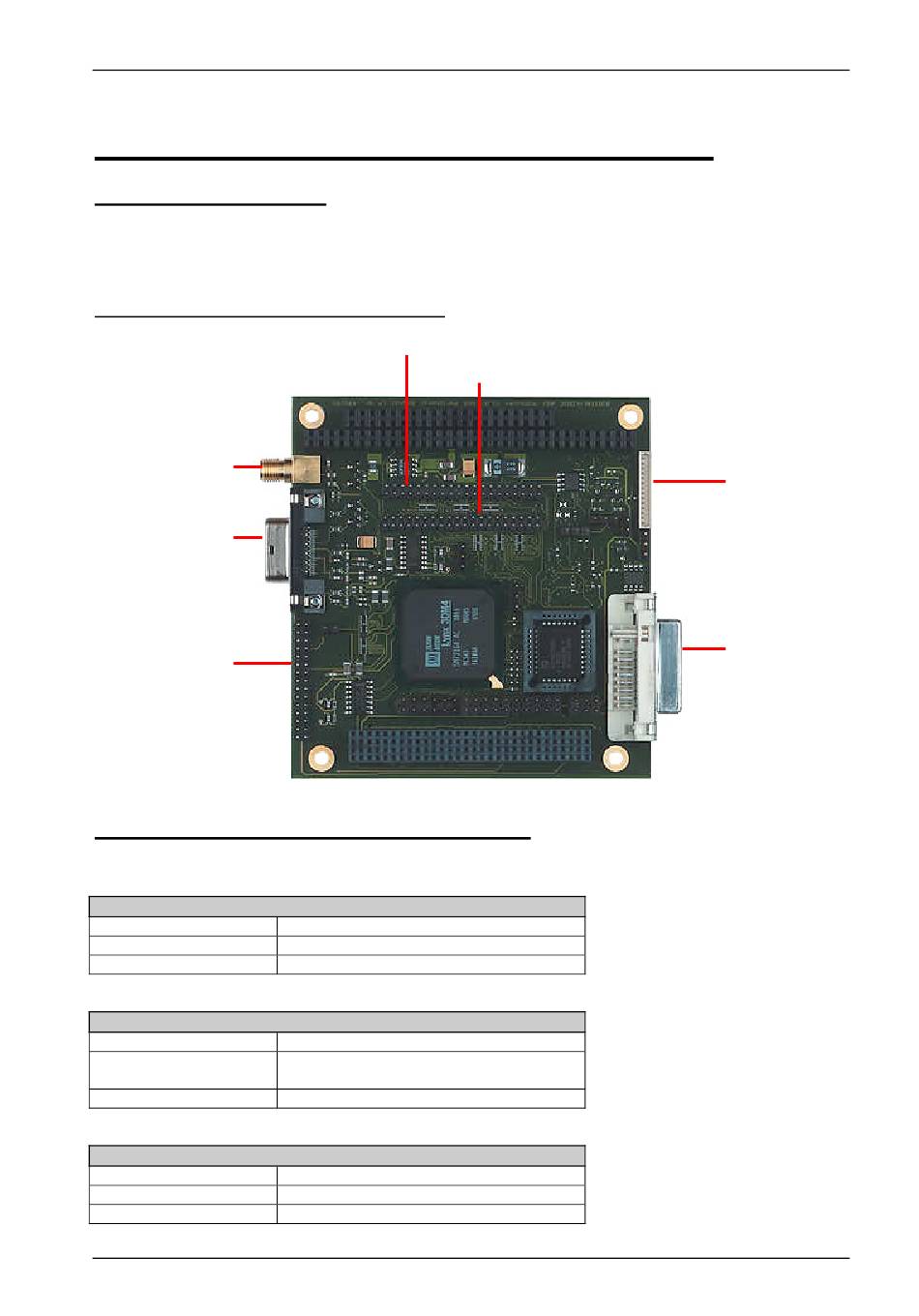

The following picture shows a front view from MSMV104+ Version 1.0. The connectors references and
position are the same on revision 1.2.
The connector references are further explained in section 4.2
Figure 5.1a: Interface connectors on MSMV104+
TV-Out SMB J2
VGA CRT P1
ZV-Port J15
4.2

Connector references and types

Please refer to figure XXX for detailed position of the referenced connectors.
VGA CRT
Type
Reference
LCD Dual
Type
Reference
LVDS
Type
Reference
Artisan Technology Group - Quality Instrumentation ... Guaranteed | (888) 88-SOURCE | www.artisantg.com
Native LCD1 X1
DSUB-15 f
P1
Header 40 (pin to pin compatible with
other 40 pin DLAG LCD product)
X1 and X2
Molex xxxxxx
J4
10
Native LCD2 X2
MSMV104+ manual V1.0
LVDS Connector J4
DVI Connector P2
