Herman Miller Exclave Meeting Table Installation And Disassembly page 9

EXTD.
AG

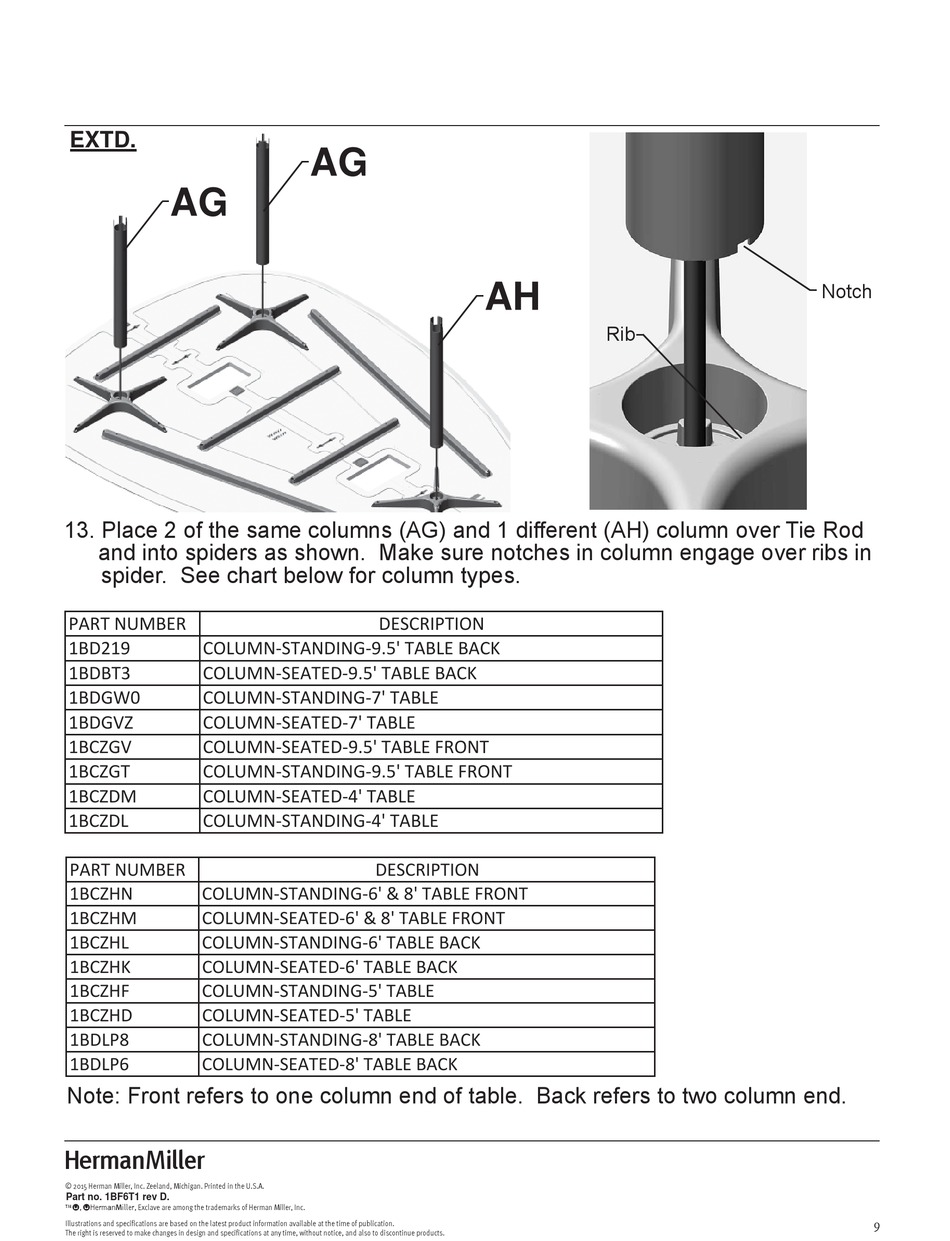

13. Place 2 of the same columns (AG) and 1 different (AH) column over Tie Rod
and into spiders as shown. Make sure notches in column engage over ribs in
spider. See chart below for column types.
PART NUMBER
1BD219 COLUMN-STANDING-9.5' TABLE BACK
1BDBT3 COLUMN-SEATED-9.5' TABLE BACK
1BDGW0 COLUMN-STANDING-7' TABLE
1BDGVZ COLUMN-SEATED-7' TABLE
1BCZGV COLUMN-SEATED-9.5' TABLE FRONT
1BCZGT COLUMN-STANDING-9.5' TABLE FRONT
1BCZDM COLUMN-SEATED-4' TABLE
1BCZDL COLUMN-STANDING-4' TABLE
PART NUMBER
1BCZHN COLUMN-STANDING-6' & 8' TABLE FRONT
1BCZHM COLUMN-SEATED-6' & 8' TABLE FRONT
1BCZHL COLUMN-STANDING-6' TABLE BACK
1BCZHK COLUMN-SEATED-6' TABLE BACK
1BCZHF COLUMN-STANDING-5' TABLE
1BCZHD COLUMN-SEATED-5' TABLE
1BDLP8 COLUMN-STANDING-8' TABLE BACK
1BDLP6 COLUMN-SEATED-8' TABLE BACK
Note: Front refers to one column end of table. Back refers to two column end.
Z
© 2015 Herman Miller, Inc. Zeeland, Michigan. Printed in the U.S.A.
Part no. 1BF6T1 rev D.
Y, L, Exclave are among the trademarks of Herman Miller, Inc.
TM
Illustrations and specifications are based on the latest product information available at the time of publication.
The right is reserved to make changes in design and specifications at any time, without notice, and also to discontinue products.
AG
AH
DESCRIPTION
DESCRIPTION
Rib
Notch
9
